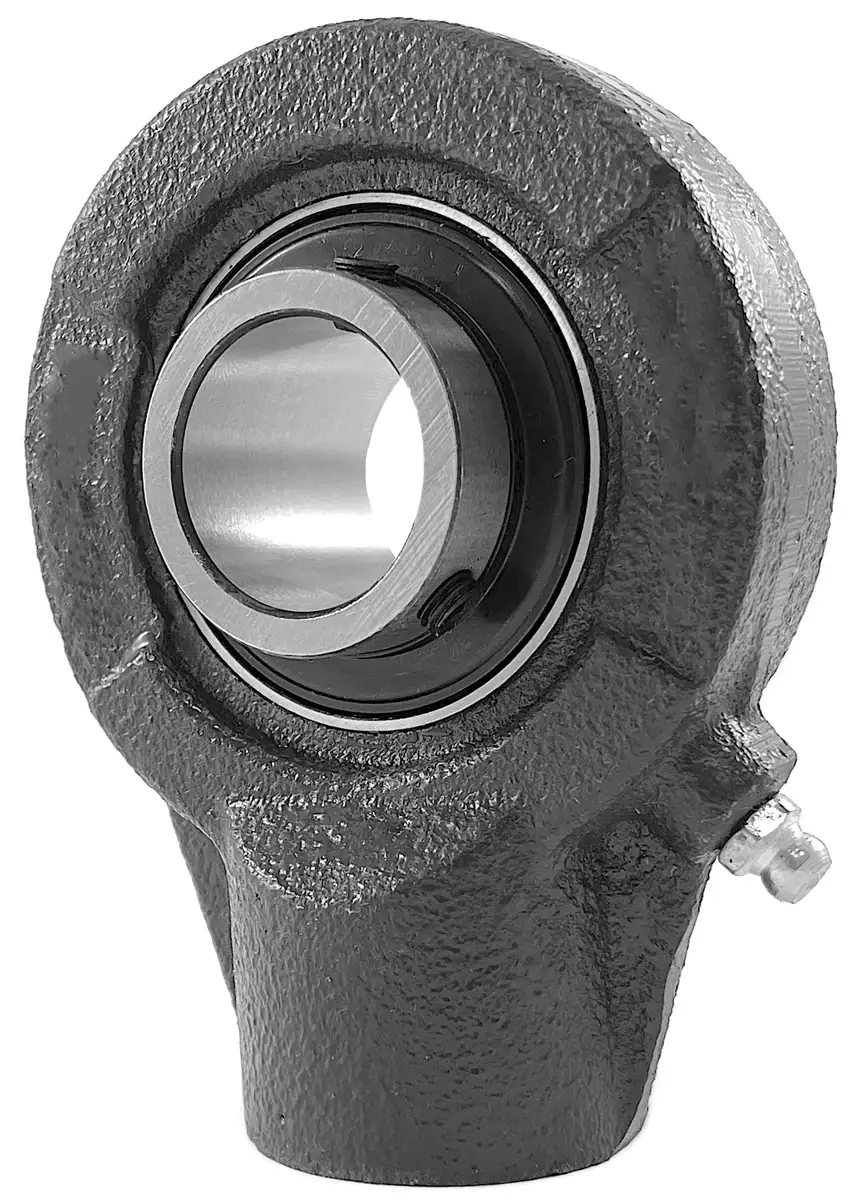

UCHA201-8 Bearing | 1/2" Hanger Bearing

UCHA201-8 bearing is a 1/2" bore normal-duty hanger bearing that utilizes set screws to secure to a 1/2" shaft. UCHA201-8 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UCHA201-8 bearing with a 1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCHA201-8 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. Our UCHA201-8 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCHA201-8 bearings, and we will be happy to assist you!

UCHA201-8 Hanger Bearing Dimensions

• Part #: UCHA201-8
• Shaft Diameter (d): 1/2"
• Dimension (A): 2.52"
• Dimension (W): 3.78"
• Dimension (C): 0.00"
• Dimension (H): 2.52"
• Dimension (L): 1.57"
• Dimension (D): 0.75"
• Dimension (K): PF 3/4
• Dimension (Bi): 1.2205"
• Dimension (N): 0.5000"
• Dimension (M): 0.7205"
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: UC 201-8
• Housing Number: HA 204
• Weight (LBS): 1.7
