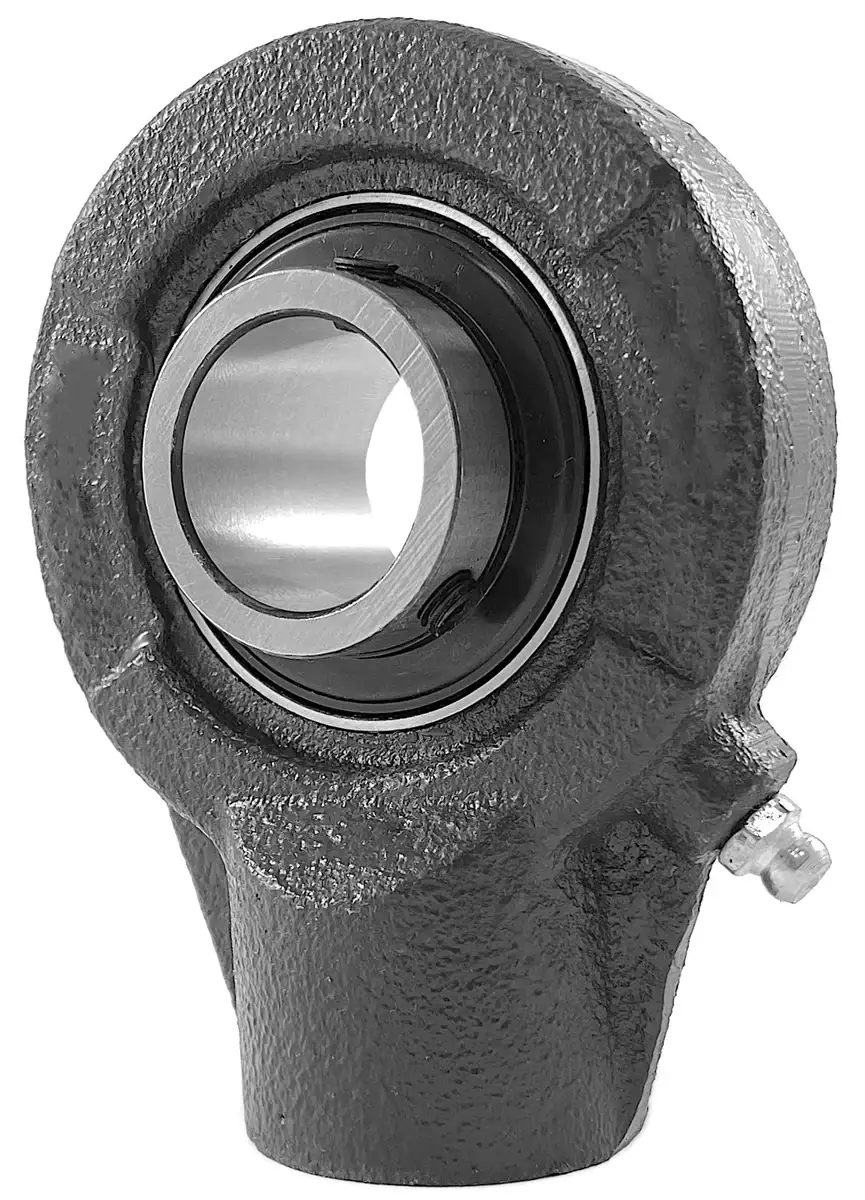

UCHA210 Bearing | 50mm Hanger Bearing

UCHA210 bearing is a 50mm bore normal-duty hanger bearing that utilizes set screws to secure to a 50mm shaft. UCHA210 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UCHA210 bearing with a 50mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCHA210 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. Our UCHA210 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCHA210 bearings, and we will be happy to assist you!

UCHA210 Hanger Bearing Dimensions

• Part #: UCHA210
• Shaft Diameter (d): 50mm
• Dimension (A): 119.0mm
• Dimension (W): 142.5mm
• Dimension (C): 5.0mm
• Dimension (H): 83.0mm
• Dimension (L): 48.0mm
• Dimension (D): 21.0mm
• Dimension (K): PF 1
• Dimension (Bi): 51.6mm
• Dimension (N): 19.0mm
• Dimension (M): 32.6mm
• Dynamic Load Rating (kN): 35.00
• Static Load Rating (kN): 23.71
• Bearing Insert: UC 210
• Housing Number: HA 210
• Weight (kg): 2.1
