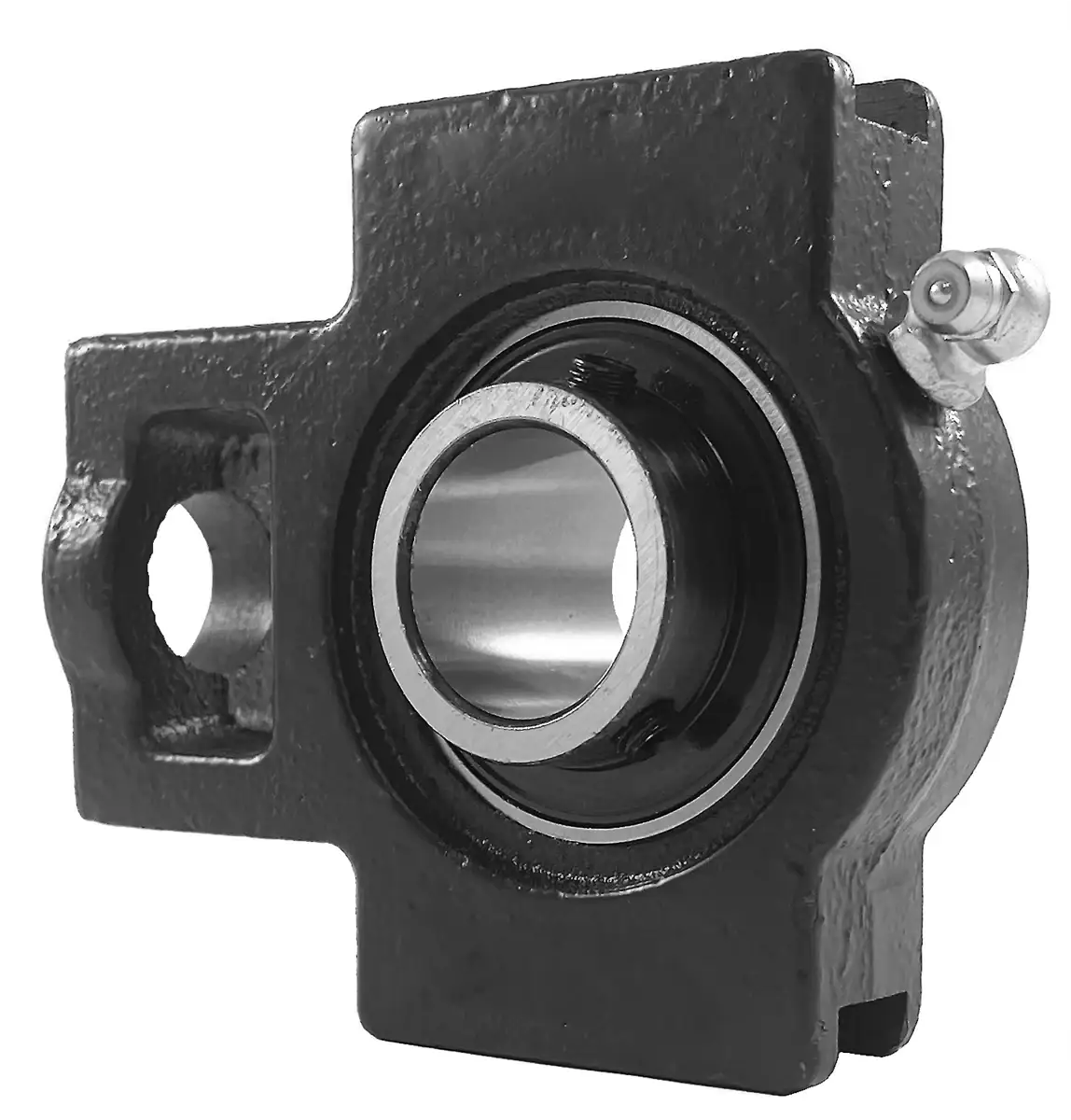

UCST211-32 Bearing | 2" Take-Up Bearing

UCST211-32 bearing is a 2" bore normal-duty take-up bearing that utilizes set screws to secure to a 2" shaft. UCST211-32 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UCST211-32 bearing with a 2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCST211-32 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. Our UCST211-32 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCST211-32 bearings, and we will be happy to assist you!

UCST211-32 Take-Up Bearing Dimensions

• Part #: UCST 211-32
• Shaft Diameter (d): 2"
• Dimension (O): 0.98"
• Dimension (G): 0.75"
• Dimension (P): 4.00"
• Dimension (Q): 2.50"
• Dimension (S): 1.38"
• Dimension (B): 3.75"
• Dimension (K): 1.06"
• Dimension (E): 5.13"
• Dimension (A): 5.75"
• Dimension (W): 6.75"
• Dimension (J): 2.50"
• Dimension (L): 1.50"
• Dimension (H): 4.18"
• Dimension (Bi): 2.1890"
• Dimension (N): 0.8740"
• Dimension (M): 1.3150"
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608
• Bearing Insert: UC 211-32
• Housing Number: ST 211
• Weight (LBS): 9.2
