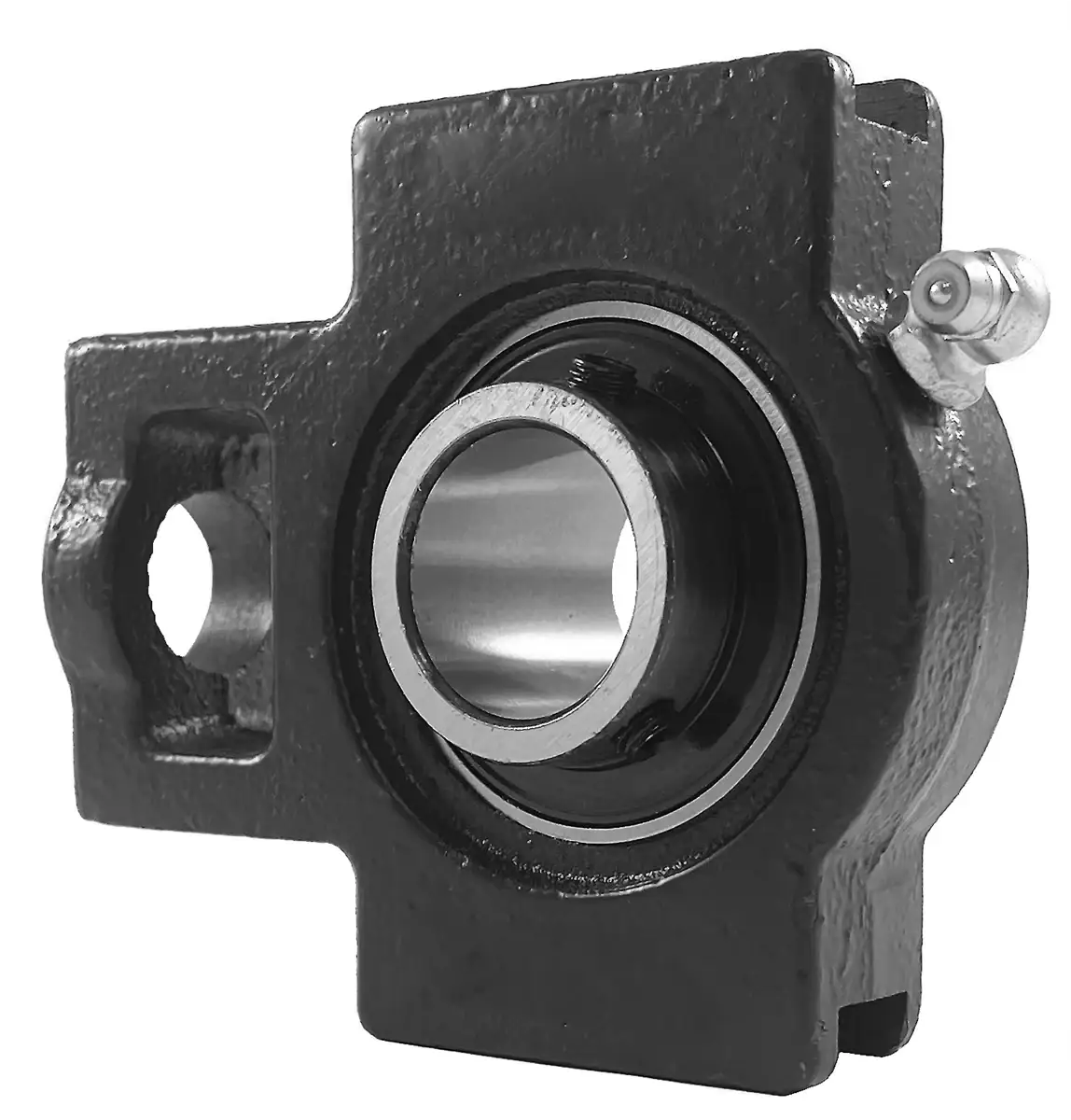

UCST212 Bearing | 60mm Take-Up Bearing

UCST212 bearing is a 60mm bore normal-duty take-up bearing that utilizes set screws to secure to a 60mm shaft. UCST212 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UCST212 bearing with a 60mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCST212 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. Our UCST212 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCST212 bearings, and we will be happy to assist you!

UCST212 Take-Up Bearing Dimensions

• Part #: UCST 212
• Shaft Diameter (d): 60mm
• Dimension (O): 32.0mm
• Dimension (G): 19.0mm
• Dimension (P): 102.0mm
• Dimension (Q): 64.0mm
• Dimension (S): 35.0mm
• Dimension (B): 102.0mm
• Dimension (K): 27.0mm
• Dimension (E): 130.0mm
• Dimension (A): 146.0mm
• Dimension (W): 194.0mm
• Dimension (J): 64.0mm
• Dimension (L): 42.0mm
• Dimension (H): 119.0mm
• Dimension (Bi): 65.1mm
• Dimension (N): 25.4mm
• Dimension (M): 39.7mm
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Bearing Insert: UC 212
• Housing Number: ST 212
• Weight (kg): 5.1
