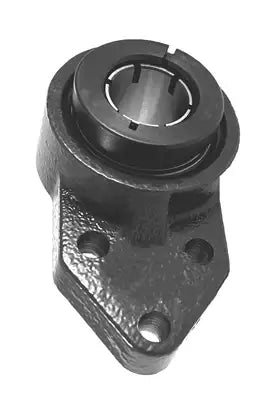

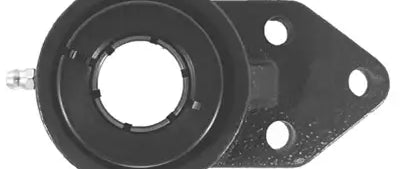

UEFB204-12 Bearing | 3/4" 3-Bolt Flange Bearing

UEFB204-12 bearing is a 3/4" bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 3/4" shaft. UEFB204-12 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFB204-12 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFB204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFB204-12 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFB204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFB204-12 bearings, and we will be happy to assist you!

UEFB204-12 Bearing Dimensions

• Part #: UEFB 204-12
• Shaft Diameter (d): 3/4"
• Dimension (A): 4.33"
• Dimension (H): 1.65"
• Dimension (E): 1.26"
• Dimension (J): 1.06"
• Dimension (I): 0.59"
• Dimension (G): 0.51"
• Dimension (L): 1.00"
• Dimension (S): 0.39"
• Dimension (B): 2.44"
• Dimension (F): 2.05"
• Dimension (Z): 1.38"
• Dimension (Bi): 1.2992"
• Dimension (N): 0.5000"
• Dimension (M): 0.7205"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: UE 204-12
• Housing Number: FB 204
• Weight (LBS): 1.5
