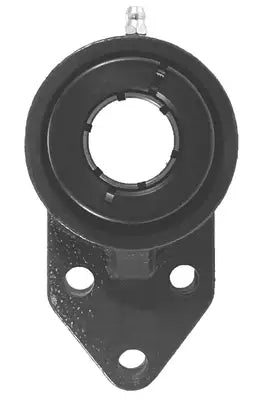

UEFBS209-27 Bearing | 1-11/16" 3-Bolt Flange Bearing

UEFBS209-27 bearing is a 1-11/16" bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 1-11/16" shaft. UEFBS209-27 flange bearings are designed with an inch-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFBS209-27 bearing with a 1-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFBS209-27 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFBS209-27 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFBS209-27 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFBS209-27 bearings, and we will be happy to assist you!

UEFBS209-27 Bearing Dimensions

• Part #: UEFBS 209-27
• Shaft Diameter (d): 1-11/16"
• Dimension (A): 6.85"
• Dimension (H): 2.56"
• Dimension (E): 2.126"
• Dimension (J): 1.689"
• Dimension (I): 0.83"
• Dimension (G): 0.71"
• Dimension (L): 1.42"
• Dimension (S): 0.47"
• Dimension (B): 4.17"
• Dimension (F): 3.15"
• Dimension (Z): 2.06"
• Dimension (Bi): 1.9764"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 7,160
• Static Load Rating (LBS): 4,676
• Bearing Insert: UE 209-27
• Housing Number: FBS 209
• Weight (LBS): 4.4
