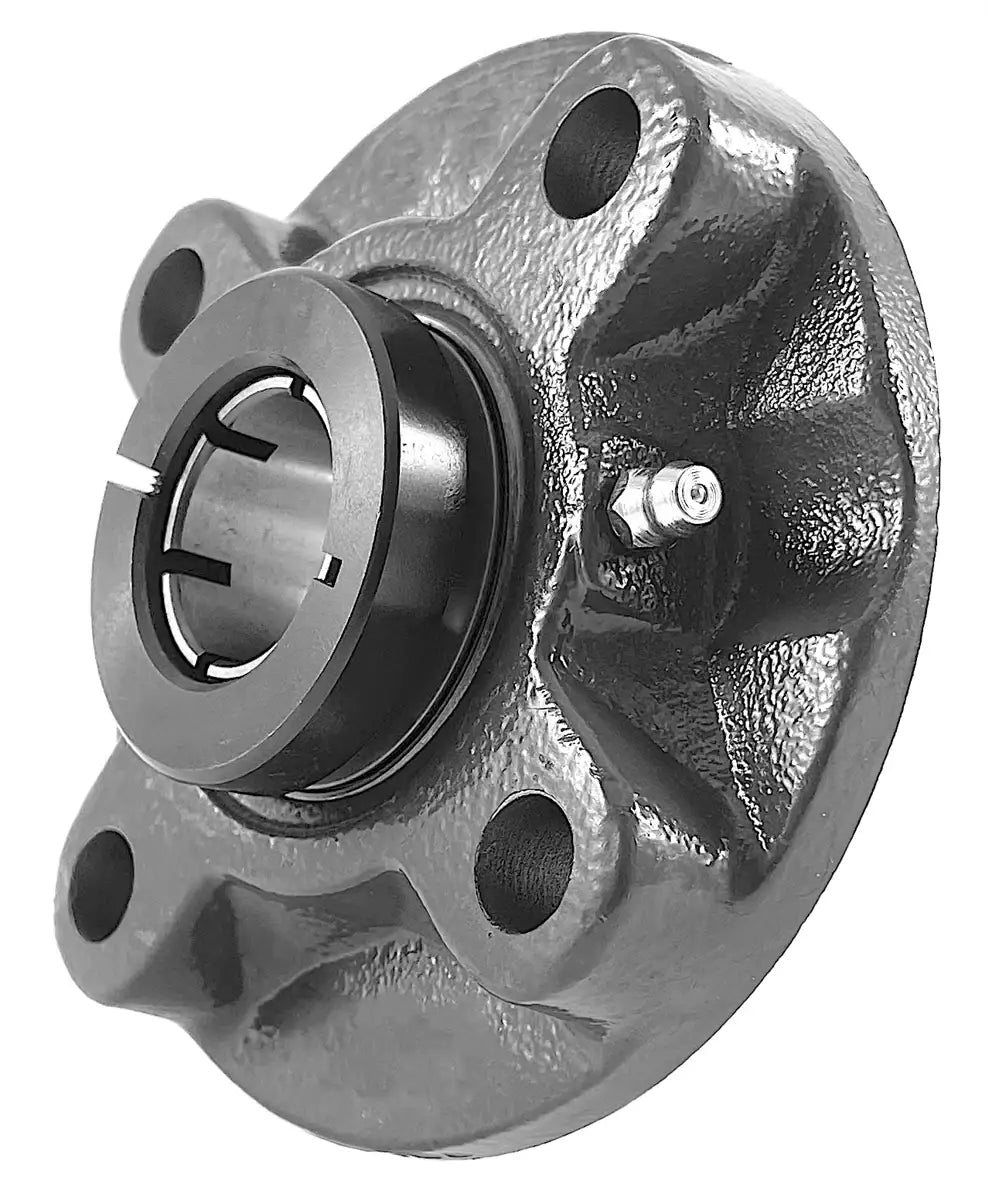

UEFC207-23 Bearing | 1-7/16" 4-Bolt Flange Bearing

UEFC207-23 bearing is a 1-7/16" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1-7/16" shaft and has a metric based housing. UEFC207-23 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFC207-23 bearing with a 1-7/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFC207-23 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFC207-23 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFC207-23 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFC207-23 bearings, and we will be happy to assist you!

UEFC207-23 Bearing Dimensions

• Part #: UEFC 207-23
• Shaft Diameter (d): 1-7/16"
• Dimension (A): 5.31"
• Dimension (P): 4.33"
• Dimension (E): 3.06"
• Dimension (I): 0.43"
• Dimension (S): 0.55"
• Dimension (J): 0.31"
• Dimension (K): 0.35"
• Dimension (G): 1.02"
• Dimension (F): 3.54"
• Dimension (Z): 1.47"
• Dimension (Bi): 1.7283"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UE 207-23
• Housing Number: FC 207
• Weight (LBS): 3.9
