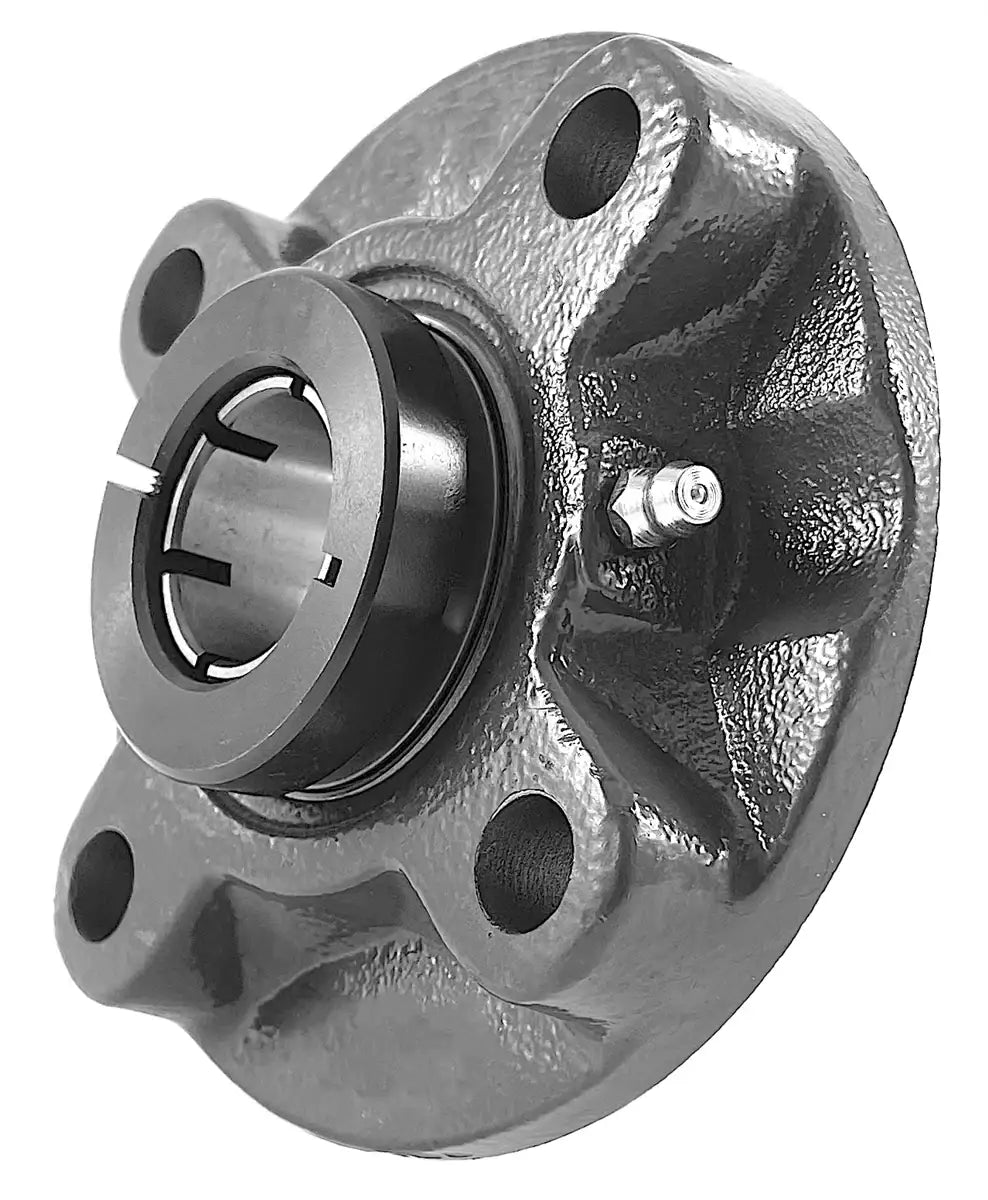

UEFC210-30 Bearing | 1-7/8" 4-Bolt Flange Bearing

UEFC210-30 bearing is a 1-7/8" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1-7/8" shaft and has a metric based housing. UEFC210-30 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFC210-30 bearing with a 1-7/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFC210-30 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFC210-30 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFC210-30 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFC210-30 bearings, and we will be happy to assist you!

UEFC210-30 Bearing Dimensions

• Part #: UEFC 210-30
• Shaft Diameter (d): 1-7/8"
• Dimension (A): 6.50"
• Dimension (P): 5.43"
• Dimension (E): 3.84"
• Dimension (I): 0.39"
• Dimension (S): 0.63"
• Dimension (J): 0.47"
• Dimension (K): 0.55"
• Dimension (G): 1.10"
• Dimension (F): 4.33"
• Dimension (Z): 1.72"
• Dimension (Bi): 2.0709"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Bolt Used: 9/16
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: UE 210-30
• Housing Number: FC 210
• Weight (LBS): 3.1
