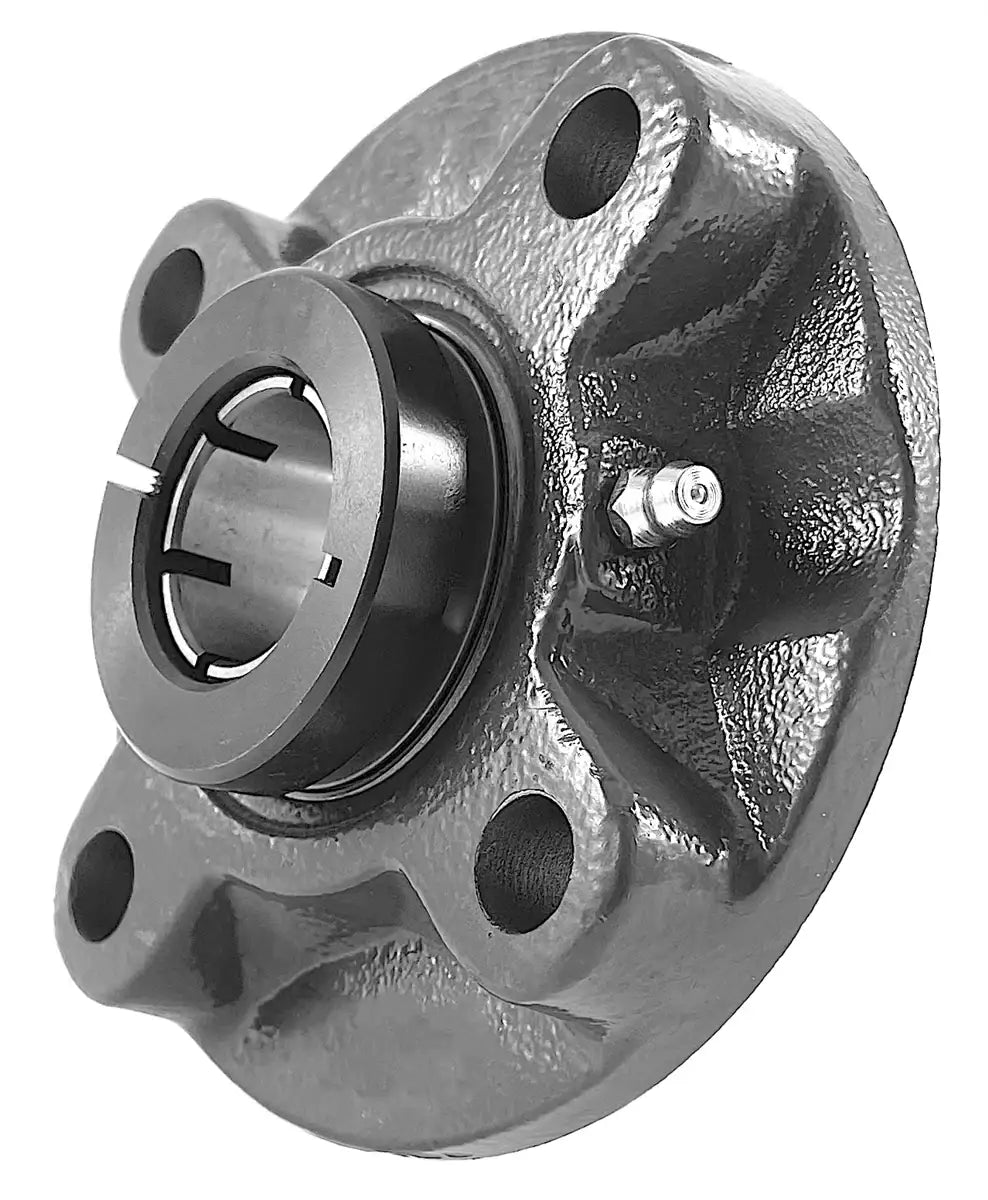

UEFC212-38 Bearing | 2-3/8" 4-Bolt Flange Bearing

UEFC212-38 bearing is a 2-3/8" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 2-3/8" shaft and has a metric based housing. UEFC212-38 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFC212-38 bearing with a 2-3/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFC212-38 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFC212-38 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFC212-38 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFC212-38 bearings, and we will be happy to assist you!

UEFC212-38 Bearing Dimensions

• Part #: UEFC 212-38
• Shaft Diameter (d): 2-3/8"
• Dimension (A): 7.68"
• Dimension (P): 6.30"
• Dimension (E): 4.45"
• Dimension (I): 0.67"
• Dimension (S): 0.75"
• Dimension (J): 0.47"
• Dimension (K): 0.59"
• Dimension (G): 1.38"
• Dimension (F): 5.32"
• Dimension (Z): 2.31"
• Dimension (Bi): 2.6220"
• Dimension (N): 1.0000"
• Dimension (M): 1.5630"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 10,720
• Static Load Rating (LBS): 7,516
• Bearing Insert: UE 212-38
• Housing Number: FC 212
• Weight (LBS): 11.0
