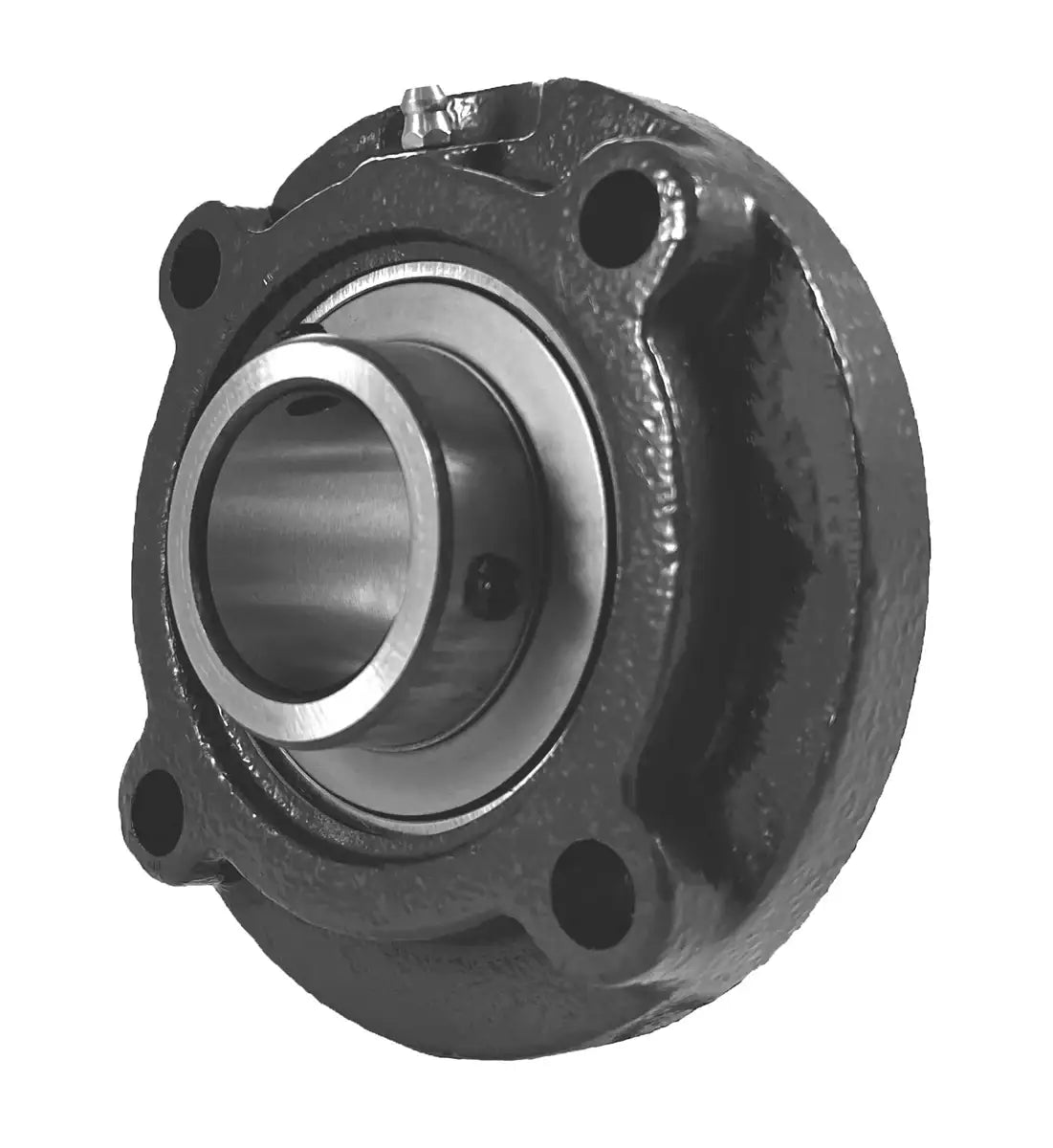

UEFCS209-28 Bearing | 1-3/4" 4-Bolt Flange Bearing

UEFCS209-28 bearing is a 1-3/4" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1-3/4" shaft and has an inch based housing. UEFCS209-28 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFCS209-28 bearing with a 1-3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFCS209-28 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFCS209-28 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFCS209-28 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFCS209-28 bearings, and we will be happy to assist you!

UEFCS209-28 Bearing Dimensions

• Part #: UEFCS209-28
• Shaft Diameter (d): 1-3/4"
• Dimension (A): 5.25"
• Dimension (P): 4.375"
• Dimension (E): 3.09"
• Dimension (I): 0.35"
• Dimension (S): 0.55"
• Dimension (J): 0.44"
• Dimension (K): 0.44"
• Dimension (G): 0.98"
• Dimension (F): 4.250"
• Dimension (Z): 1.38"
• Dimension (Bi): 1.9764"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 7,160
• Static Load Rating (LBS): 4,676
• Bearing Insert: UE 209-28
• Housing Number: FCS 209
• Weight (LBS): 4.8
