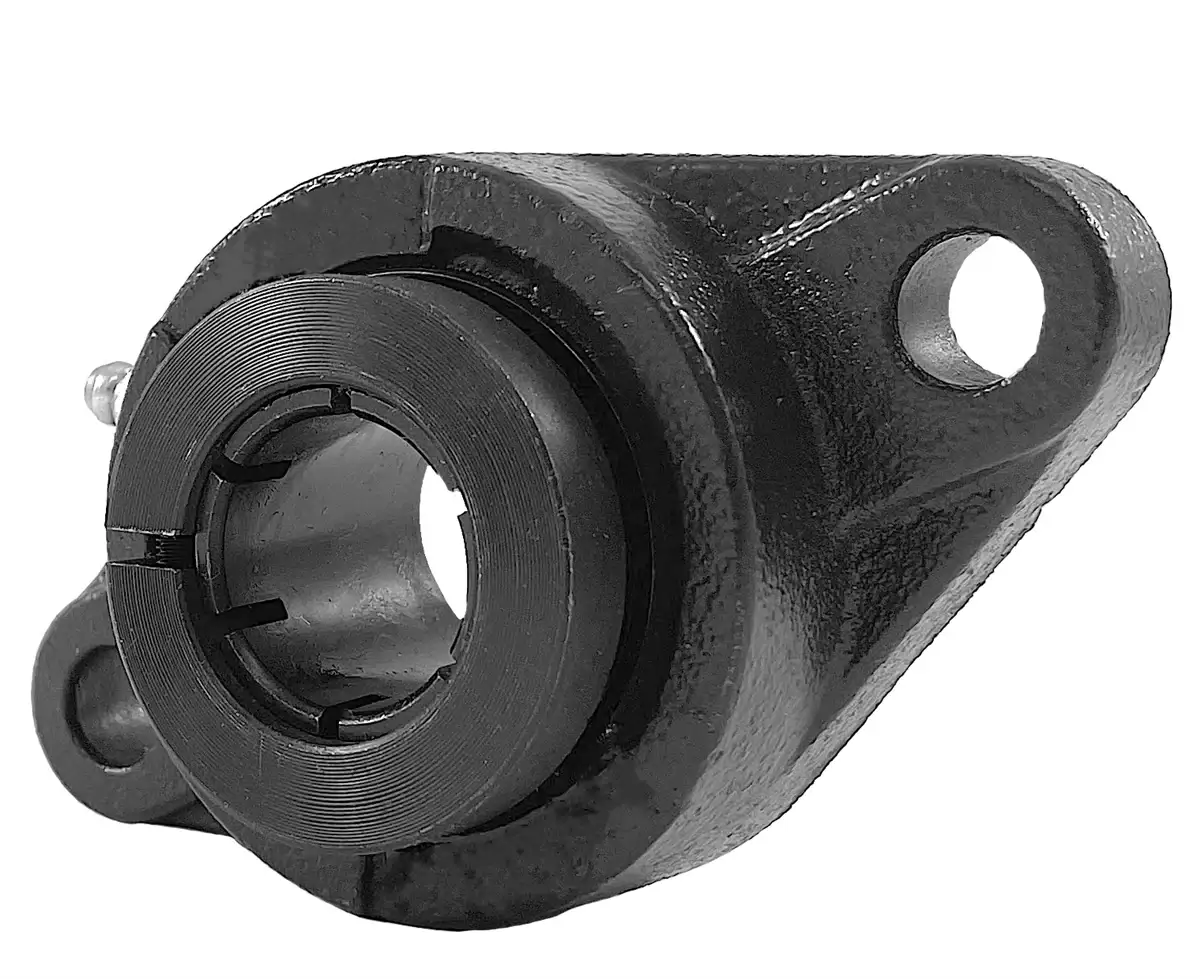

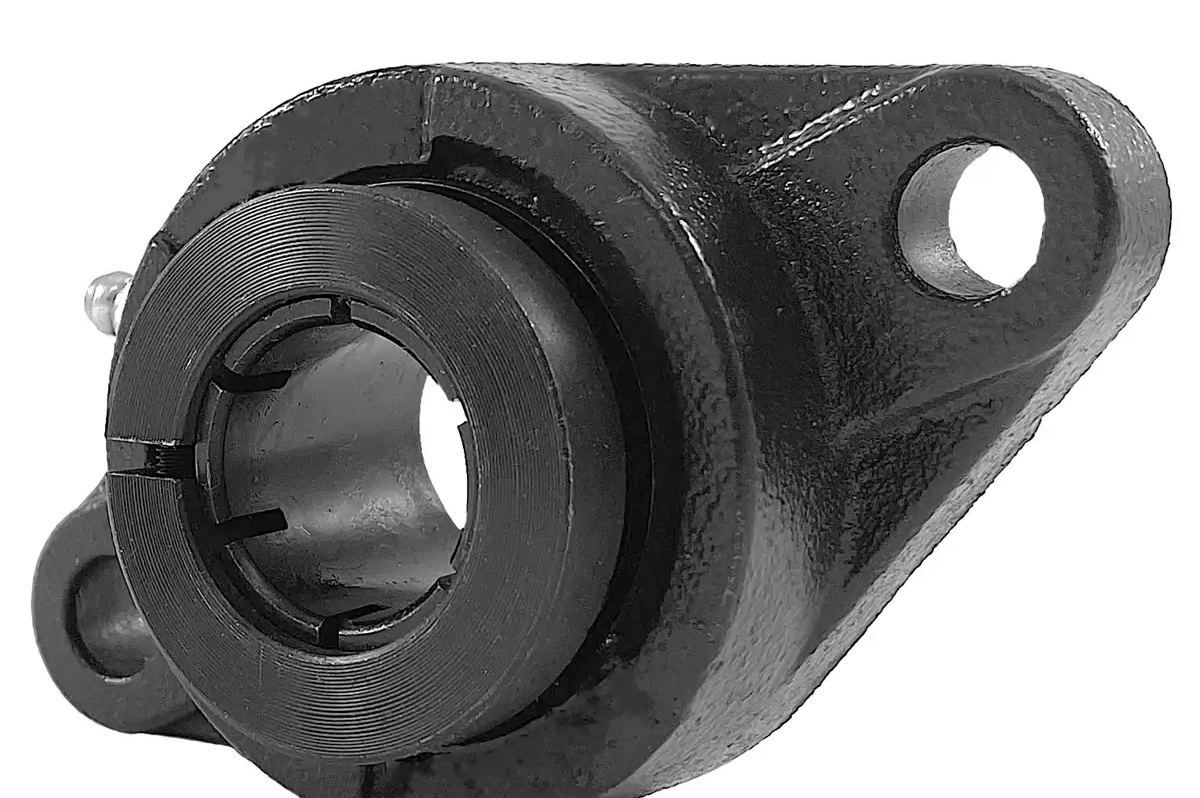

UEFT208-25 Bearing | 1-9/16" 2-Bolt Flange Bearing

UEFT208-25 bearing is a 1-9/16" bore two-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1-9/16" shaft. UEFT208-25 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UEFT208-25 bearing with a 1-9/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFT208-25 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFT208-25 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFT208-25 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFT208-25 bearings, and we will be happy to assist you!

UEFT208-25 Bearing Dimensions

• Part #: UEFT 208-25
• Shaft Diameter (d): 1-9/16"
• Dimension (A): 6.75"
• Dimension (E): 5.656"
• Dimension (I): 0.83"
• Dimension (G): 0.56"
• Dimension (L): 1.50"
• Dimension (S): 0.51"
• Dimension (B): 4.13"
• Dimension (Z): 2.06"
• Dimension (Bi): 1.9764"
• Dimension (N): 0.7480"
• Dimension (M): 1.189"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: UE 208-25
• Housing Number: FT 208
• Weight (LBS): 3.3
