UEHA208-25 Bearing | 1-9/16" Hanger Bearing

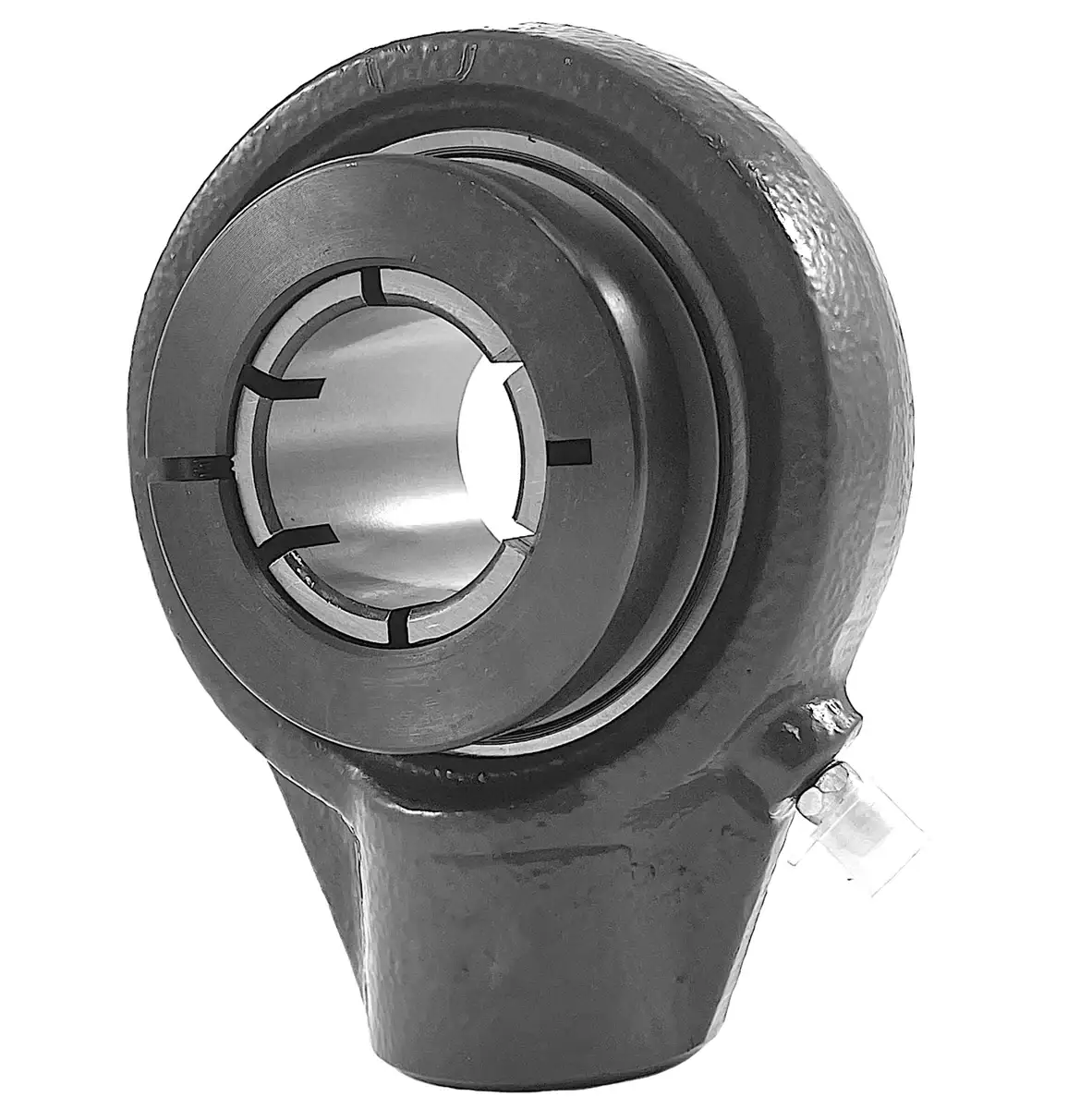

UEHA208-25 bearing is a 1-9/16" bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 1-9/16" shaft. UEHA208-25 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA208-25 bearing with a 1-9/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA208-25 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA208-25 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA208-25 bearings, and we will be happy to assist you!

UEHA208-25 Hanger Bearing Dimensions

• Part #: UEHA 208-25
• Shaft Diameter (d): 1-9/16"
• Dimension (A): 3.94"
• Dimension (W): 4.84"
• Dimension (C): 0.08"
• Dimension (H): 2.87"
• Dimension (L): 1.57"
• Dimension (D): 0.75"
• Dimension (K): PF 3/4
• Dimension (Bi): 1.9764"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: UE 208-25
• Housing Number: HA 208
• Weight (LBS): 3.4
