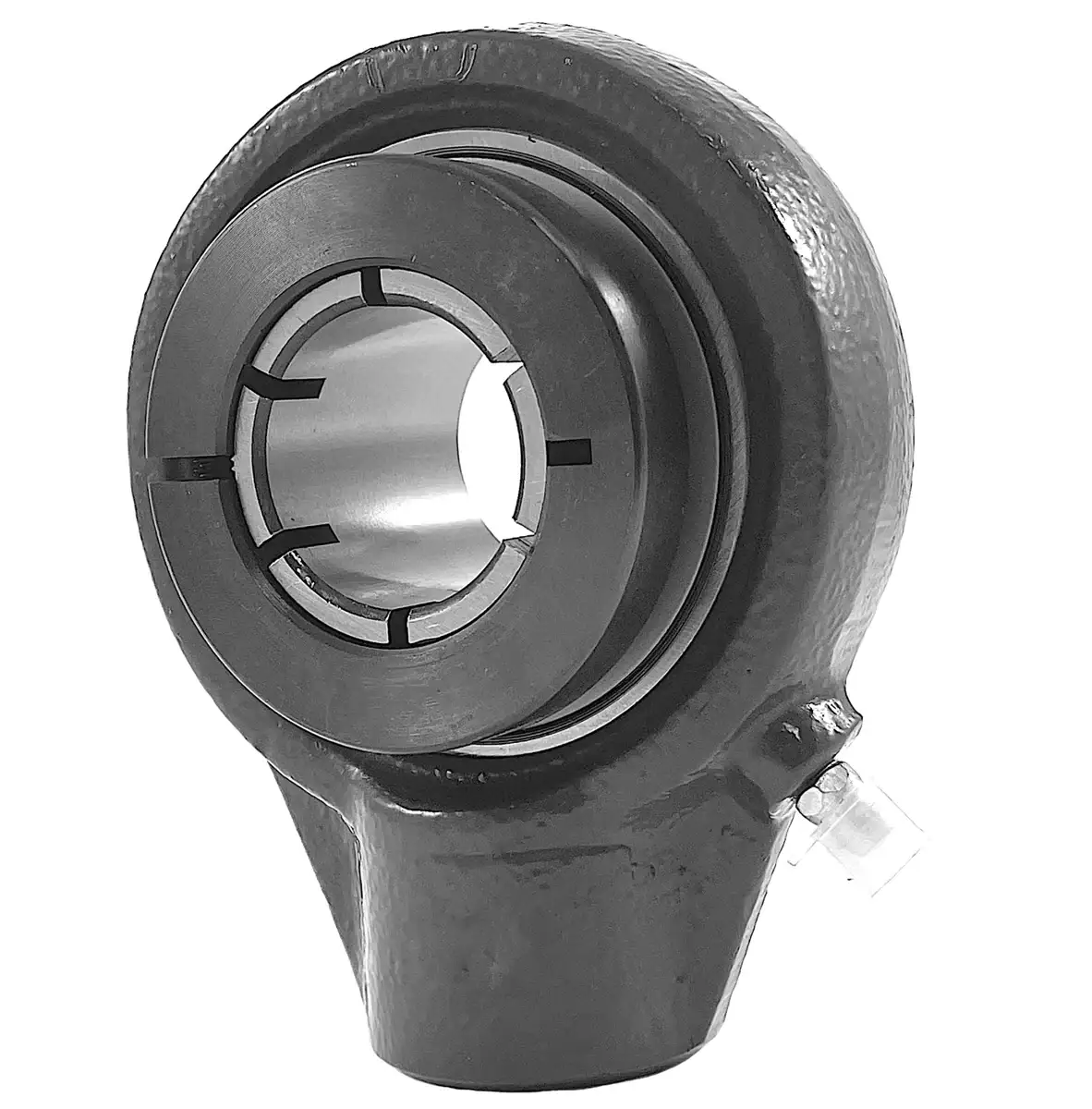

UEHA210-31 Bearing | 1-15/16" Hanger Bearing

UEHA210-31 bearing is a 1-15/16" bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 1-15/16" shaft. UEHA210-31 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA210-31 bearing with a 1-15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA210-31 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA210-31 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA210-31 bearings, and we will be happy to assist you!

UEHA210-31 Hanger Bearing Dimensions

• Part #: UEHA 210-31
• Shaft Diameter (d): 1-15/16"
• Dimension (A): 4.69"
• Dimension (W): 5.59"
• Dimension (C): 0.20"
• Dimension (H): 3.27"
• Dimension (L): 1.89"
• Dimension (D): 0.83"
• Dimension (K): PF1
• Dimension (Bi): 2.0709"
• Dimension (N): 0.7480"
• Dimension (M): 1.283"
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: UE 210-31
• Housing Number: HA 210
• Weight (LBS): 4.6
