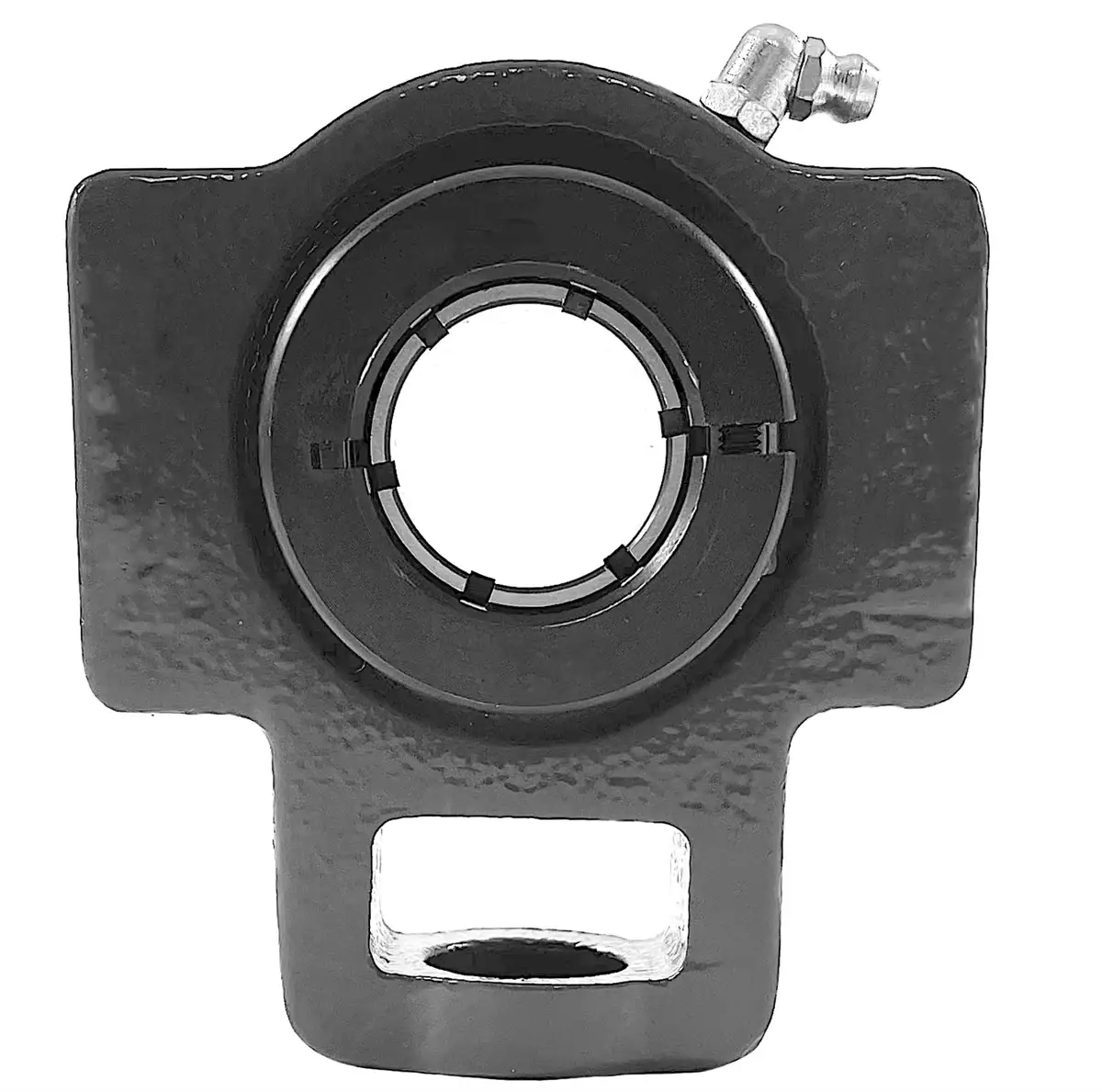

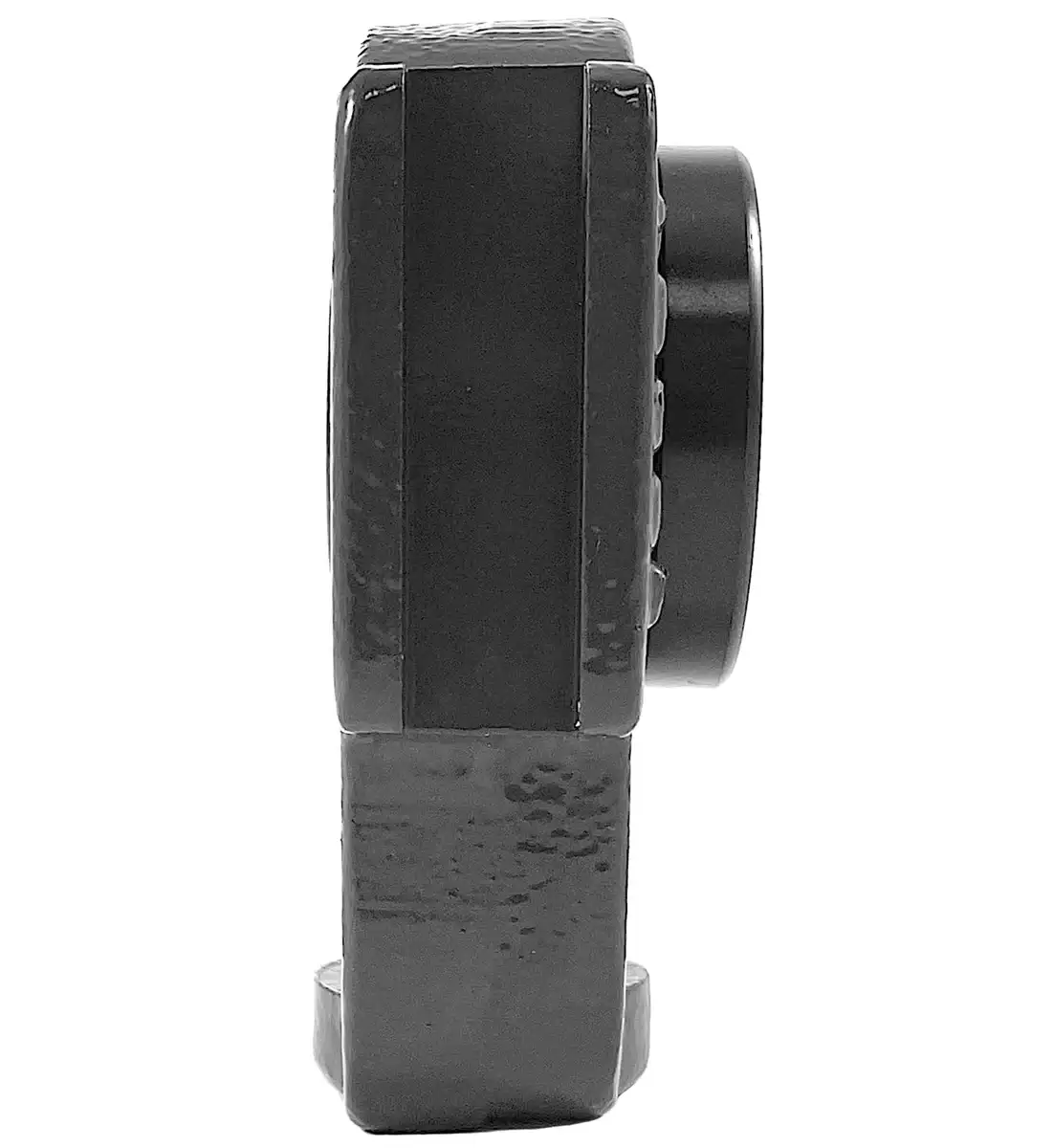

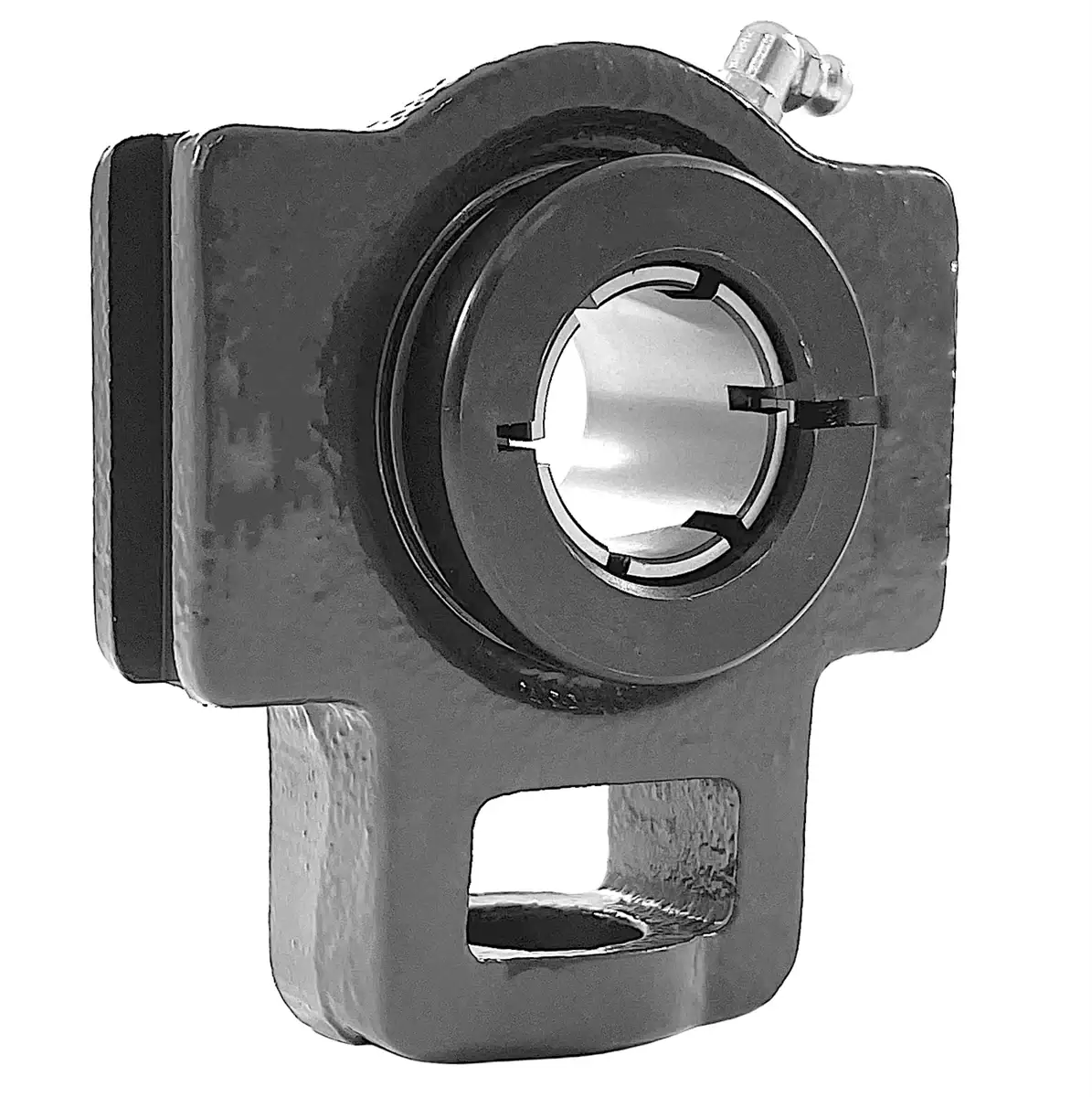

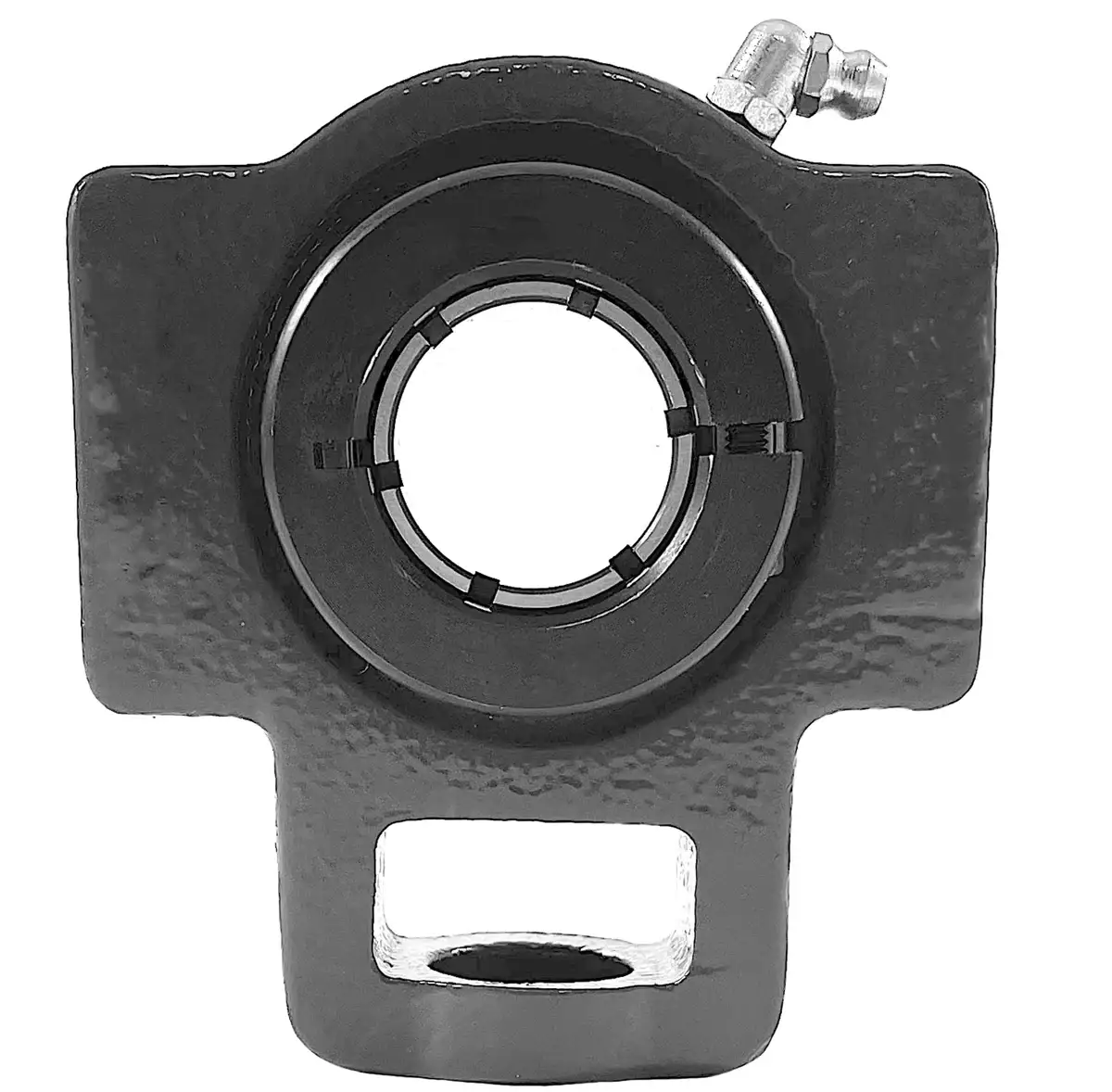

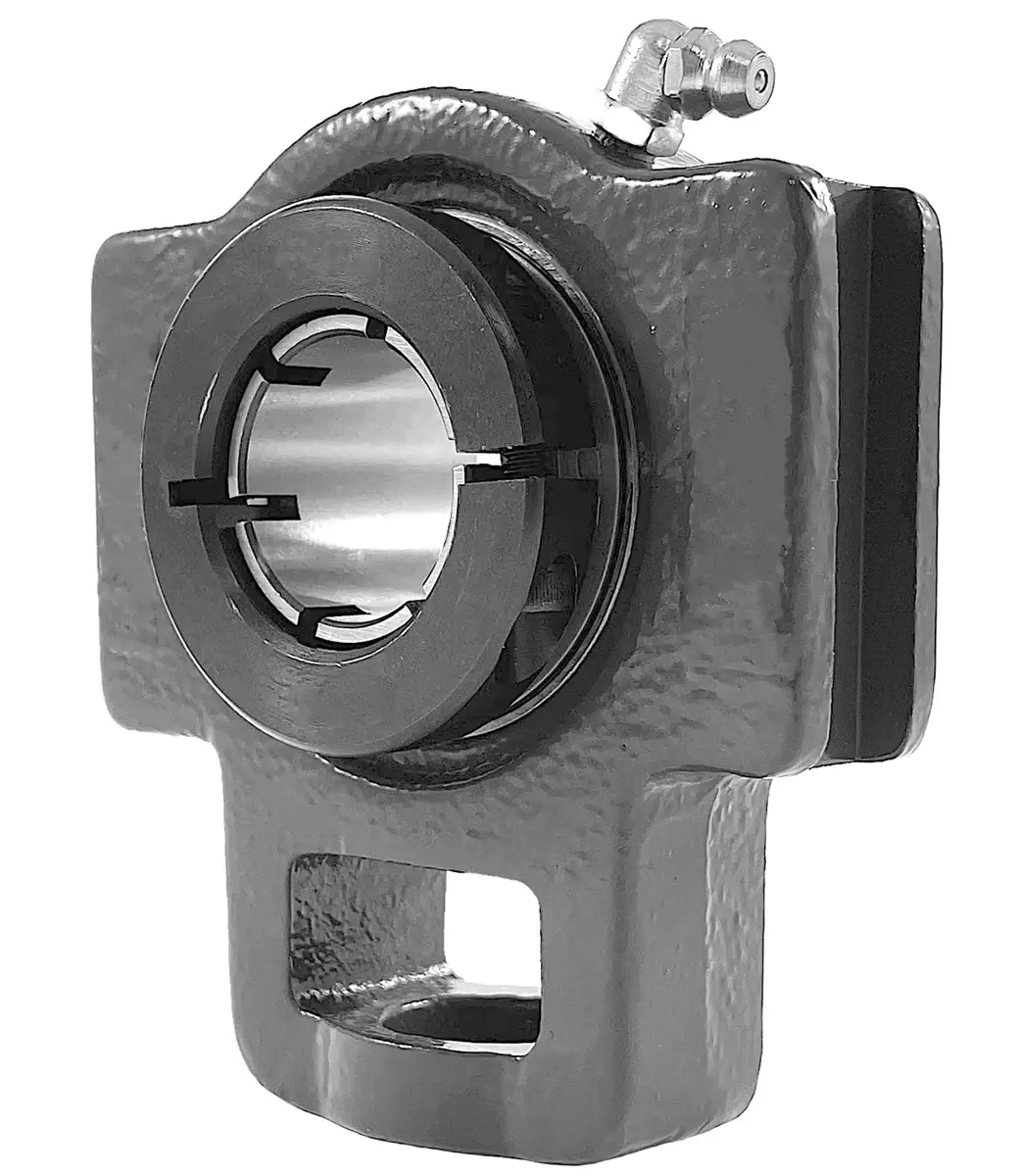

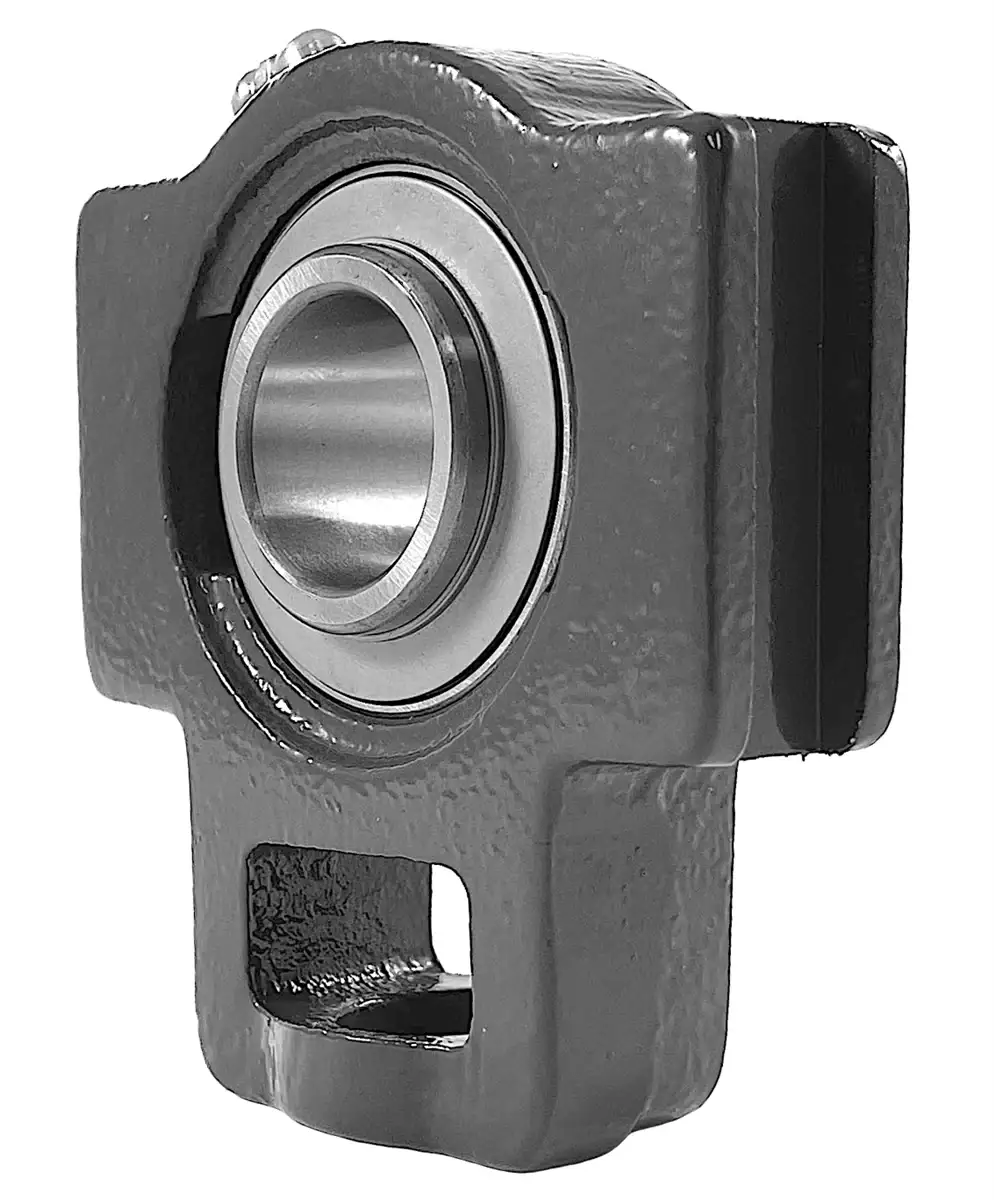

UEST204-12 Bearing | 3/4" Take-Up Bearing

UEST204-12 bearing is a 3/4" bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 3/4" shaft. UEST204-12 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST204-12 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST204-12 bearings, and we will be happy to assist you!

UEST204-12 Take-Up Bearing Dimensions

• Part #: UEST 204-12
• Shaft Diameter (d): 3/4"
• Dimension (O): 0.63"
• Dimension (G): 0.39"
• Dimension (P): 2.00"
• Dimension (Q): 1.25"
• Dimension (S): 0.75"
• Dimension (B): 2.00"
• Dimension (K): 0.53"
• Dimension (E): 3.00"
• Dimension (A): 3.50"
• Dimension (W): 3.69"
• Dimension (J): 1.25"
• Dimension (L): 0.84"
• Dimension (H): 2.38"
• Dimension (Bi): 1.2992"
• Dimension (N): 0.5000"
• Dimension (M): 0.7205"
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496

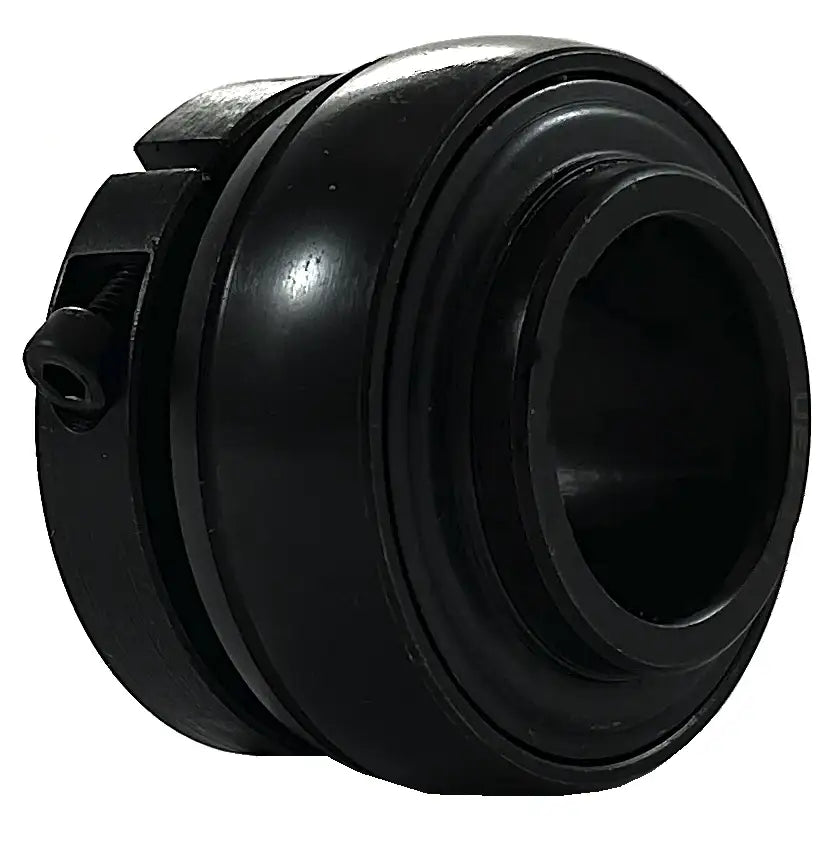

• Bearing Insert: UE 204-12
• Housing Number: ST 204
• Weight (LBS): 1.5
