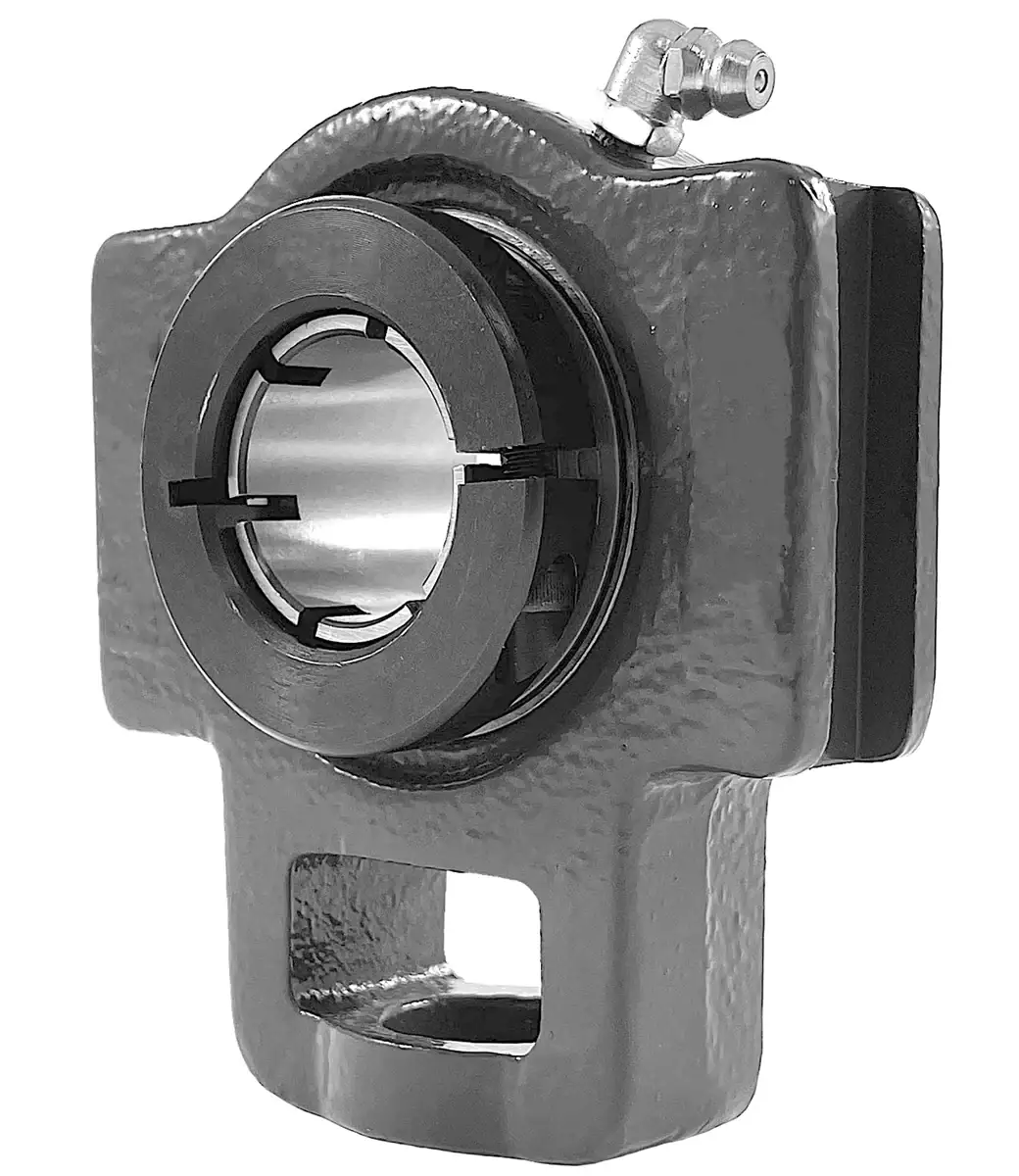

UEST205-16 Bearing | 1" Take-Up Bearing

UEST205-16 bearing is a 1" bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 1" shaft. UEST205-16 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST205-16 bearing with a 1" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST205-16 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST205-16 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST205-16 bearings, and we will be happy to assist you!

UEST205-16 Take-Up Bearing Dimensions

• Part #: UEST 205-16
• Shaft Diameter (d): 1"
• Dimension (O): 0.63"
• Dimension (G): 0.39"
• Dimension (P): 2.00"
• Dimension (Q): 1.25"
• Dimension (S): 0.75"
• Dimension (B): 2.00"
• Dimension (K): 0.53"
• Dimension (E): 3.00"
• Dimension (A): 3.50"
• Dimension (W): 3.84"
• Dimension (J): 1.25"
• Dimension (L): 0.94"
• Dimension (H): 2.44"
• Dimension (Bi): 1.3937"
• Dimension (N): 0.5630"
• Dimension (M): 0.7795"
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: UE 205-16
• Housing Number: ST 205
• Weight (LBS): 1.8
