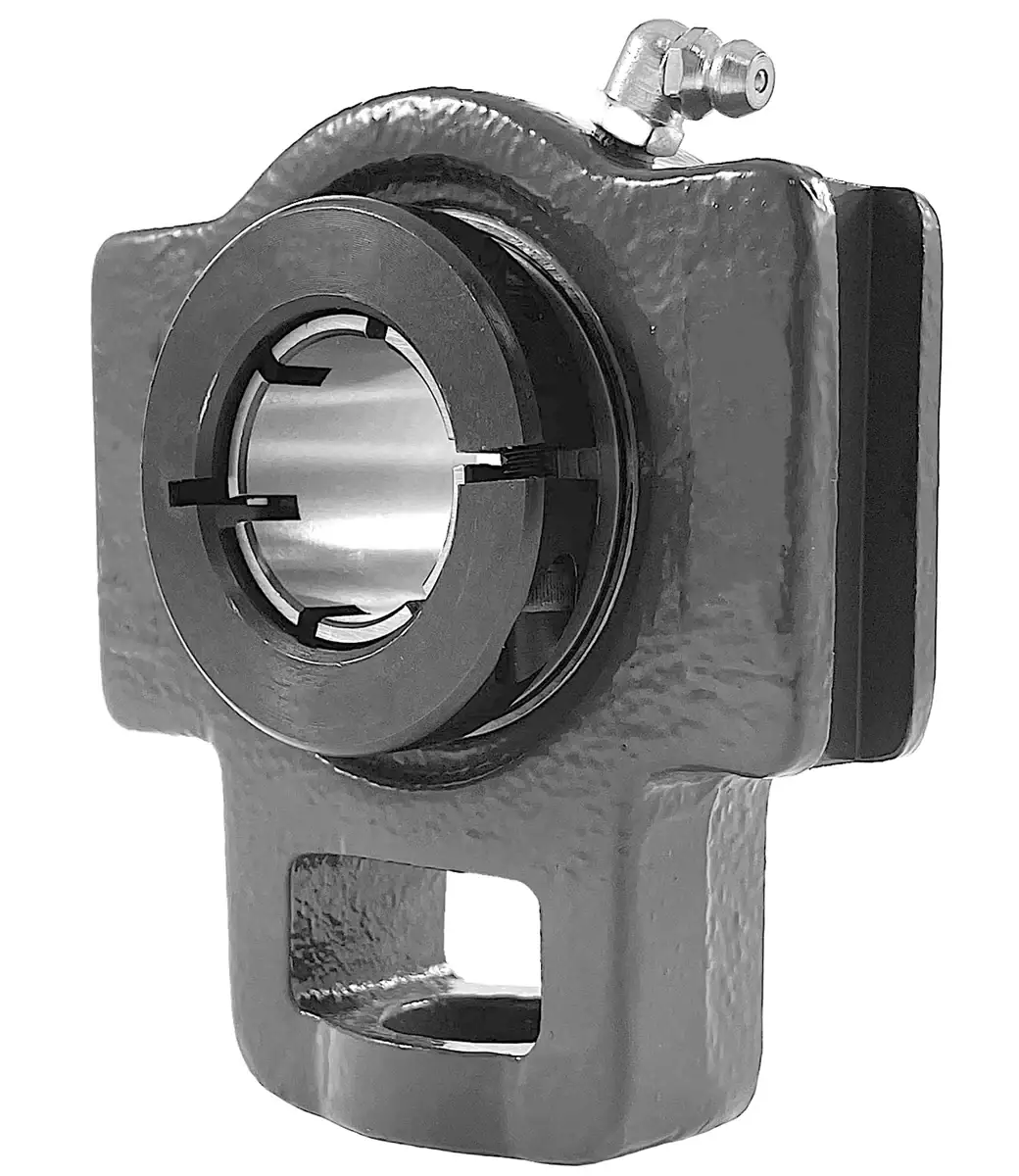

UEST211-35 Bearing | 2-3/16" Take-Up Bearing

UEST211-35 bearing is a 2-3/16" bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 2-3/16" shaft. UEST211-35 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST211-35 bearing with a 2-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST211-35 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST211-35 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST211-35 bearings, and we will be happy to assist you!

UEST211-35 Take-Up Bearing Dimensions

• Part #: UEST 211-35
• Shaft Diameter (d): 2-3/16"
• Dimension (O): 0.98"
• Dimension (G): 0.75"
• Dimension (P): 4.00"
• Dimension (Q): 2.50"
• Dimension (S): 1.38"
• Dimension (B): 3.75"
• Dimension (K): 1.06"
• Dimension (E): 5.13"
• Dimension (A): 5.75"
• Dimension (W): 6.75"
• Dimension (J): 2.50"
• Dimension (L): 1.50"
• Dimension (H): 4.18"
• Dimension (Bi): 2.2283"
• Dimension (N): 0.8740"
• Dimension (M): 1.3150"
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608
• Bearing Insert: UE 211-35
• Housing Number: ST 211
• Weight (LBS): 9.2
