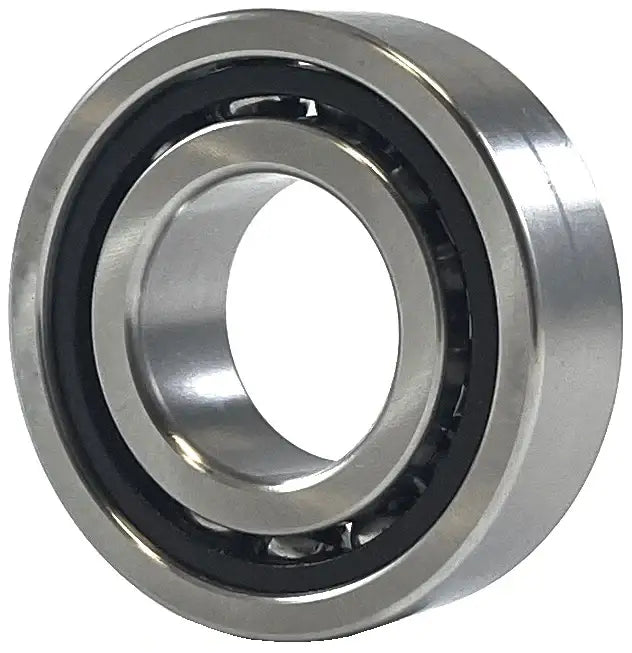

7209 CT.P4.UL Spindle Bearing - 45x85x19 Spindle Bearing

7209 CT.P4.UL spindle bearing is manufactured by AXIS to extremely precise ABEC 7 precision tolerances for maximum precision when in operation. This 45x85x19 7209 CT.P4.UL spindle bearing utilizes top-grades of materials as well as proprietary engineering and manufacturing techniques to provide the best spindle bearing on the market. Additional configurations for spindle bearings include duplex, triplex, and quadplex pairs to meet the application requirements. The purpose of a spindle bearing is to enhance and streamline spindle movement to ensure optimal machine speed and accuracy, this AXIS 7209 CT.P4.UL spindle bearing executes this purpose with the utmost accuracy and precision. Common applications for spindle bearings include; machine tools, medical equipment, aerospace, textile applications, and more. To get a quote or for additional information contact our customer support team and we will be happy to assist you.

7209 CT.P4.UL Spindle Bearing Dimensions

• Bearing Size: 7209 CT.P4.UL
• Dimension (d): 45mm
• Dimension (D): 85mm
• Dimension (B): 19mm
• Dynamic Load Rating: 9644 LBS
• Static Load Rating: 6969 LBS
• Limiting Speed (Grease): 17000 RPM
• Limiting Speed (OIL): 28000 RPM
• Weight: 0.925 LBS
