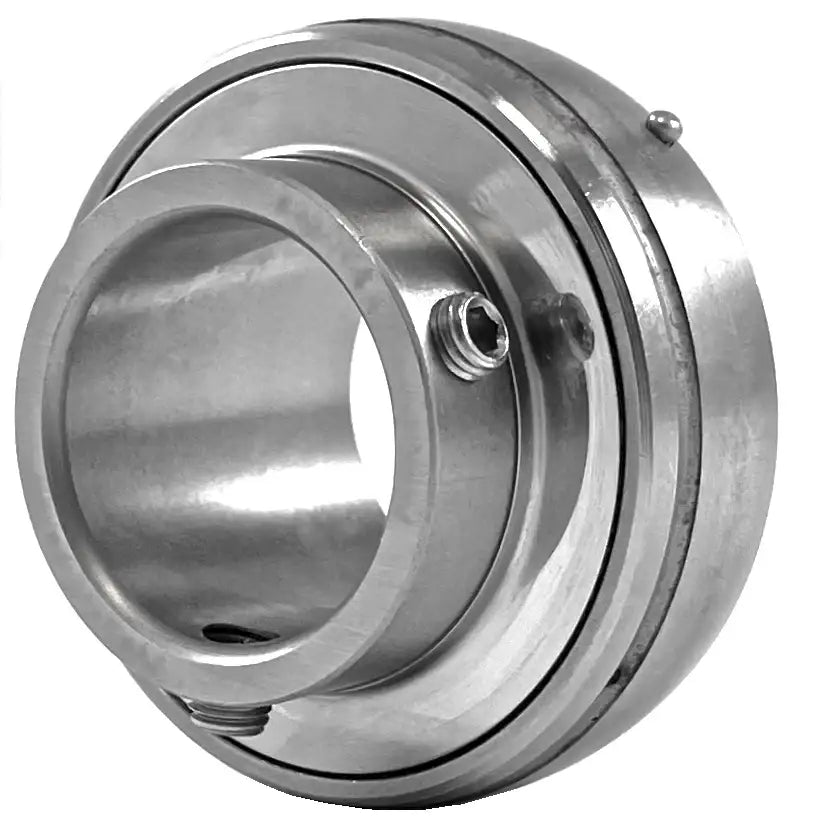

SSER210 Stainless Steel Bearing | SSER210 50mm Insert

This SSER210 stainless steel insert bearing is manufactured to C3 bearing precision standards and is made for a 50mm diameter shaft. Our stainless steel insert bearings are found in a broad range of food grade and corrosive applications and can operate in temperature ranges -10F up to 250F. It features two 420-grade stainless steel M10 x 1.25 set screws as well as an eccentric locking collar for locking onto the shaft, it also has a narrow inner ring and is made from high-quality stainless steel grades. The rings and balls are made of 440C stainless, and the flinger and ball retainers are made of 302 stainless steel. This specific combination of stainless steels means that this bearing is food-grade and will have an optimal service life within the application. This SSER210 stainless steel bearing also features premium food-grade silicone rubber seals for keeping the lubricant in while keeping contaminants out. For additional information or to get a quote on SSER210 insert bearings, contact our customer support team, and we will be happy to assist you!

SSER210 Insert Bearing Dimensions

• Bearing Size: SSER210
• Shaft Diameter (d): 50mm
• Setscrew Used: M10 x 1.25
• Dimension (D): 3.5433"
• Dimension (Bi): 2.0315"
• Dimension (Be): 1.1260"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Dimension (A): 0.0949"
• Dimension (AN): 0.1252"
• Dimension (Y): 3.7992"
• Dimension (G): 0.3937"
• Dimension (T): 0.2953"
• Dynamic Load Rating: 6,402 LBS
• Static Load Rating: 4,046 LBS
• Weight: 2.0 LBS
