CSA205 Insert Bearing | 25mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-CSA-205-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CSA205 Insert Bearing | 25mm Insert Bearing Features
CSA205 Insert Bearing | 25mm Insert Bearing Specifications

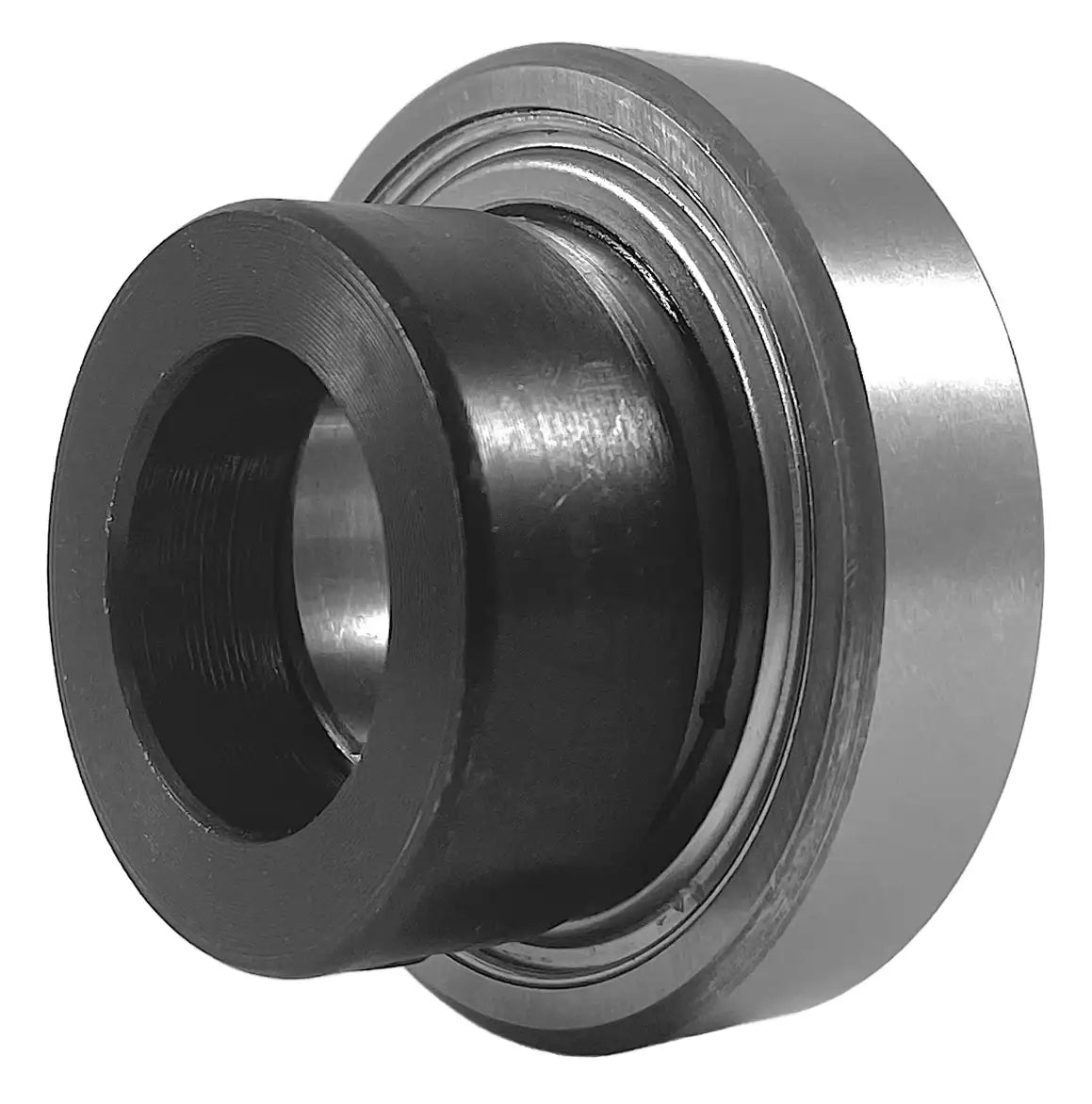

CSA205 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 25mm shaft. Our CSA205 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our CSA205 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our CSA205 bearings, contact our customer service and, we will be happy to assist you!
CSA205 Bearing Dimensions
- Part #: CSA 205
- Shaft Diameter (d): 25mm
- Setscrew Used: M6 x 1
- Dimension (D): 52.0mm
- Dimension (Bi): 31.5mm
- Dimension (Be): 15.0mm
- Dimension (N): 7.5mm
- Dimension (M): 14.5mm
- Dimension (W): 38.1mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dimension (T): 4.3mm
- Dynamic Load Rating (kN): 14.04
- Static Load Rating (kN): 8.05
- Weight (kg): 0.3
- Part #: CSA 205
- Shaft Diameter (d): 25mm
- Setscrew Used: M6 x 1
- Dimension (D): 52.0mm
- Dimension (Bi): 31.5mm
- Dimension (Be): 15.0mm
- Dimension (N): 7.5mm
- Dimension (M): 14.5mm
- Dimension (W): 38.1mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dimension (T): 4.3mm
- Dynamic Load Rating (kN): 14.04
- Static Load Rating (kN): 8.05
- Weight (kg): 0.3
