Power Transmission > Bearings > Mounted Bearings > Insert Bearings

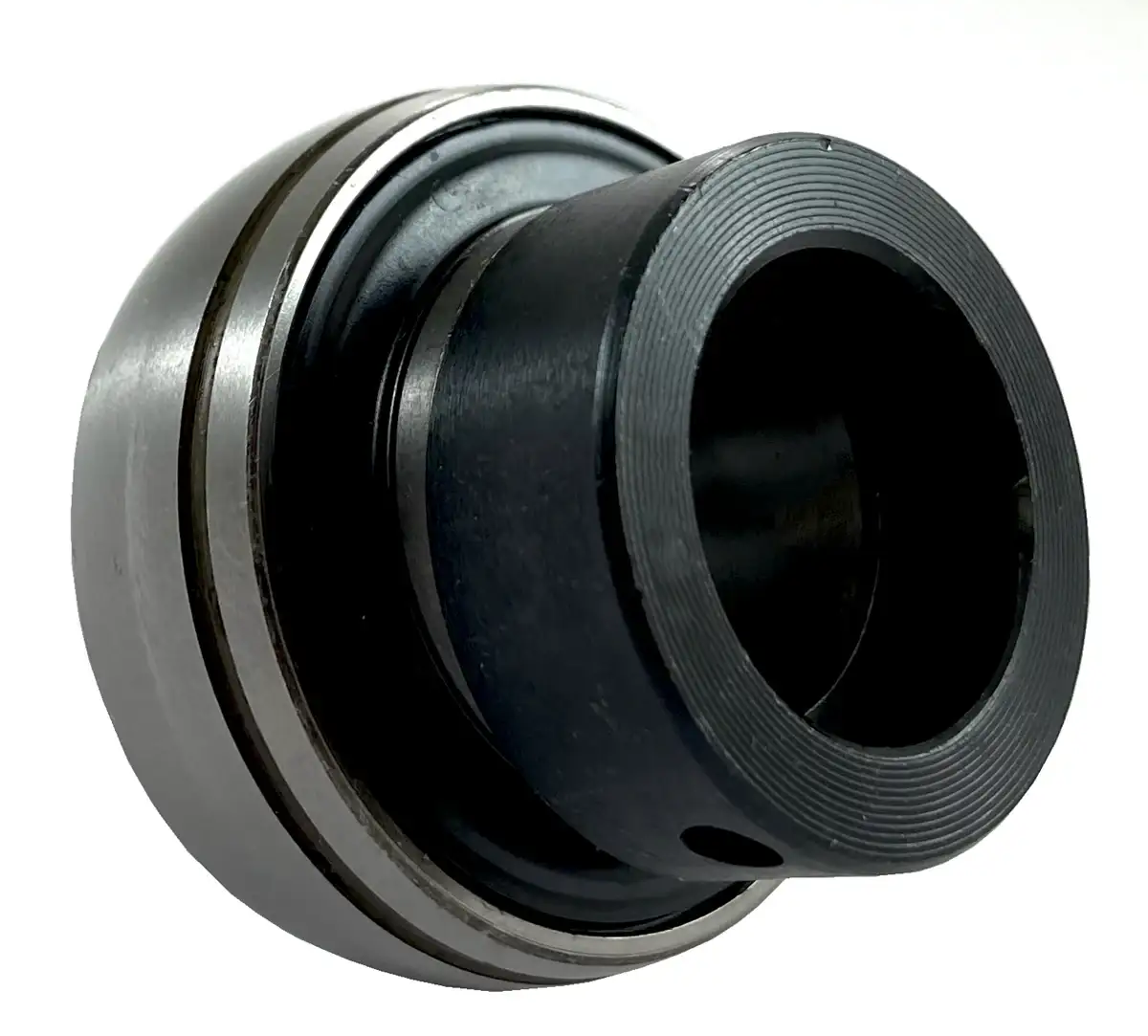

HC205-16 Bearing | 1" Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$27.99
SKU: 2278-HC-205-16-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC205-16 Bearing | 1" Eccentric Locking Bearing Features
HC205-16 Bearing | 1" Eccentric Locking Bearing Specifications
HC205-16 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 1" shaft. Our HC205-16 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC205-16 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC205-16 bearings, contact our customer service and, we will be happy to assist you!
HC205-16 Bearing Dimensions
- Part #: HC 205-16
- Shaft Diameter (d): 1"
- Setscrew Used: 1/4-28
- Dimension (D): 2.0472"
- Dimension (Bi): 1.7480"
- Dimension (Be): 0.6693"
- Dimension (N): 0.6890"
- Dimension (M): 0.6850"
- Dimension (T): 0.1535"
- Dimension (W): 0.1535"
- Dimension (K): 1.500"
- Dimension (G): 0.1969"
- Dynamic Load Rating (LBS): 3,155
- Static Load Rating (LBS): 1,810
- Weight (LBS): 0.6
- Part #: HC 205-16
- Shaft Diameter (d): 1"
- Setscrew Used: 1/4-28
- Dimension (D): 2.0472"
- Dimension (Bi): 1.7480"
- Dimension (Be): 0.6693"
- Dimension (N): 0.6890"
- Dimension (M): 0.6850"
- Dimension (T): 0.1535"
- Dimension (W): 0.1535"
- Dimension (K): 1.500"
- Dimension (G): 0.1969"
- Dynamic Load Rating (LBS): 3,155
- Static Load Rating (LBS): 1,810
- Weight (LBS): 0.6
