Power Transmission > Bearings > Mounted Bearings > Insert Bearings

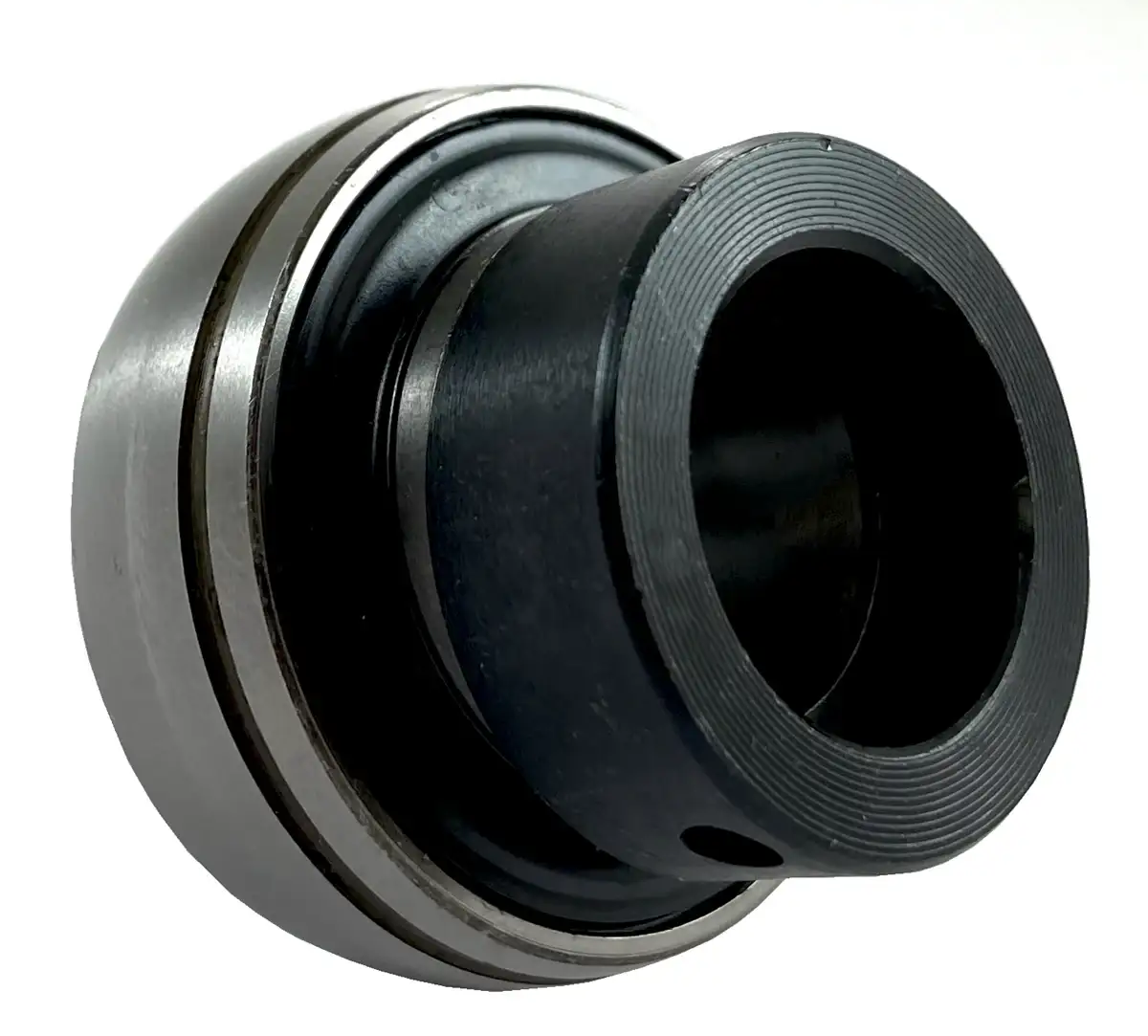

HC206-17 1-1/16" Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$30.99
SKU: 2278-HC-206-17-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC206-17 1-1/16" Eccentric Locking Bearing Features
HC206-17 1-1/16" Eccentric Locking Bearing Specifications
HC206-17 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 1-1/16" shaft. Our HC206-17 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC206-17 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC206-17 bearings, contact our customer service and, we will be happy to assist you!
HC206-17 Bearing Dimensions
- Part #: HC 206-17
- Shaft Diameter (d): 1-1/16"
- Setscrew Used: 1/4-28
- Dimension (D): 2.4409"
- Dimension (Bi): 1.9055"
- Dimension (Be): 0.7480"
- Dimension (N): 0.7205"
- Dimension (M): 0.7165"
- Dimension (T): 0.1969"
- Dimension (W): 1.752"
- Dimension (K): 0.626"
- Dimension (G): 0.2362"
- Dynamic Load Rating (LBS): 4,377
- Static Load Rating (LBS): 2,569
- Weight (LBS): 0.9
- Part #: HC 206-17
- Shaft Diameter (d): 1-1/16"
- Setscrew Used: 1/4-28
- Dimension (D): 2.4409"
- Dimension (Bi): 1.9055"
- Dimension (Be): 0.7480"
- Dimension (N): 0.7205"
- Dimension (M): 0.7165"
- Dimension (T): 0.1969"
- Dimension (W): 1.752"
- Dimension (K): 0.626"
- Dimension (G): 0.2362"
- Dynamic Load Rating (LBS): 4,377
- Static Load Rating (LBS): 2,569
- Weight (LBS): 0.9
