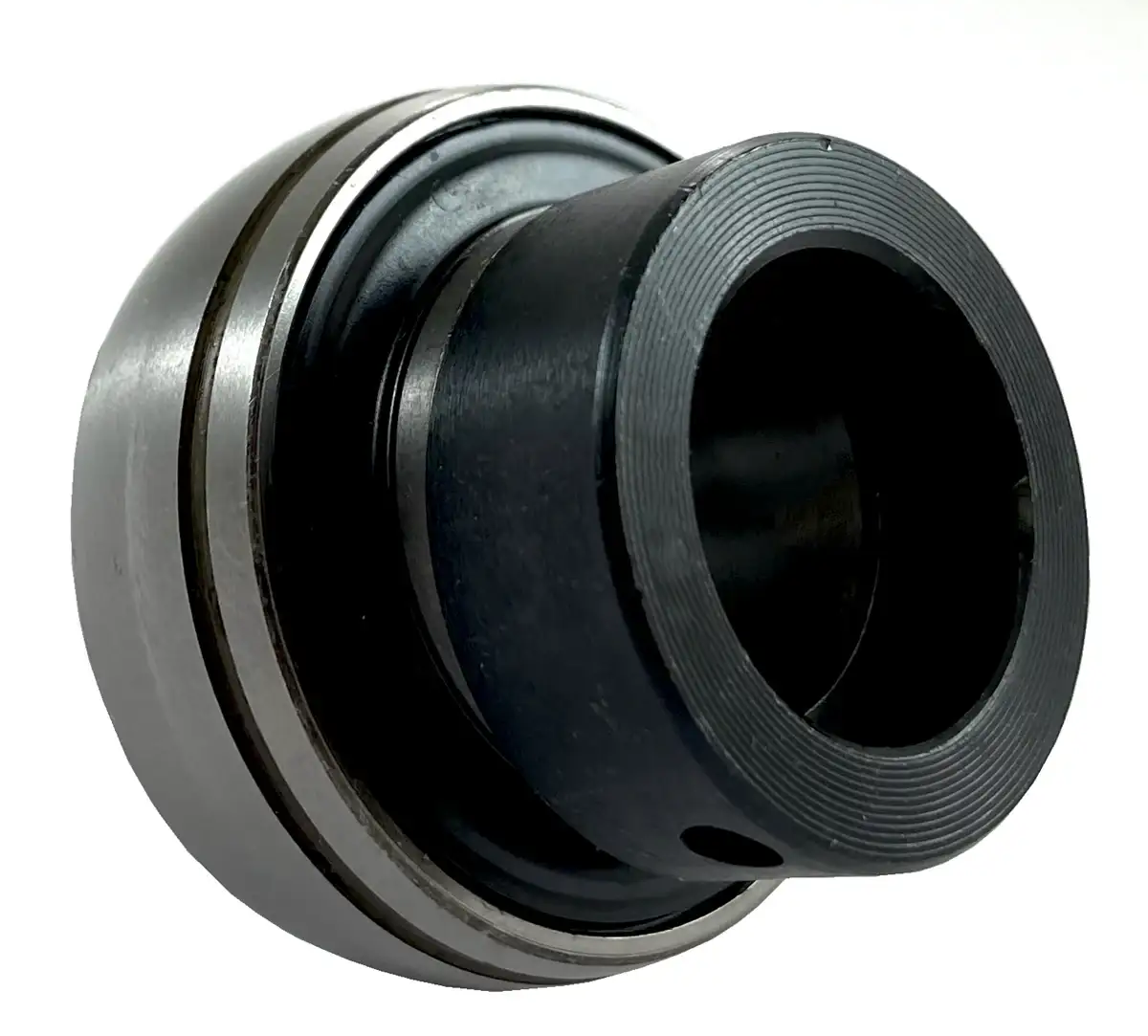

HC209-28 Bearing | 1-3/4" Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$46.99
SKU: 2278-HC-209-28-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC209-28 Bearing | 1-3/4" Eccentric Locking Bearing Features
HC209-28 Bearing | 1-3/4" Eccentric Locking Bearing Specifications
HC209-28 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 1-3/4" shaft. Our HC209-28 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC209-28 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC209-28 bearings, contact our customer service and, we will be happy to assist you!
HC209-28 Bearing Dimensions
- Part #: HC 209-28
- Shaft Diameter (d): 1-3/4"
- Setscrew Used: 5/16-24
- Dimension (D): 3.3465"
- Dimension (Bi): 2.2165"
- Dimension (Be): 0.8661"
- Dimension (N): 0.8425"
- Dimension (M): 0.8425"
- Dimension (T): 0.2520"
- Dimension (W): 2.500"
- Dimension (K): 0.721"
- Dimension (G): 0.2559"
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Weight (LBS): 1.8
- Part #: HC 209-28
- Shaft Diameter (d): 1-3/4"
- Setscrew Used: 5/16-24
- Dimension (D): 3.3465"
- Dimension (Bi): 2.2165"
- Dimension (Be): 0.8661"
- Dimension (N): 0.8425"
- Dimension (M): 0.8425"
- Dimension (T): 0.2520"
- Dimension (W): 2.500"
- Dimension (K): 0.721"
- Dimension (G): 0.2559"
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Weight (LBS): 1.8
