Power Transmission > Bearings > Mounted Bearings > Insert Bearings

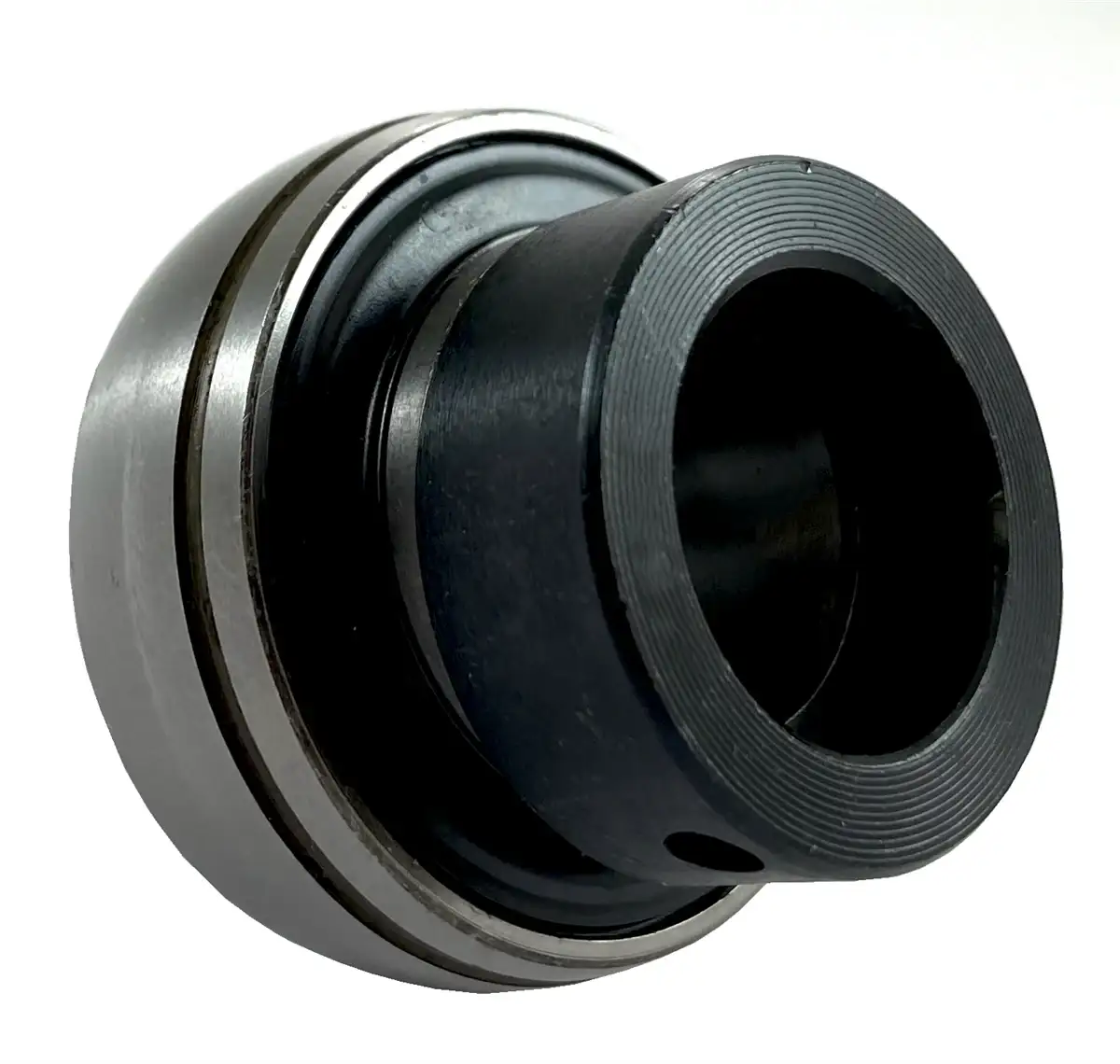

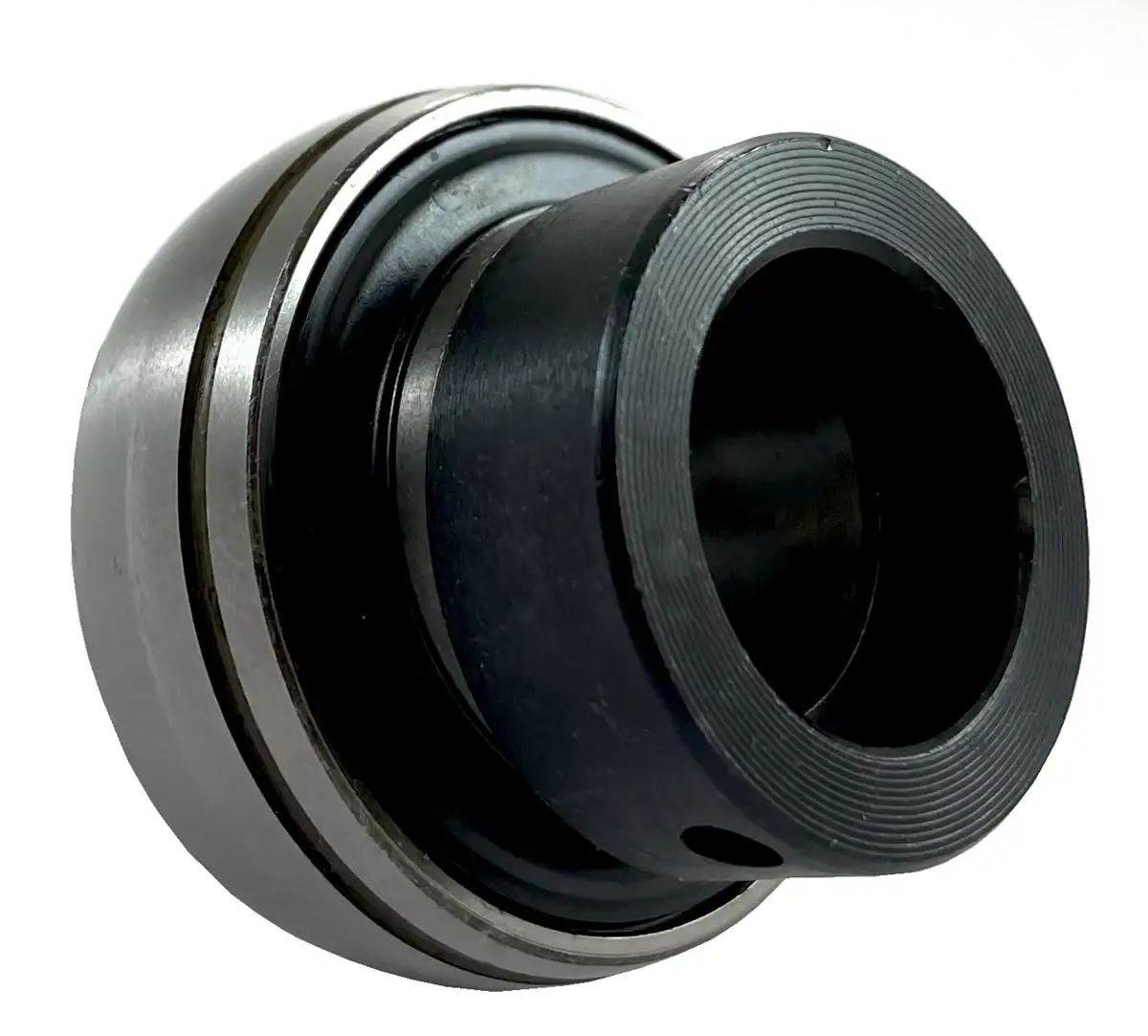

HC210-32 Bearing | 2" Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$57.99
SKU: 2278-HC-210-32-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC210-32 Bearing | 2" Eccentric Locking Bearing Features
HC210-32 Bearing | 2" Eccentric Locking Bearing Specifications
HC210-32 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 2" shaft. Our HC210-32 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC210-32 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC210-32 bearings, contact our customer service and, we will be happy to assist you!
HC210-32 Bearing Dimensions
- Part #: HC 210-32
- Shaft Diameter (d): 2"
- Setscrew Used: 5/16-24
- Dimension (D): 3.5433"
- Dimension (Bi): 2.4685"
- Dimension (Be): 0.9449"
- Dimension (N): 0.9685"
- Dimension (M): 0.9685"
- Dimension (T): 0.2559"
- Dimension (W): 2.752"
- Dimension (K): 0.721"
- Dimension (G): 0.2559"
- Dynamic Load Rating (LBS): 7,867
- Static Load Rating (LBS): 5,330
- Weight (LBS): 2.2
- Part #: HC 210-32
- Shaft Diameter (d): 2"
- Setscrew Used: 5/16-24
- Dimension (D): 3.5433"
- Dimension (Bi): 2.4685"
- Dimension (Be): 0.9449"
- Dimension (N): 0.9685"
- Dimension (M): 0.9685"
- Dimension (T): 0.2559"
- Dimension (W): 2.752"
- Dimension (K): 0.721"
- Dimension (G): 0.2559"
- Dynamic Load Rating (LBS): 7,867
- Static Load Rating (LBS): 5,330
- Weight (LBS): 2.2
