Power Transmission > Bearings > Mounted Bearings > Insert Bearings

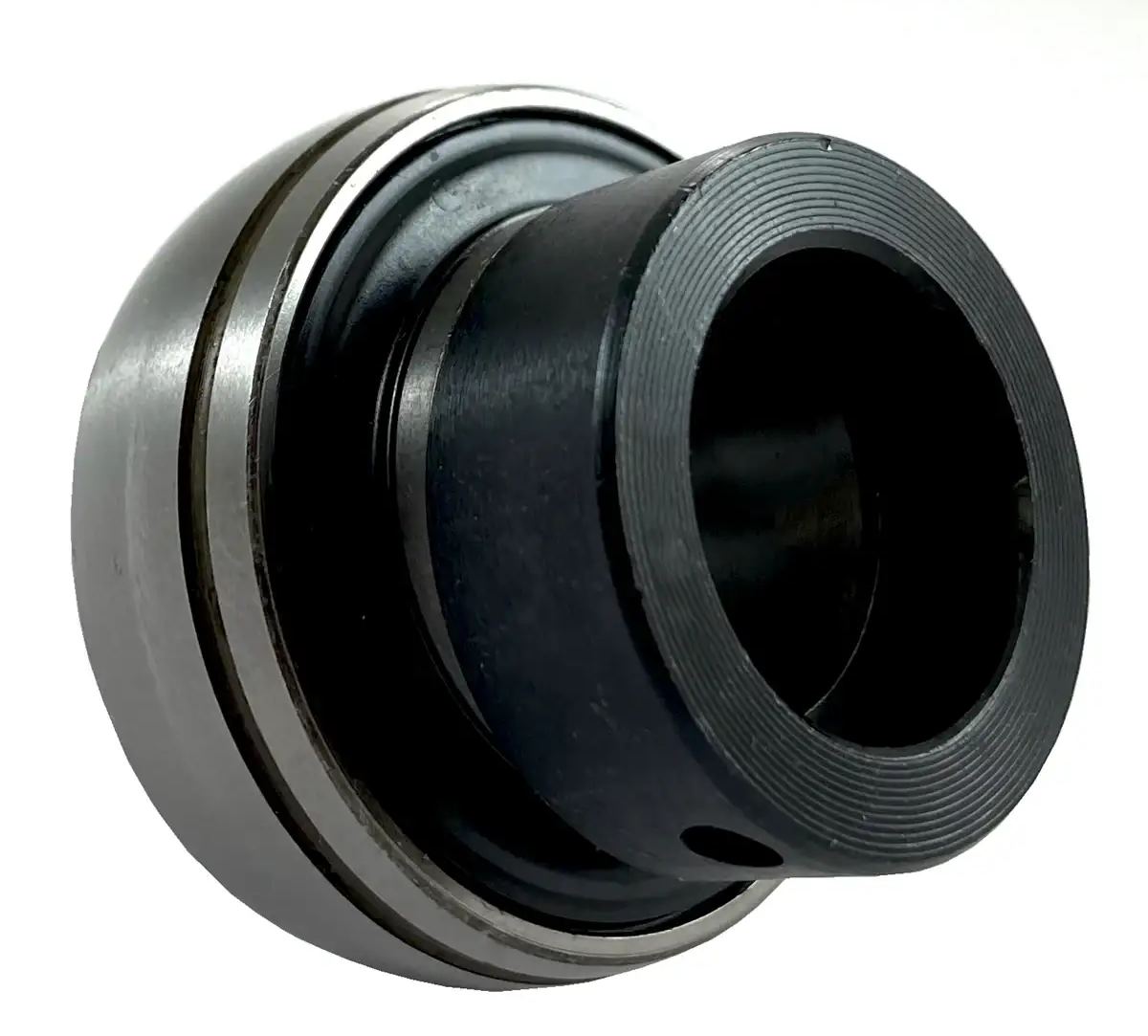

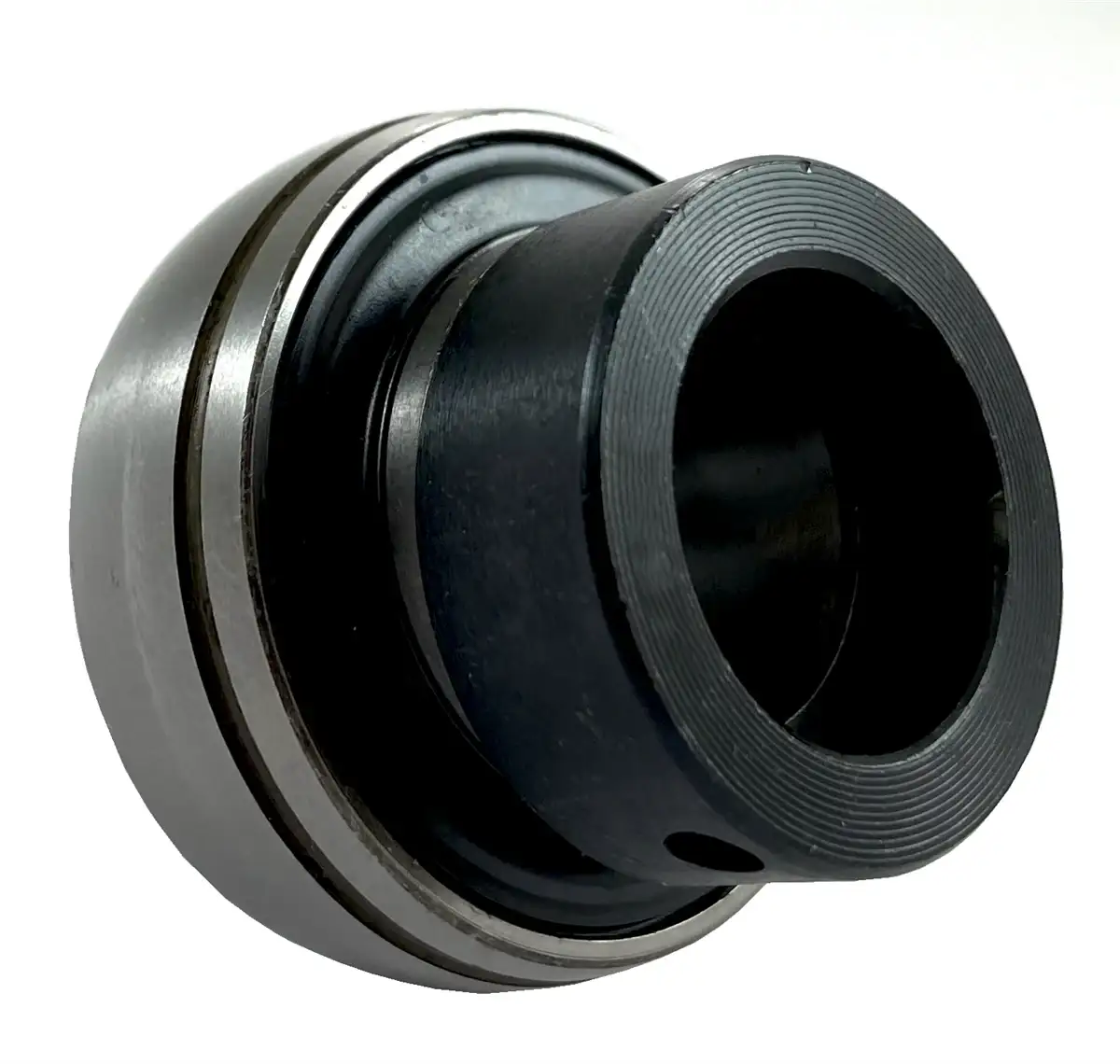

HC212-38 Bearing | 2-3/8" Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$114.99
SKU: 2278-HC-212-38-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC212-38 Bearing | 2-3/8" Eccentric Locking Bearing Features
HC212-38 Bearing | 2-3/8" Eccentric Locking Bearing Specifications
HC212-38 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 2-3/8" shaft. Our HC212-38 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC212-38 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC212-38 bearings, contact our customer service and, we will be happy to assist you!
HC212-38 Bearing Dimensions
- Part #: HC 212-38
- Shaft Diameter (d): 2-3/8"
- Setscrew Used: 3/8-24
- Dimension (D): 4.3307"
- Dimension (Bi): 3.0630"
- Dimension (Be): 0.9449"
- Dimension (N): 1.22065"
- Dimension (M): 1.2165"
- Dimension (T): 0.2992"
- Dimension (W): 3.315"
- Dimension (K): 0.878"
- Dimension (G): 0.3150"
- Dynamic Load Rating (LBS): 10,720
- Static Load Rating (LBS): 7,516
- Weight (LBS): 4.1
- Part #: HC 212-38
- Shaft Diameter (d): 2-3/8"
- Setscrew Used: 3/8-24
- Dimension (D): 4.3307"
- Dimension (Bi): 3.0630"
- Dimension (Be): 0.9449"
- Dimension (N): 1.22065"
- Dimension (M): 1.2165"
- Dimension (T): 0.2992"
- Dimension (W): 3.315"
- Dimension (K): 0.878"
- Dimension (G): 0.3150"
- Dynamic Load Rating (LBS): 10,720
- Static Load Rating (LBS): 7,516
- Weight (LBS): 4.1
