HCAK204-12 Bearing | 3/4" 2-Bolt Eccentric Locking Bearing

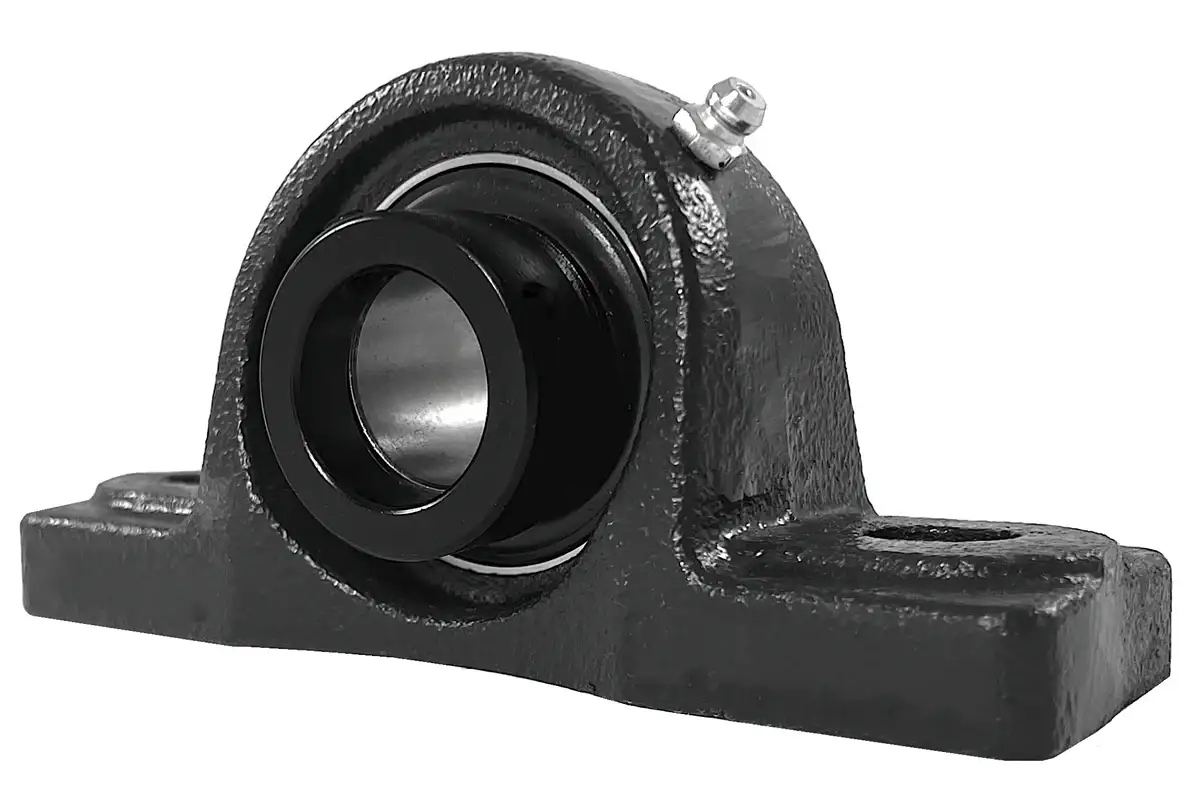

HCAK204-12 bearing is a two-bolt normal duty pillow block bearing with a 3/4" bore. It utilizes an eccentric locking collar for securing the beating to a 3/4" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK204-12 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK204-12 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK204-12 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK204-12 bearings, and we will be happy to assist you!

HCAK204-12 Bearing Dimensions

• Part #: HCAK 204-12
• Shaft Diameter (d): 3/4"
• Dimension (H): 1.250"
• Dimension (A): 5.25"
• Dimension (E): 3.88"
• Dimension (B): 1.63"
• Dimension (S2): 0.63"
• Dimension (S1): 0.47"
• Dimension (G): 0.56"
• Dimension (W): 2.50"
• Dimension (Bi): 1.7205"
• Dimension (N): 0.6732"
• Dimension (M): 0.6732"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: HC 204-12
• Housing Number: AK 204
• Weight (LBS): 1.9
