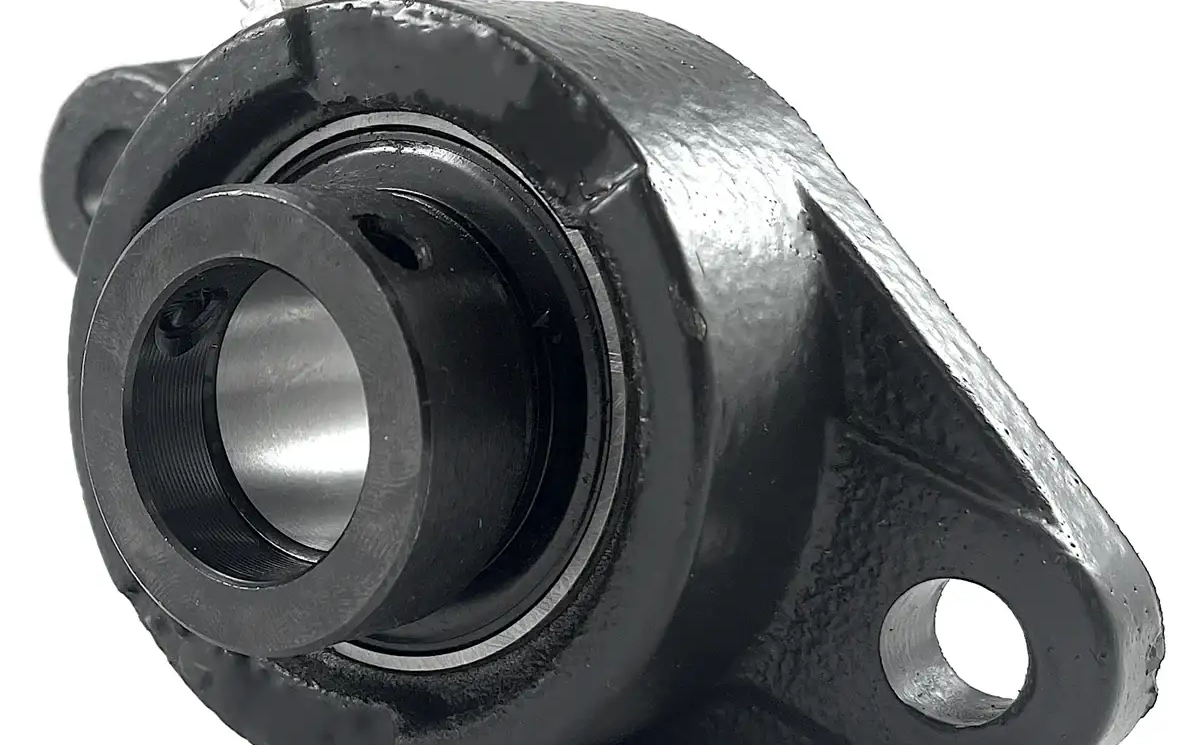

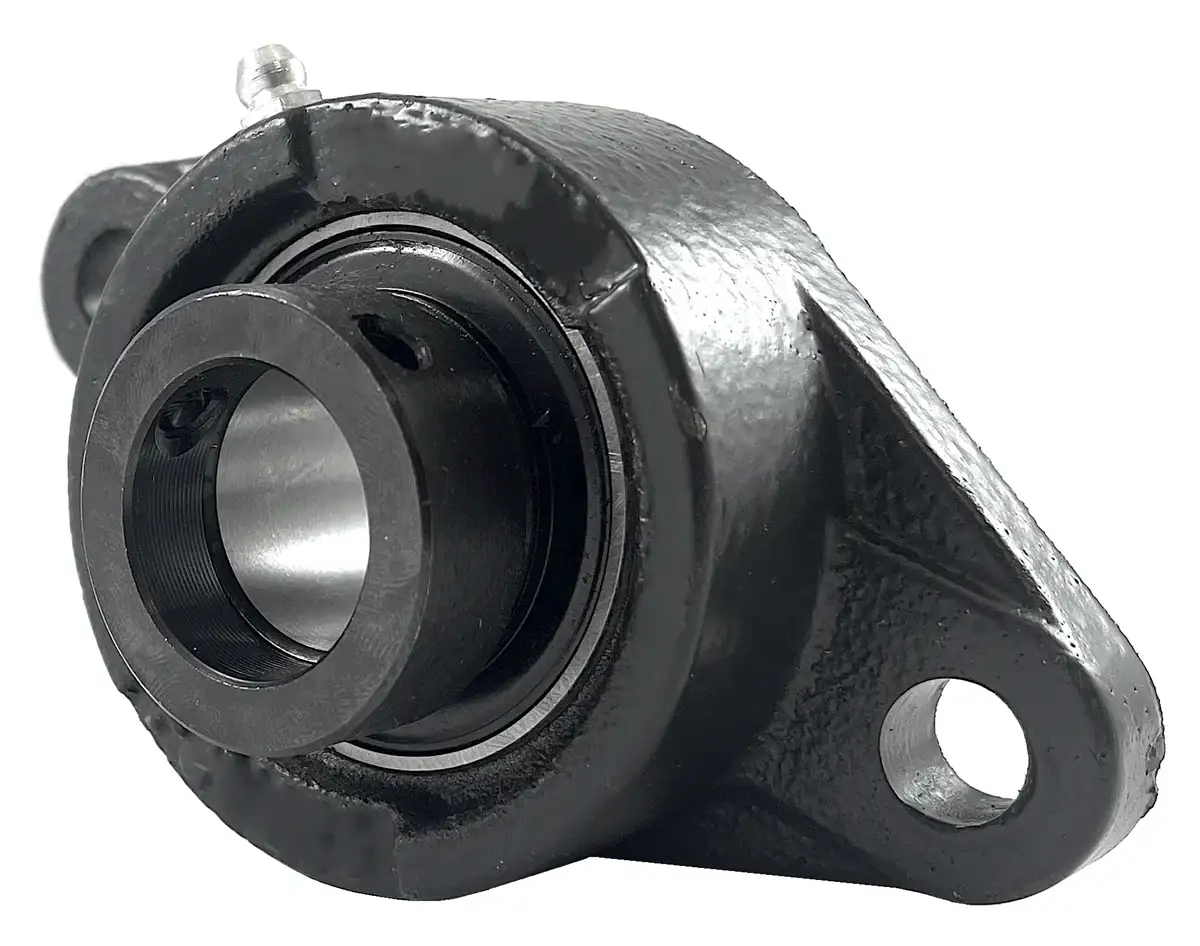

HCFJT209-26 Bearing | 1-5/8" 2-Bolt Eccentric Locking Bearing

HCFJT209-26 bearing is a 1-5/8" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 1-5/8" shaft. HCFJT209-26 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT209-26 bearing with a 1-5/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT209-26 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT209-26 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT209-26 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT209-26 bearings, and we will be happy to assist you!

HCFJT209-26 Bearing Dimensions

• Part #: HCFJT 209-26
• Shaft Diameter (d): 1-5/8"
• Dimension (A): 7.06"
• Dimension (E): 5.844"
• Dimension (I): 0.94"
• Dimension (G): 0.59"
• Dimension (L): 1.75"
• Dimension (S): 0.63"
• Dimension (B): 4.38"
• Dimension (Z): 2.31"
• Dimension (Bi): 2.2165"
• Dimension (N): 0.8425"
• Dimension (M): 0.8425"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 7,160
• Static Load Rating (LBS): 4,676
• Bearing Insert: HC 209-26
• Housing Number: FJT 209
• Weight (LBS): 5.5
