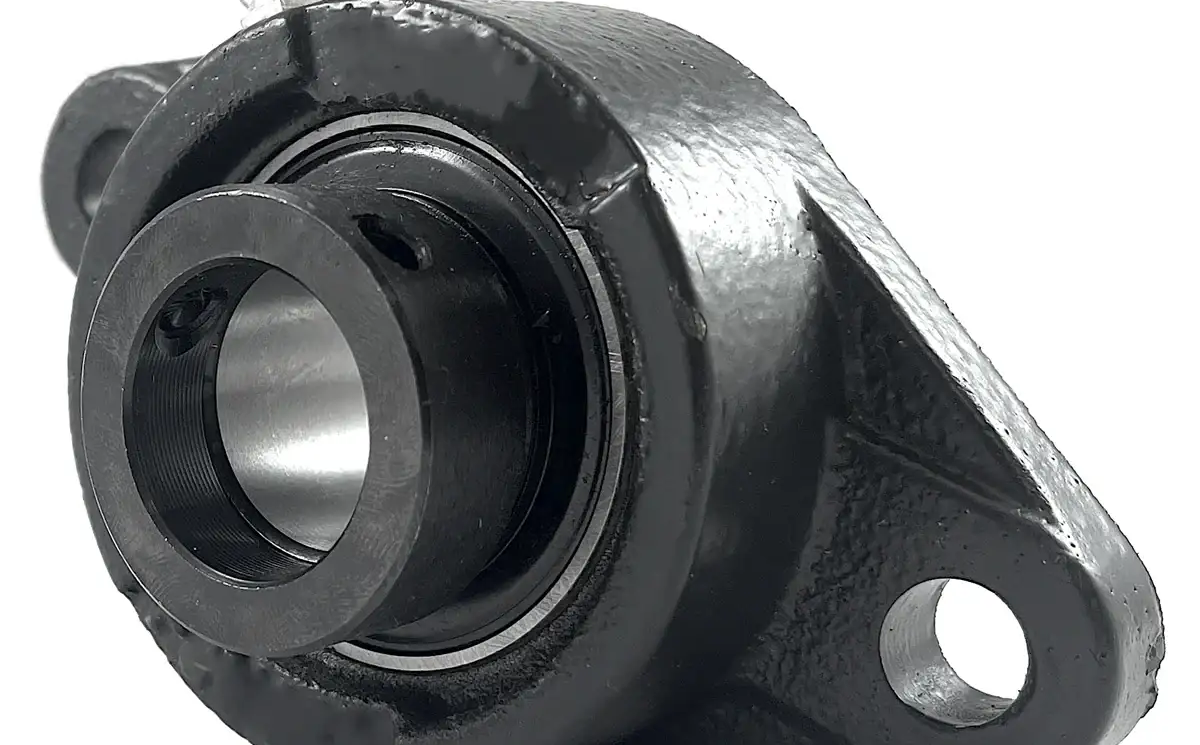

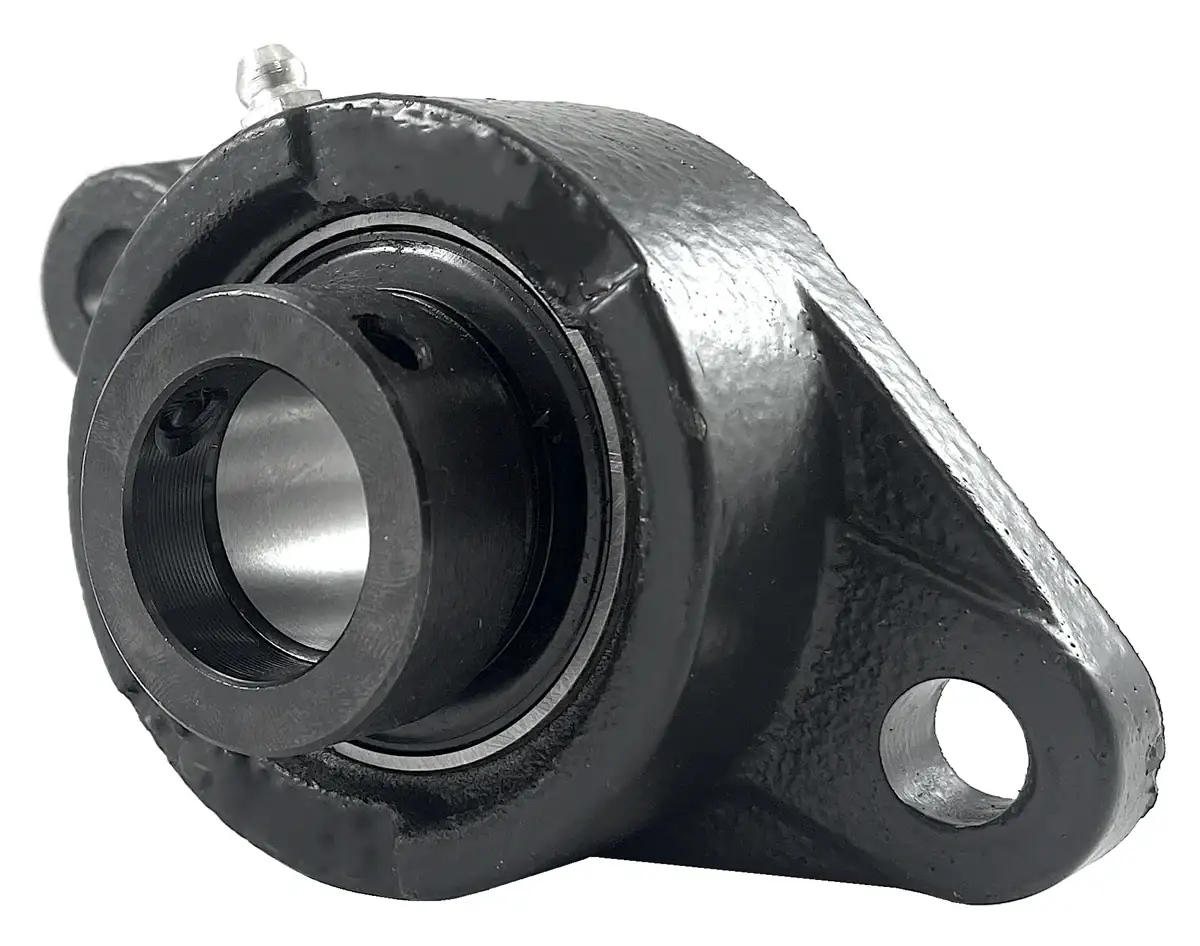

HCFJT209 Bearing | 45mm 2-Bolt Eccentric Locking Bearing

HCFJT209 bearing is a 45mm bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 45mm shaft. HCFJT209 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT209 bearing with a 45mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT209 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT209 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT209 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT209 bearings, and we will be happy to assist you!

HCFJT209 Bearing Dimensions

• Part #: HCFJT 209
• Shaft Diameter (d): 45mm
• Dimension (A): 179.0mm
• Dimension (E): 148.4mm
• Dimension (I): 23.8mm
• Dimension (G): 15.0mm
• Dimension (L): 45.0mm
• Dimension (S): 16.0:mm
• Dimension (B): 111.0mm
• Dimension (Z): 58.7mm
• Dimension (Bi): 56.3mm
• Dimension (N): 21.4mm
• Dimension (M): 21.4mm
• Bolt Used: M14
• Dynamic Load Rating (kN): 31.85
• Static Load Rating (kN): 20.80
• Bearing Insert: HC 209
• Housing Number: FJT 209
• Weight (kg): 2.5
