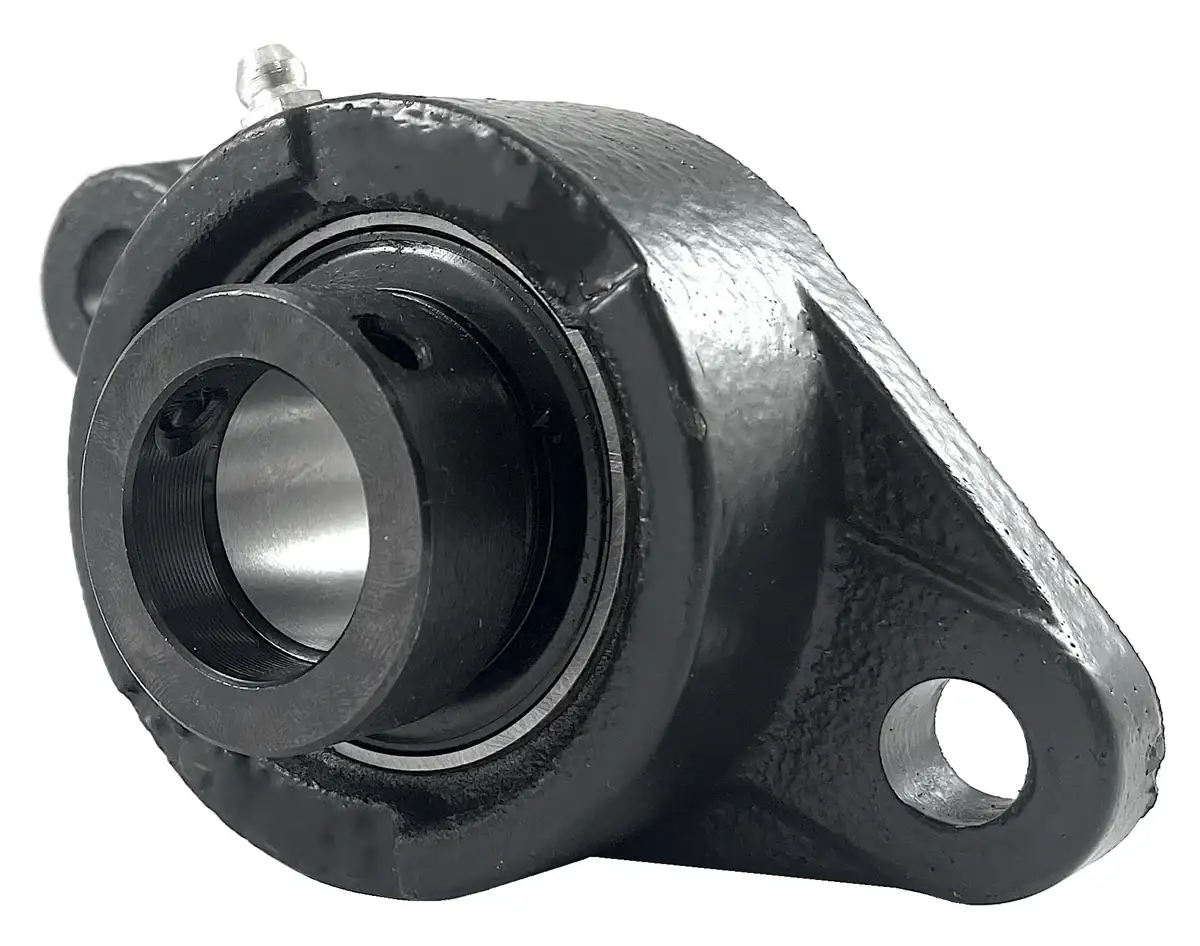

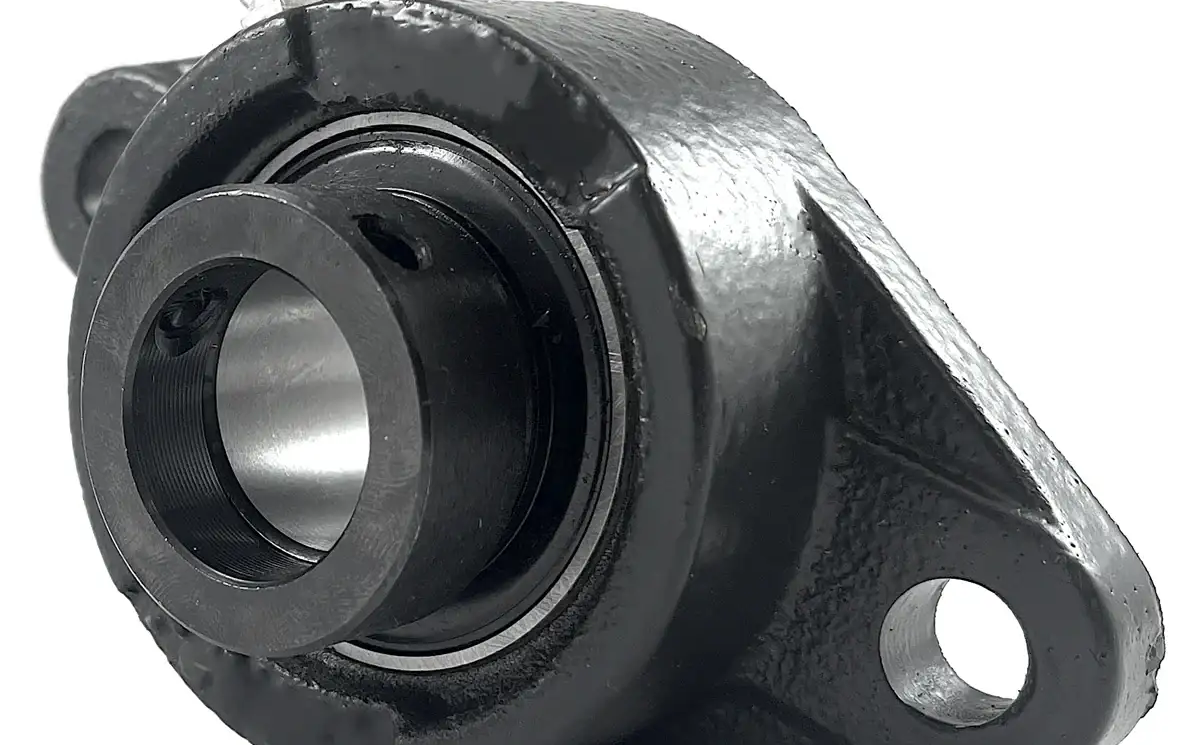

HCFJT210 Bearing | 50mm 2-Bolt Eccentric Locking Bearing

HCFJT210 bearing is a 50mm bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 50mm shaft. HCFJT210 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT210 bearing with a 50mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT210 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT210 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT210 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT210 bearings, and we will be happy to assist you!

HCFJT210 Bearing Dimensions

• Part #: HCFJT 210
• Shaft Diameter (d): 50mm
• Dimension (A): 189.0mm
• Dimension (E): 157.2mm
• Dimension (I): 28.6mm
• Dimension (G): 15.0mm
• Dimension (L): 48.0mm
• Dimension (S): 17.0mm
• Dimension (B): 116.0mm
• Dimension (Z): 66.7mm
• Dimension (Bi): 62.7mm
• Dimension (N): 24.6mm
• Dimension (M): 24.6mm
• Bolt Used: M14
• Dynamic Load Rating (kN): 35.00
• Static Load Rating (kN): 23.71
• Bearing Insert: HC 210
• Housing Number: FJT 210
• Weight (kg): 2.7
