HCFS204-12 Bearing | 3/4" 4-Bolt Eccentric Locking Bearing

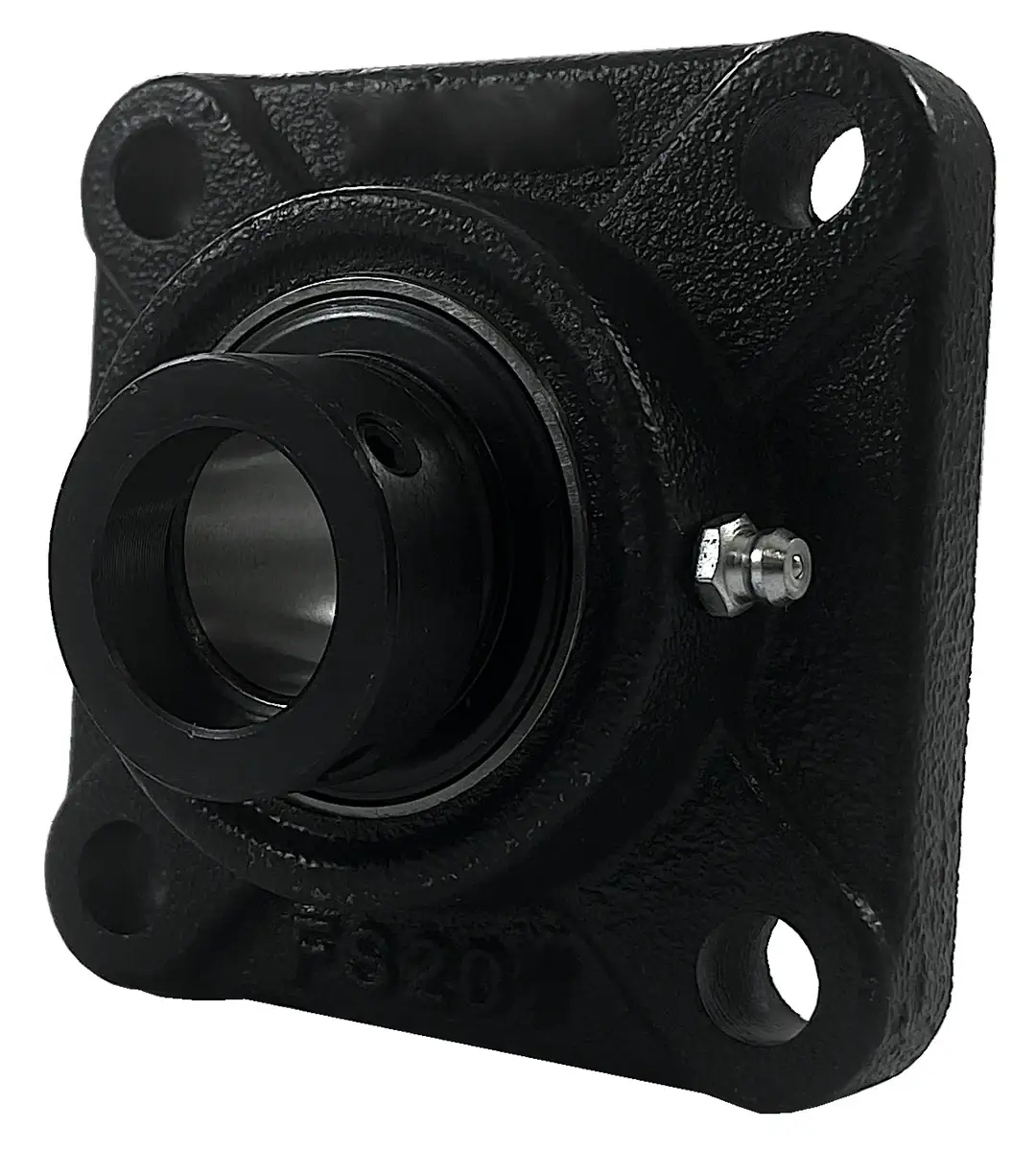

HCFS204-12 bearing is a 3/4" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 3/4" shaft. HCFS204-12 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS204-12 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS204-12 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS204-12 bearings, and we will be happy to assist you!

HCFS204-12 Bearing Dimensions

• Part #: HCFS 204-12
• Shaft Diameter (d): 3/4"
• Dimension (A): 3.38"
• Dimension (E): 2.500"
• Dimension (I): 0.75"
• Dimension (G): 0.59"
• Dimension (L): 1.16"
• Dimension (S): 0.45"
• Dimension (Z): 1.81"
• Dimension (Bi): 1.7205"
• Dimension (N): 0.6732"
• Dimension (M): 0.6732"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: HC 204-12
• Housing Number: FS 204
• Weight (LBS): 2.0
