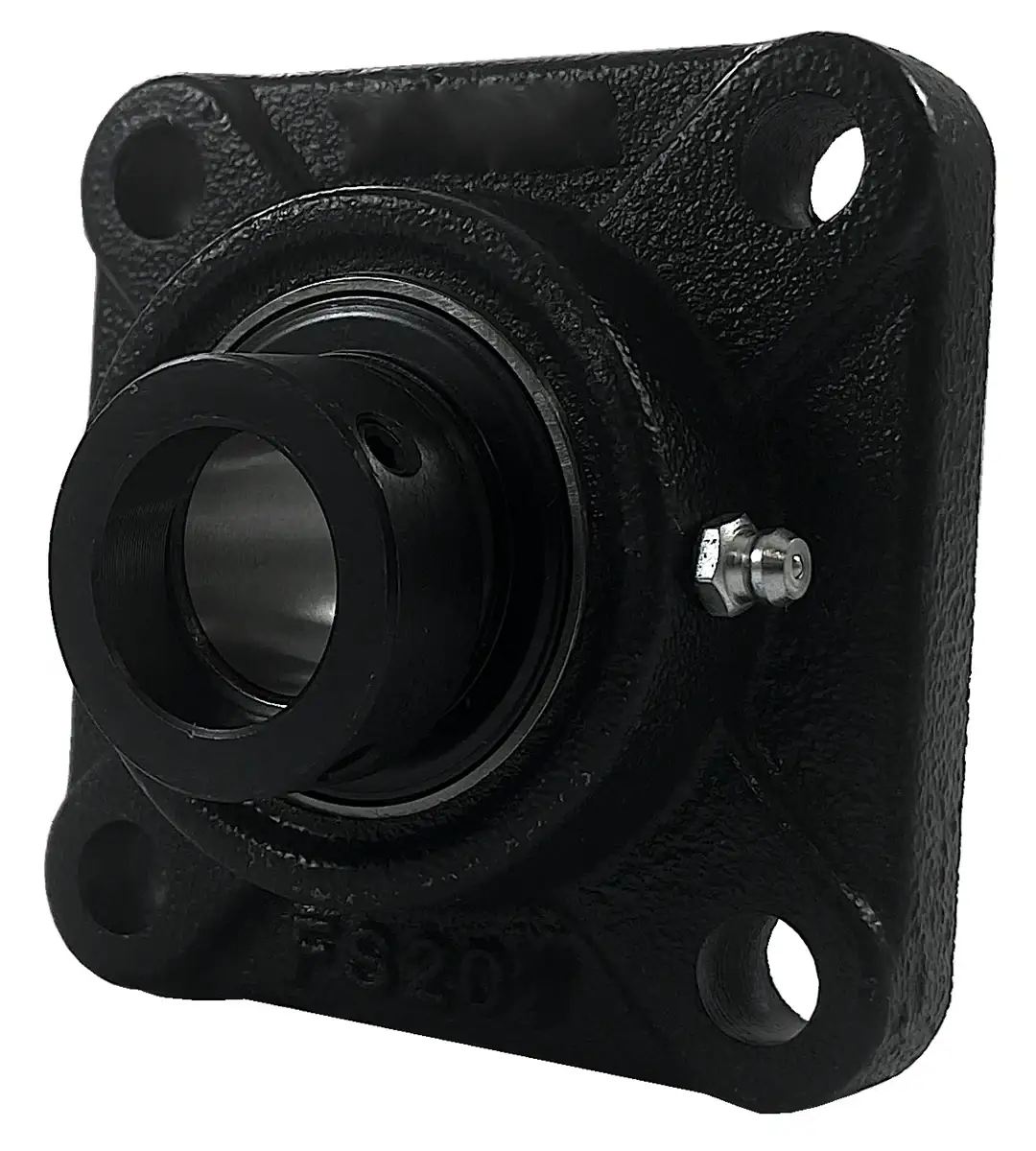

HCFS212-39 Bearing | 2-7/16" 4-Bolt Eccentric Locking Bearing

HCFS212-39 bearing is a 2-7/16" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 2-7/16" shaft. HCFS212-39 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS212-39 bearing with a 2-7/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS212-39 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS212-39 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS212-39 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS212-39 bearings, and we will be happy to assist you!

HCFS212-39 Bearing Dimensions

• Part #: HCFS 212-39
• Shaft Diameter (d): 2-7/16"
• Dimension (A): 6.89"
• Dimension (E): 5.625"
• Dimension (I): 1.34"
• Dimension (G): 0.88"
• Dimension (L): 2.13"
• Dimension (S): 0.69"
• Dimension (Z): 3.19"
• Dimension (Bi): 3.0630"
• Dimension (N): 1.2165"
• Dimension (M): 1.2205"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 10,720
• Static Load Rating (LBS): 7,516
• Bearing Insert: HC 212-39
• Housing Number: FS 212
• Weight (LBS): 12.3
