Power Transmission > Bearings > Mounted Bearings > Insert Bearings

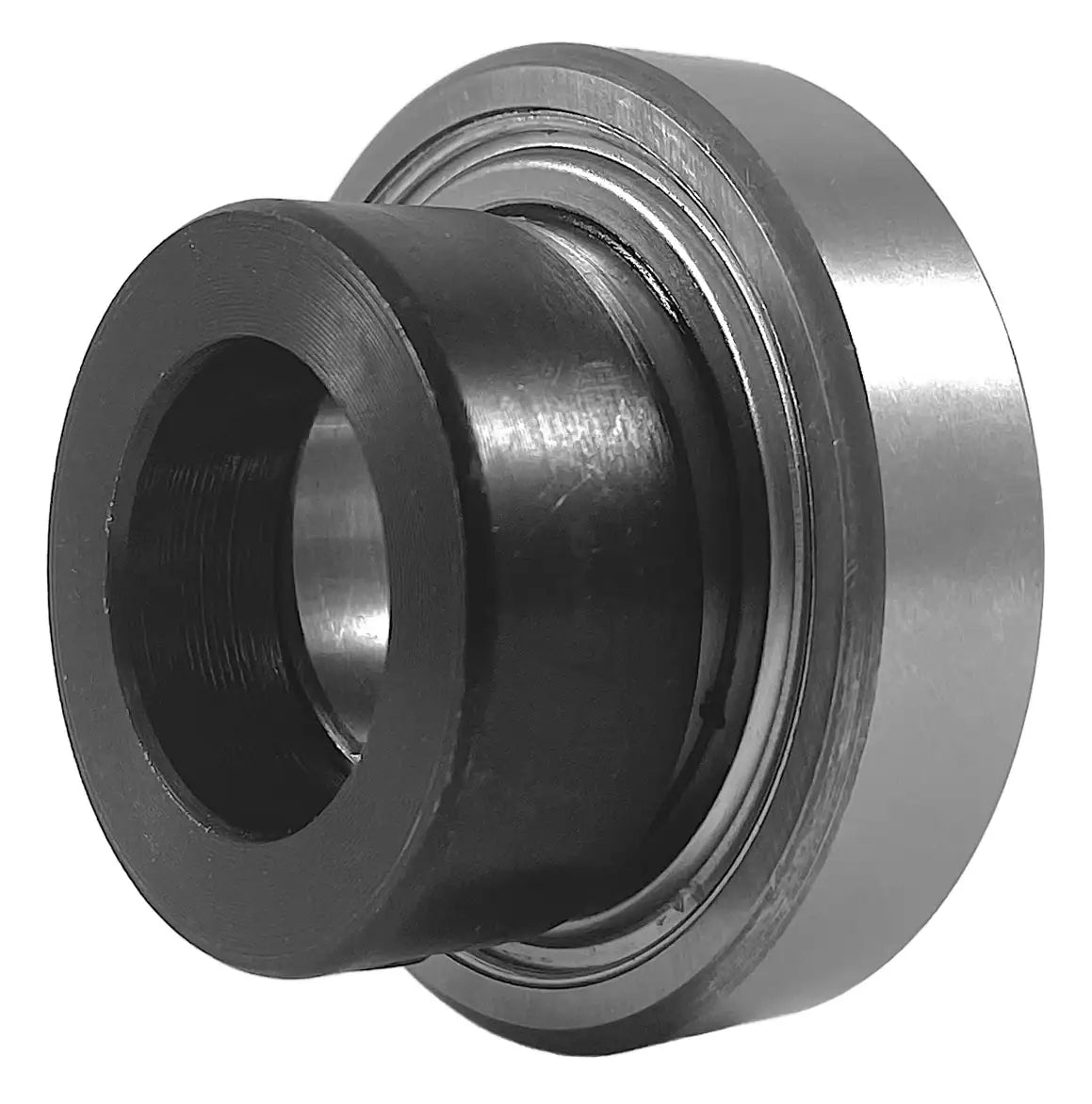

SA202-10 Insert Bearing | 5/8" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$23.75
SKU: 2278-SA-202-10-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SA202-10 Insert Bearing | 5/8" Insert Bearing Features
SA202-10 Insert Bearing | 5/8" Insert Bearing Specifications
SA202-10 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 5/8" shaft. Our SA202-10 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SA202-10 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SA202-10 bearings, contact our customer service and, we will be happy to assist you!
SA202-10 Bearing Dimensions
- Part #: SA 202-10
- Shaft Diameter (d): 5/8"
- Setscrew Used: 1/4-28"
- Dimension (D): 1.5748"
- Dimension (Bi): 1.1260"
- Dimension (Be): 0.4724"
- Dimension (N): 0.2362"
- Dimension (M): 0.5157"
- Dimension (W): 1.126"
- Dimension (K): 0.532"
- Dimension (G): 0.1969"
- Dimension (T): 0.1378"
- Dynamic Load Rating (LBS): 2,147
- Static Load Rating (LBS): 1,075
- Weight (LBS): 0.4
- Part #: SA 202-10
- Shaft Diameter (d): 5/8"
- Setscrew Used: 1/4-28"
- Dimension (D): 1.5748"
- Dimension (Bi): 1.1260"
- Dimension (Be): 0.4724"
- Dimension (N): 0.2362"
- Dimension (M): 0.5157"
- Dimension (W): 1.126"
- Dimension (K): 0.532"
- Dimension (G): 0.1969"
- Dimension (T): 0.1378"
- Dynamic Load Rating (LBS): 2,147
- Static Load Rating (LBS): 1,075
- Weight (LBS): 0.4
