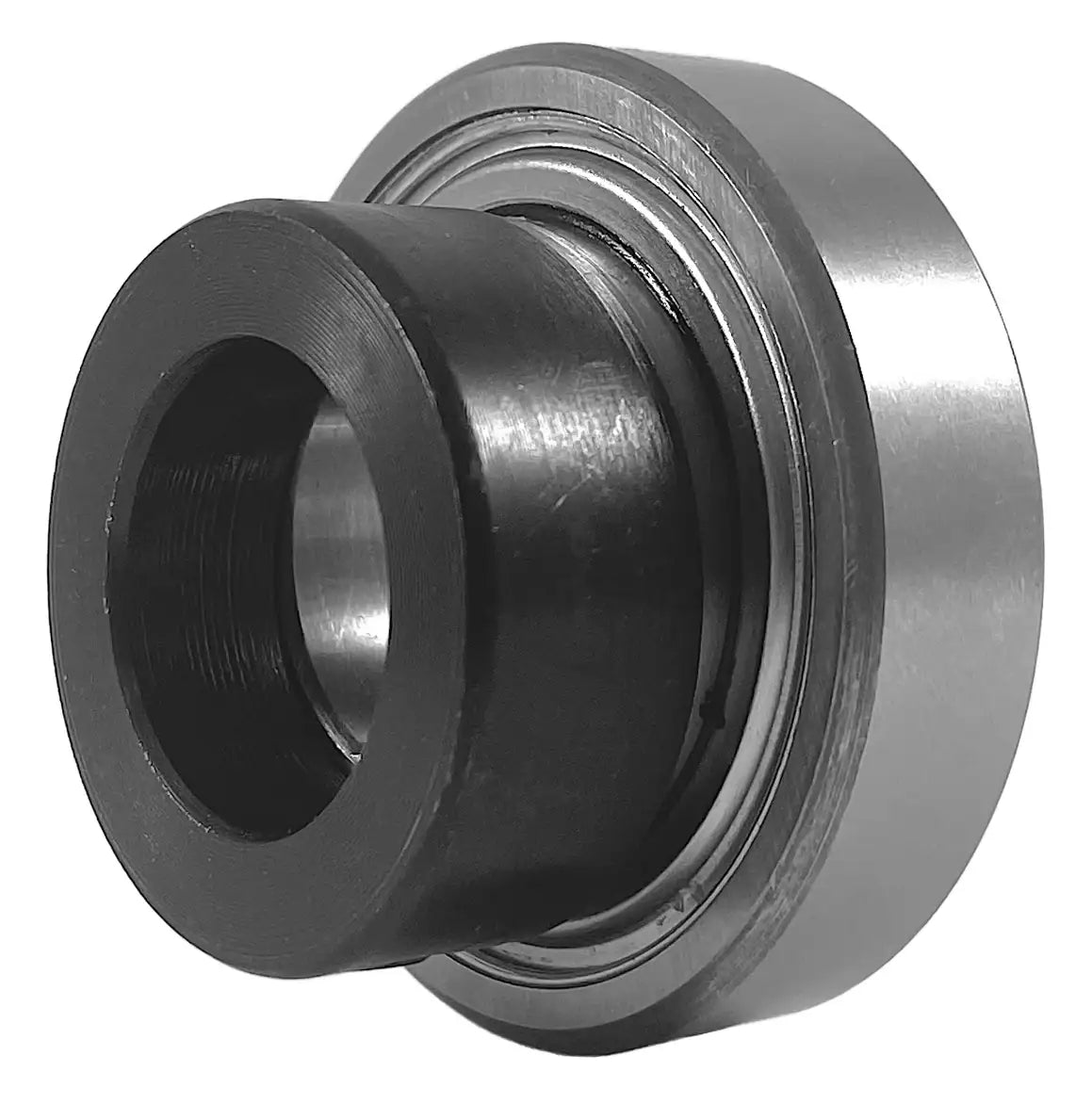

SA206-20 Insert Bearing | 1-1/4" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$24.75
SKU: 2278-SA-206-20-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SA206-20 Insert Bearing | 1-1/4" Insert Bearing Features
SA206-20 Insert Bearing | 1-1/4" Insert Bearing Specifications
SA206-20 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 1-1/4" shaft. Our SA206-20 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SA206-20 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SA206-20 bearings, contact our customer service and, we will be happy to assist you!
SA206-20 Bearing Dimensions
- Part #: SA 206-20
- Shaft Diameter (d): 1-1/4"
- Setscrew Used: 1/4-28"
- Dimension (D): 2.441"
- Dimension (Bi): 1.4055"
- Dimension (Be): 0.6299"
- Dimension (N): 0.3150"
- Dimension (M): 0.6220"
- Dimension (W): 1.752"
- Dimension (K): 0.626"
- Dimension (G): 0.2362"
- Dimension (T): 0.1929"
- Dynamic Load Rating (LBS): 4,377
- Static Load Rating (LBS): 2,569
- Weight (LBS): 0.9
- Part #: SA 206-20
- Shaft Diameter (d): 1-1/4"
- Setscrew Used: 1/4-28"
- Dimension (D): 2.441"
- Dimension (Bi): 1.4055"
- Dimension (Be): 0.6299"
- Dimension (N): 0.3150"
- Dimension (M): 0.6220"
- Dimension (W): 1.752"
- Dimension (K): 0.626"
- Dimension (G): 0.2362"
- Dimension (T): 0.1929"
- Dynamic Load Rating (LBS): 4,377
- Static Load Rating (LBS): 2,569
- Weight (LBS): 0.9
