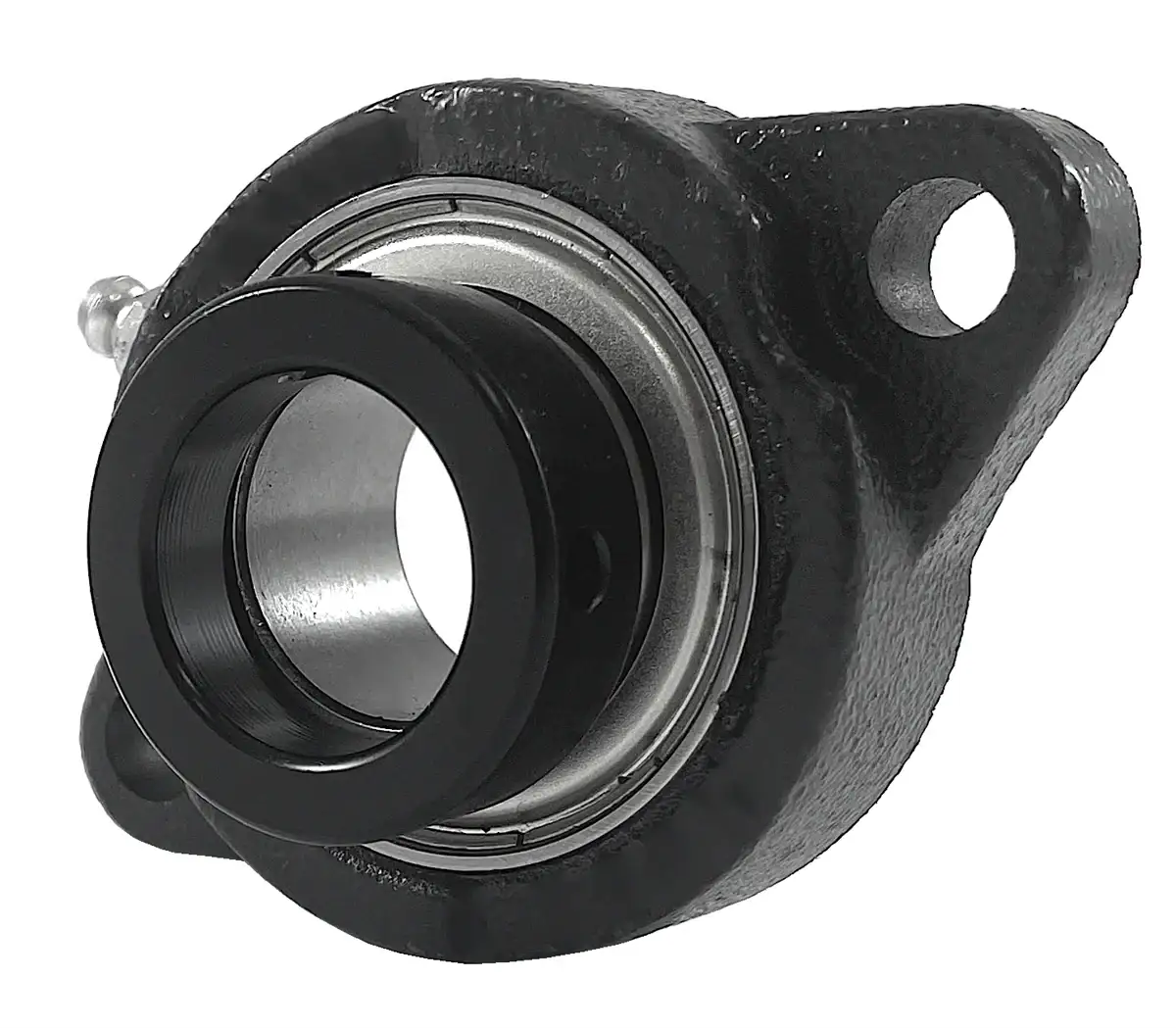

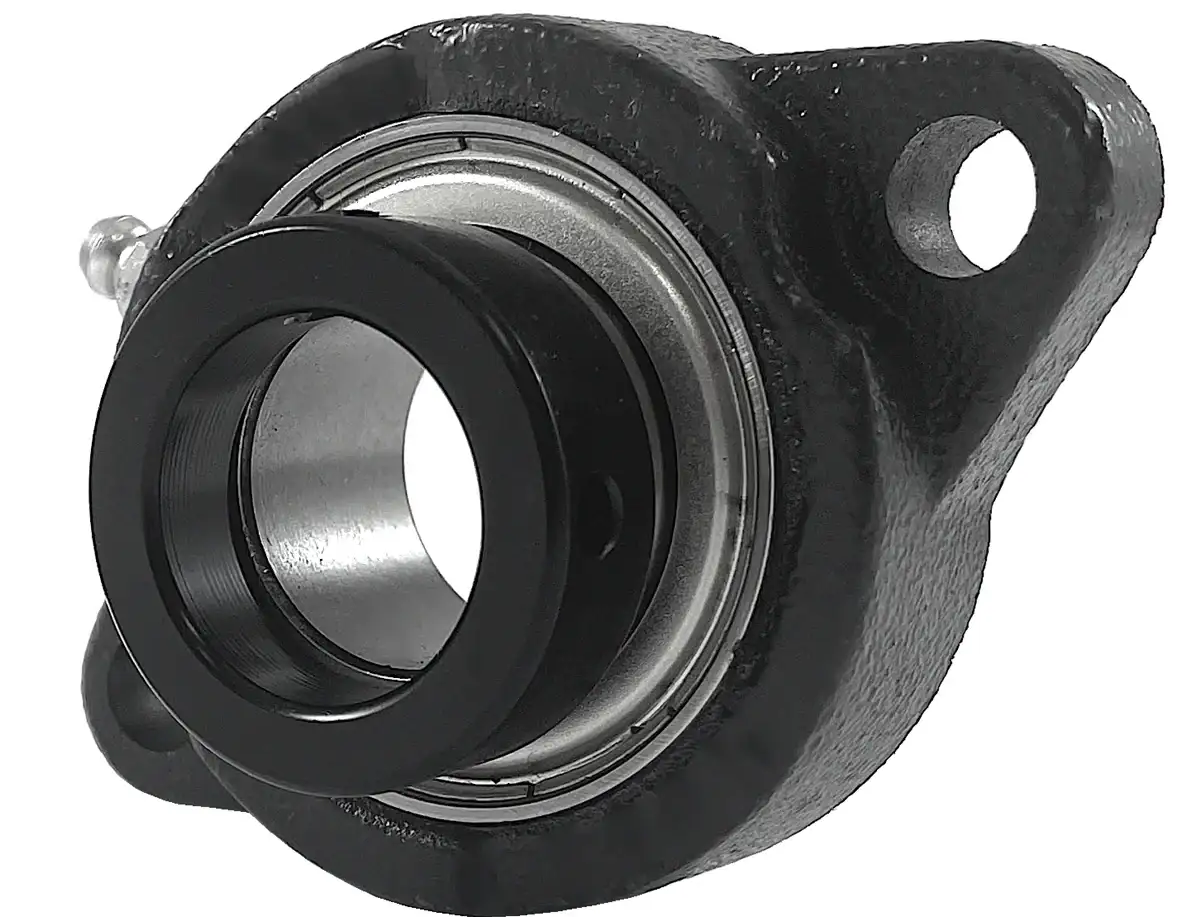

SALF207-22 Bearing | 1-3/8" 2-Bolt Eccentric Locking Bearing

SALF207-22 bearing is a 1-3/8" bore two-bolt light-duty flange bearing that utilizes an eccentric locking collar device to secure to a 1-3/8" shaft. SALF207-22 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SALF207-22 bearing with a 1-3/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SALF207-22 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SALF207-22 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SALF207-22 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SALF207-22 bearings, and we will be happy to assist you!

SALF207-22 Bearing Dimensions

• Part #: SALF 207-22
• Shaft Diameter (d): 1-3/8"
• Dimension (A): 4.80"
• Dimension (E): 3.937"
• Dimension (I): 0.51"
• Dimension (G): 0.51"
• Dimension (L): 0.94"
• Dimension (S): 0.47"
• Dimension (B): 3.50"
• Dimension (Z): 1.71"
• Dimension (Bi): 1.5315"
• Dimension (N): 0.3346"
• Dimension (M): 0.6654"
• Bolt Used: 3/4
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: SA 207-22
• Housing Number: LF 207
• Weight (LBS): 2.9
