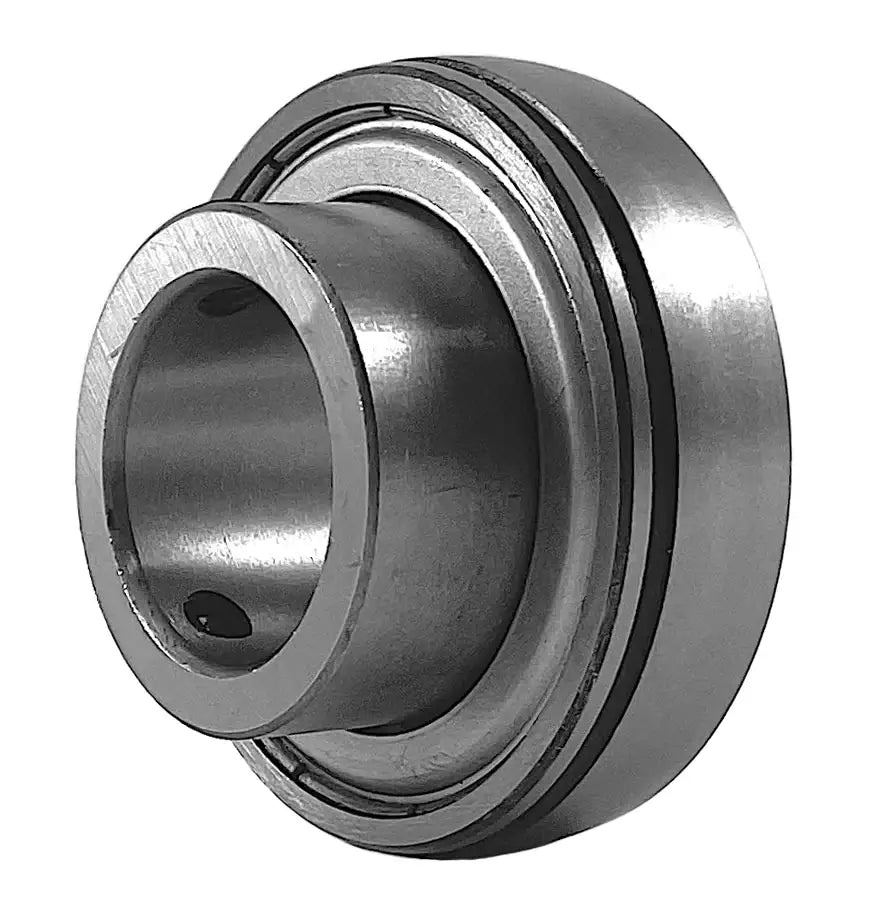

SB204-12 Bearing | 3/4" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$16.75
SKU: 2278-SB-204-12-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SB204-12 Bearing | 3/4" Insert Bearing Features
SB204-12 Bearing | 3/4" Insert Bearing Specifications
SB204-12 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes set-screws to secure to a 3/4" shaft. Our SB204-12 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SB204-12 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SB204-12 bearings, contact our customer service and, we will be happy to assist you!
SB204-12 Bearing Dimensions
- Part #: SB204-12
- Shaft Diameter (d): 3/4"
- Setscrew Used: 1/4-28
- Dimension (D): 1.8504"
- Dimension (Bi): 0.9843"
- Dimension (Be): 0.5512"
- Dimension (N): 0.2756"
- Dimension (M): 0.7087"
- Dimension (G): 0.1969"
- Dimension (T): 0.1575"
- Dynamic Load Rating (LBS): 2,883
- Static Load Rating (LBS): 1,496
- Weight (LBS): 0.3
- Part #: SB204-12
- Shaft Diameter (d): 3/4"
- Setscrew Used: 1/4-28
- Dimension (D): 1.8504"
- Dimension (Bi): 0.9843"
- Dimension (Be): 0.5512"
- Dimension (N): 0.2756"
- Dimension (M): 0.7087"
- Dimension (G): 0.1969"
- Dimension (T): 0.1575"
- Dynamic Load Rating (LBS): 2,883
- Static Load Rating (LBS): 1,496
- Weight (LBS): 0.3
