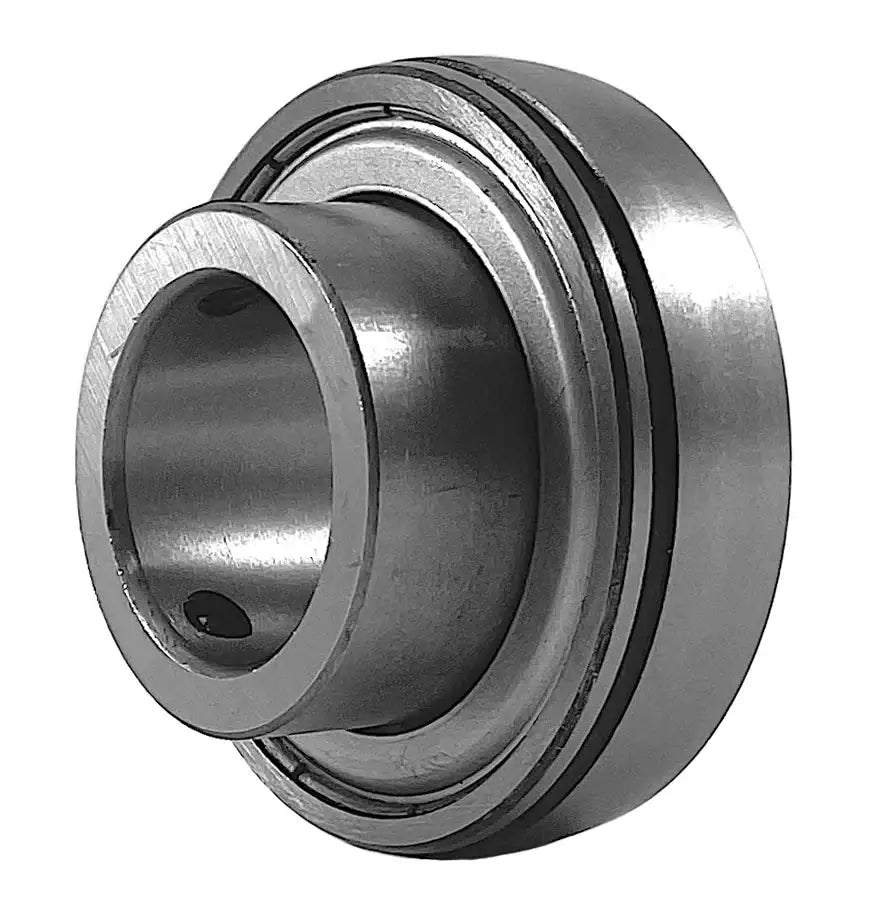

SB204 Bearing | 20mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$17.75
SKU: 2278-SB-204-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SB204 Bearing | 20mm Insert Bearing Features
SB204 Bearing | 20mm Insert Bearing Specifications
SB204 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes set-screws to secure to a 20mm shaft. Our SB204 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SB204 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SB204 bearings, contact our customer service and, we will be happy to assist you!
SB204 Bearing Dimensions
- Part #: SB204
- Shaft Diameter (d): 20mm
- Setscrew Used: M6 x 1
- Dimension (D): 47.0mm
- Dimension (Bi): 25.0mm
- Dimension (Be): 14.0mm
- Dimension (N): 7.0mm
- Dimension (M): 18.0mm
- Dimension (G): 5.0mm
- Dimension (T): 4.0mm
- Dynamic Load Rating (kN): 12.82
- Static Load Rating (kN): 6.65
- Weight (kg): 0.1
- Part #: SB204
- Shaft Diameter (d): 20mm
- Setscrew Used: M6 x 1
- Dimension (D): 47.0mm
- Dimension (Bi): 25.0mm
- Dimension (Be): 14.0mm
- Dimension (N): 7.0mm
- Dimension (M): 18.0mm
- Dimension (G): 5.0mm
- Dimension (T): 4.0mm
- Dynamic Load Rating (kN): 12.82
- Static Load Rating (kN): 6.65
- Weight (kg): 0.1
