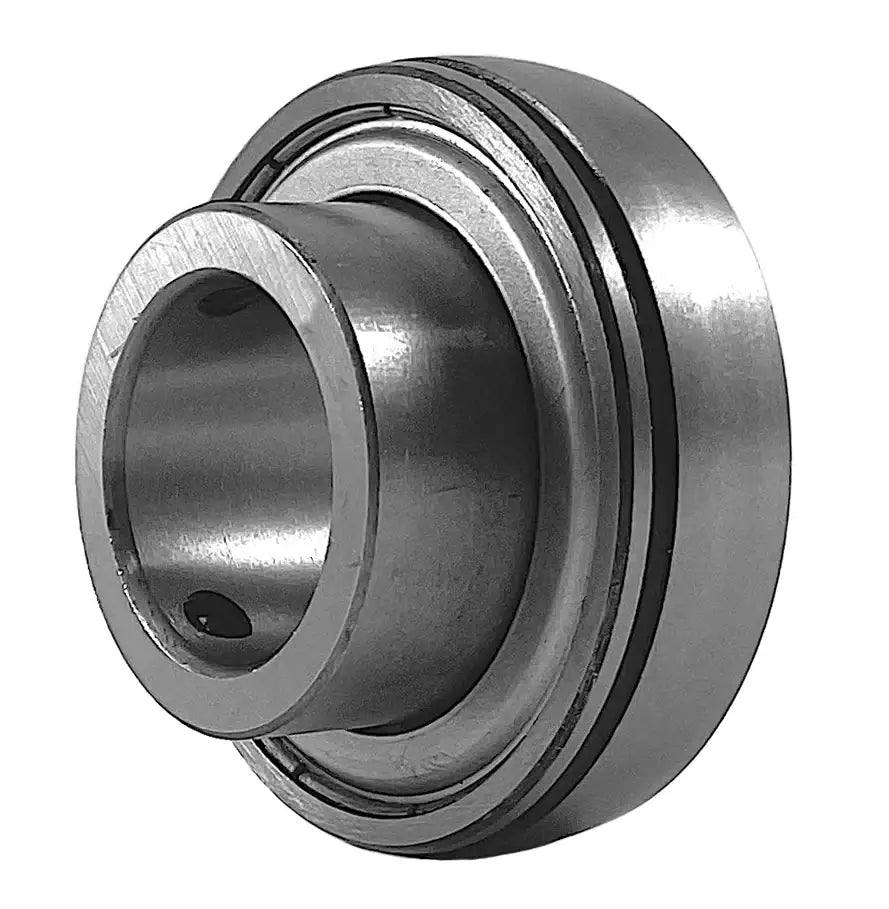

SB205-16 Bearing | 1" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$17.75
SKU: 2278-SB-205-16-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SB205-16 Bearing | 1" Insert Bearing Features
SB205-16 Bearing | 1" Insert Bearing Specifications
SB205-16 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes set-screws to secure to a 1" shaft. Our SB205-16 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SB205-16 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SB205-16 bearings, contact our customer service and, we will be happy to assist you!
SB205-16 Bearing Dimensions
- Part #: SB205-16
- Shaft Diameter (d): 1"
- Setscrew Used: 1/4-28
- Dimension (D): 2.0472"
- Dimension (Bi): 1.0630"
- Dimension (Be): 0.5906"
- Dimension (N): 0.2953"
- Dimension (M): 0.7677"
- Dimension (G): 0.2165"
- Dimension (T): 0.1693"
- Dynamic Load Rating (LBS): 3,155
- Static Load Rating (LBS): 1,810
- Weight (LBS): 0.4
- Part #: SB205-16
- Shaft Diameter (d): 1"
- Setscrew Used: 1/4-28
- Dimension (D): 2.0472"
- Dimension (Bi): 1.0630"
- Dimension (Be): 0.5906"
- Dimension (N): 0.2953"
- Dimension (M): 0.7677"
- Dimension (G): 0.2165"
- Dimension (T): 0.1693"
- Dynamic Load Rating (LBS): 3,155
- Static Load Rating (LBS): 1,810
- Weight (LBS): 0.4
