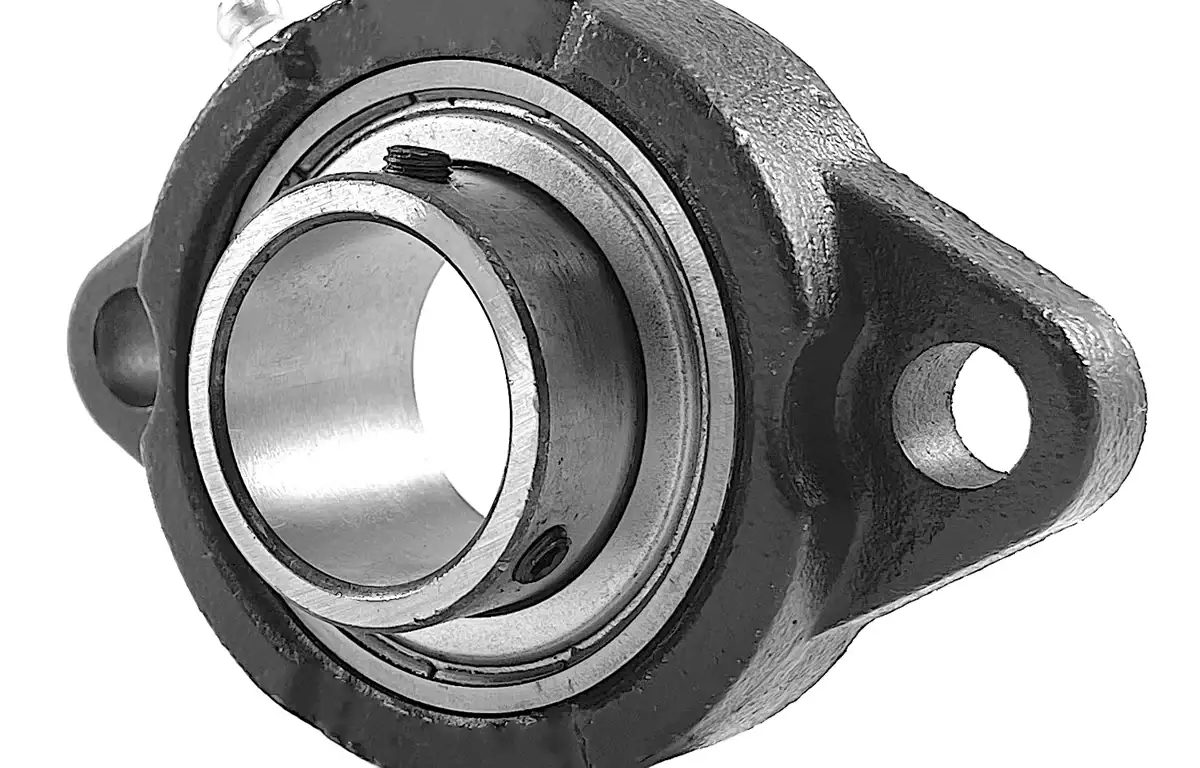

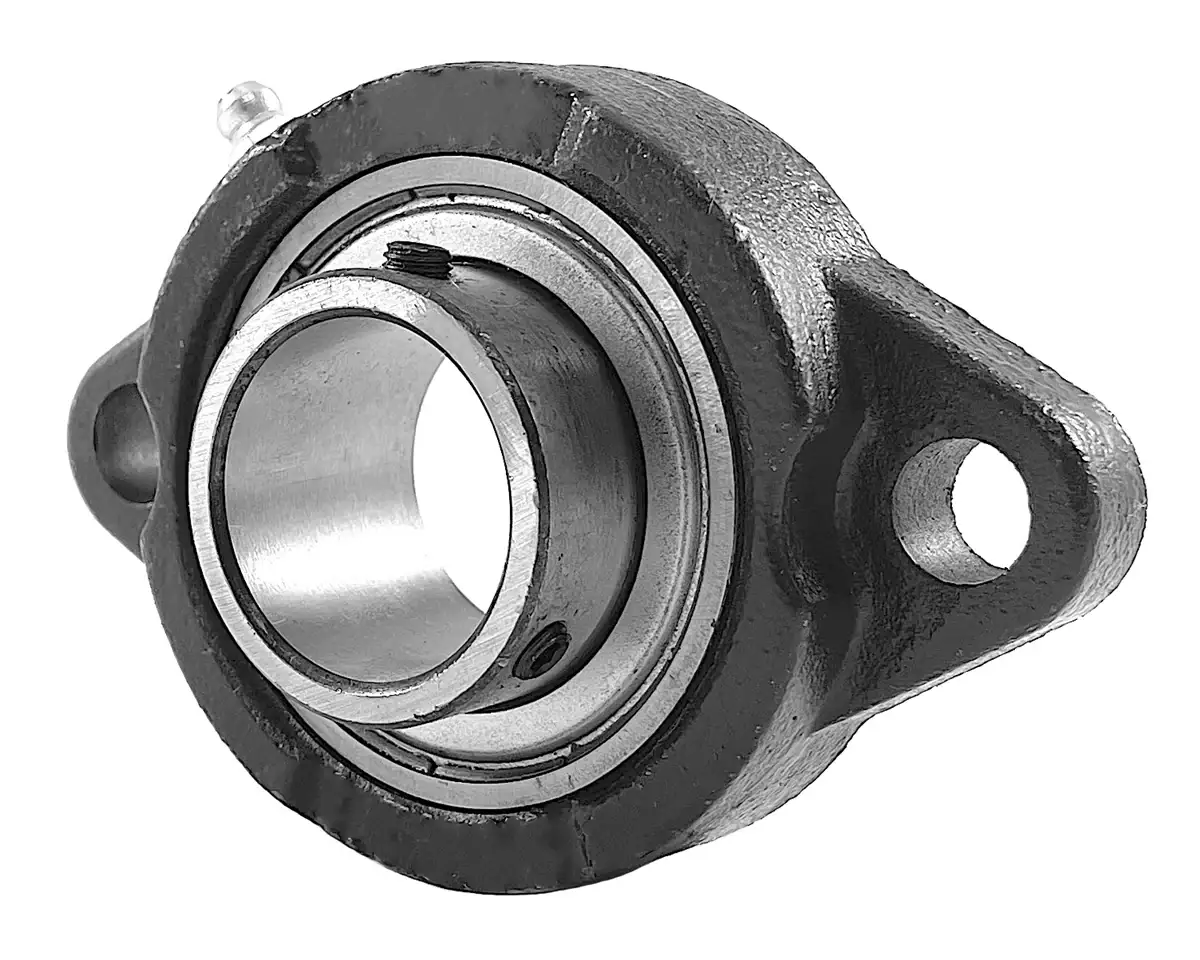

SBLF201-8 Bearing | 1/2" 2-Bolt Flange Bearing

SBLF201-8 bearing is a 1/2" bore two-bolt light-duty flange bearing that utilizes set screws to secure to a 1/2" shaft. SBLF201-8 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SBLF201-8 bearing with a 1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBLF201-8 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBLF201-8 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBLF201-8 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBLF201-8 bearings, and we will be happy to assist you!

SBLF201-8 Bearing Dimensions

• Part #:SBLF
• Shaft Diameter (d): 1/2"
• Dimension (A): 3.19"
• Dimension (E): 2.500"
• Dimension (I): 0.37"
• Dimension (G): 0.37"
• Dimension (L): 0.71"
• Dimension (S): 0.31"
• Dimension (B): 2.20"
• Dimension (Z): 1.00"
• Dimension (Bi): 0.8661"
• Dimension (N): 0.2362"
• Dimension (M): 0.6299"
• Bolt Used: 1/4
• Dynamic Load Rating (LBS): 2,147
• Static Load Rating (LBS): 1,075
• Bearing Insert: SB
• Housing Number: LF 203
• Weight (LBS): 0.4
