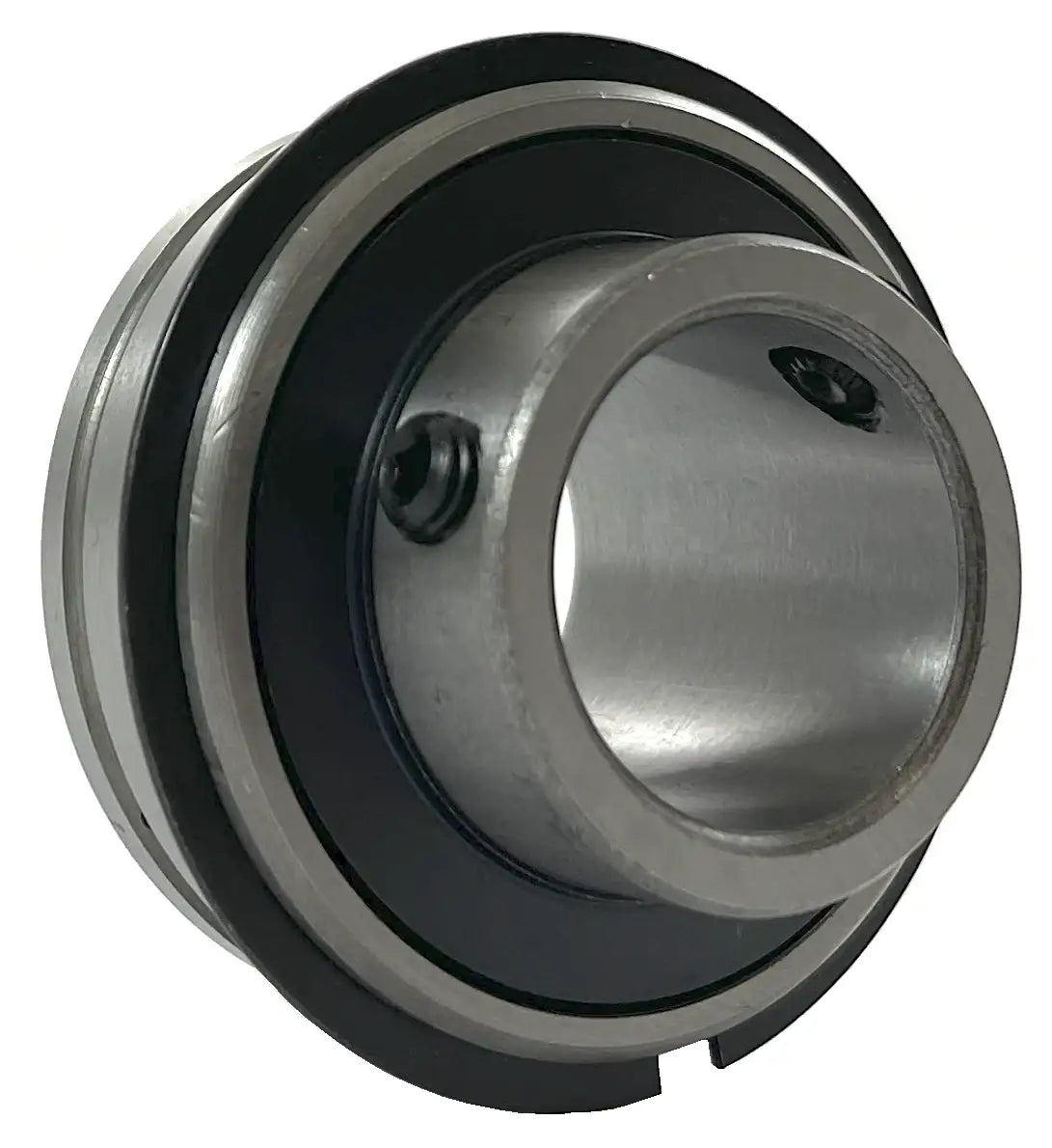

SER203 Insert Bearing | 17mm Insert Bearing With Snap Ring
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-SER-203-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SER203 Insert Bearing | 17mm Insert Bearing With Snap Ring Features
SER203 Insert Bearing | 17mm Insert Bearing With Snap Ring Specifications
SER203 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 17mm shaft. Our SER203 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER203 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER203 bearings, contact our customer service and, we will be happy to assist you!
SER203 Bearing Dimensions
- Part #: SER 203
- Shaft Diameter (d): 17mm
- Setscrew Used: M6 x 1
- Dimension (D): 47.0mm
- Dimension (Bi): 31.0mm
- Dimension (Be): 15.9mm
- Dimension (N): 10.3mm
- Dimension (M): 20.7mm
- Dimension (A): 1.1mm
- Dimension (AN): 2.4mm
- Dimension (Y): 52.7mm
- Dimension (G): 5.0mm
- Dimension (T): 4.1mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.3
- Part #: SER 203
- Shaft Diameter (d): 17mm
- Setscrew Used: M6 x 1
- Dimension (D): 47.0mm
- Dimension (Bi): 31.0mm
- Dimension (Be): 15.9mm
- Dimension (N): 10.3mm
- Dimension (M): 20.7mm
- Dimension (A): 1.1mm
- Dimension (AN): 2.4mm
- Dimension (Y): 52.7mm
- Dimension (G): 5.0mm
- Dimension (T): 4.1mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.3
