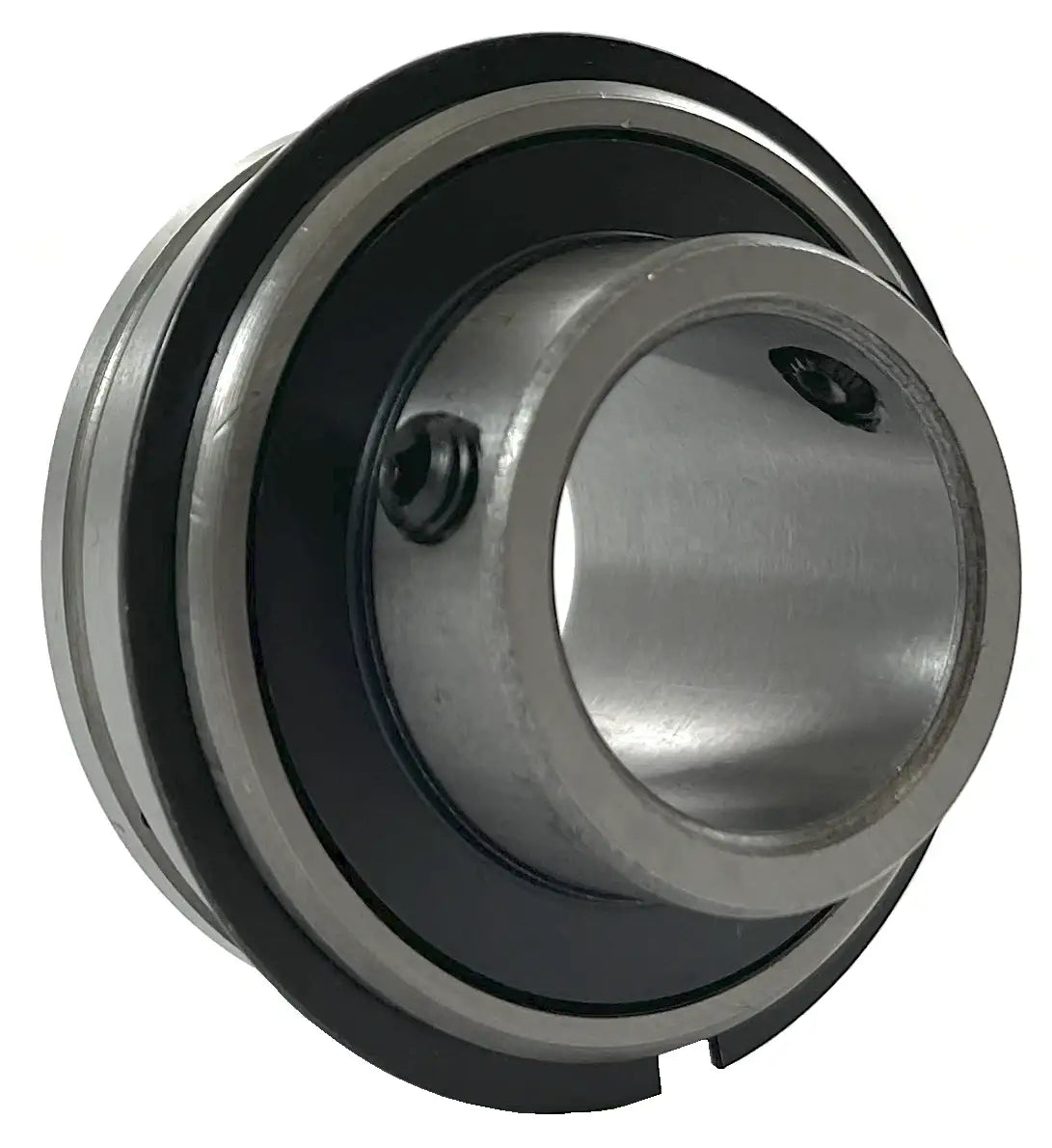

SER207 Insert Bearing | 35mm Insert Bearing With Snap Ring
Note:
Custom Cut to Length Chain Also Available
$37.99
SKU: 2278-SER-207-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SER207 Insert Bearing | 35mm Insert Bearing With Snap Ring Features
SER207 Insert Bearing | 35mm Insert Bearing With Snap Ring Specifications
SER207 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 35mm shaft. Our SER207 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER207 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER207 bearings, contact our customer service and, we will be happy to assist you!
SER207 Bearing Dimensions
- Part #: SER 207
- Shaft Diameter (d): 35mm
- Setscrew Used: M8 x 1
- Dimension (D): 72.0mm
- Dimension (Bi): 42.9mm
- Dimension (Be): 23.8mm
- Dimension (N): 17.5mm
- Dimension (M): 25.4mm
- Dimension (A): 1.7mm
- Dimension (AN): 3.2mm
- Dimension (Y): 78.6mm
- Dimension (G): 6.4mm
- Dimension (T): 6.3mm
- Dynamic Load Rating (kN): 25.69
- Static Load Rating (kN): 15.56
- Weight (kg): 0.6
- Part #: SER 207
- Shaft Diameter (d): 35mm
- Setscrew Used: M8 x 1
- Dimension (D): 72.0mm
- Dimension (Bi): 42.9mm
- Dimension (Be): 23.8mm
- Dimension (N): 17.5mm
- Dimension (M): 25.4mm
- Dimension (A): 1.7mm
- Dimension (AN): 3.2mm
- Dimension (Y): 78.6mm
- Dimension (G): 6.4mm
- Dimension (T): 6.3mm
- Dynamic Load Rating (kN): 25.69
- Static Load Rating (kN): 15.56
- Weight (kg): 0.6
