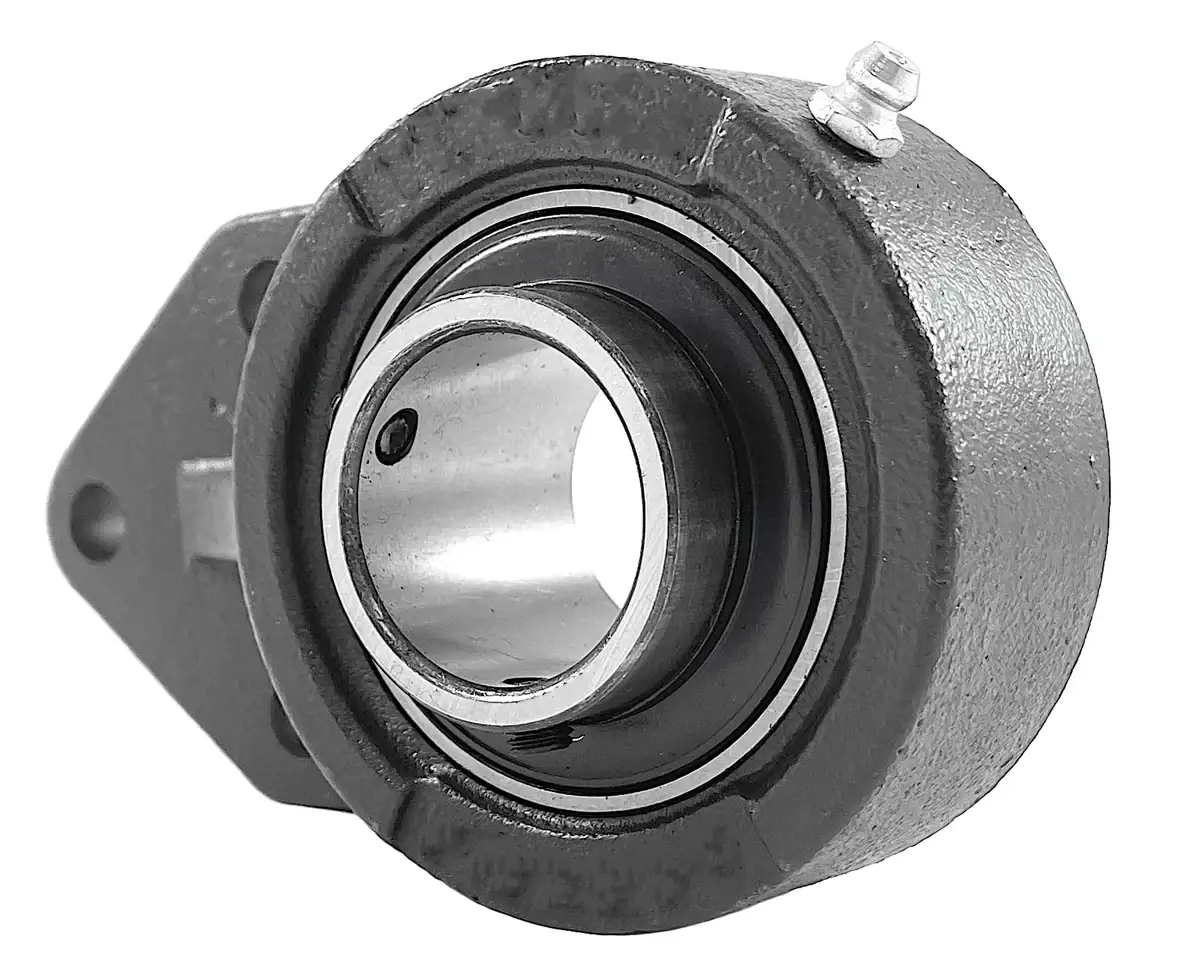

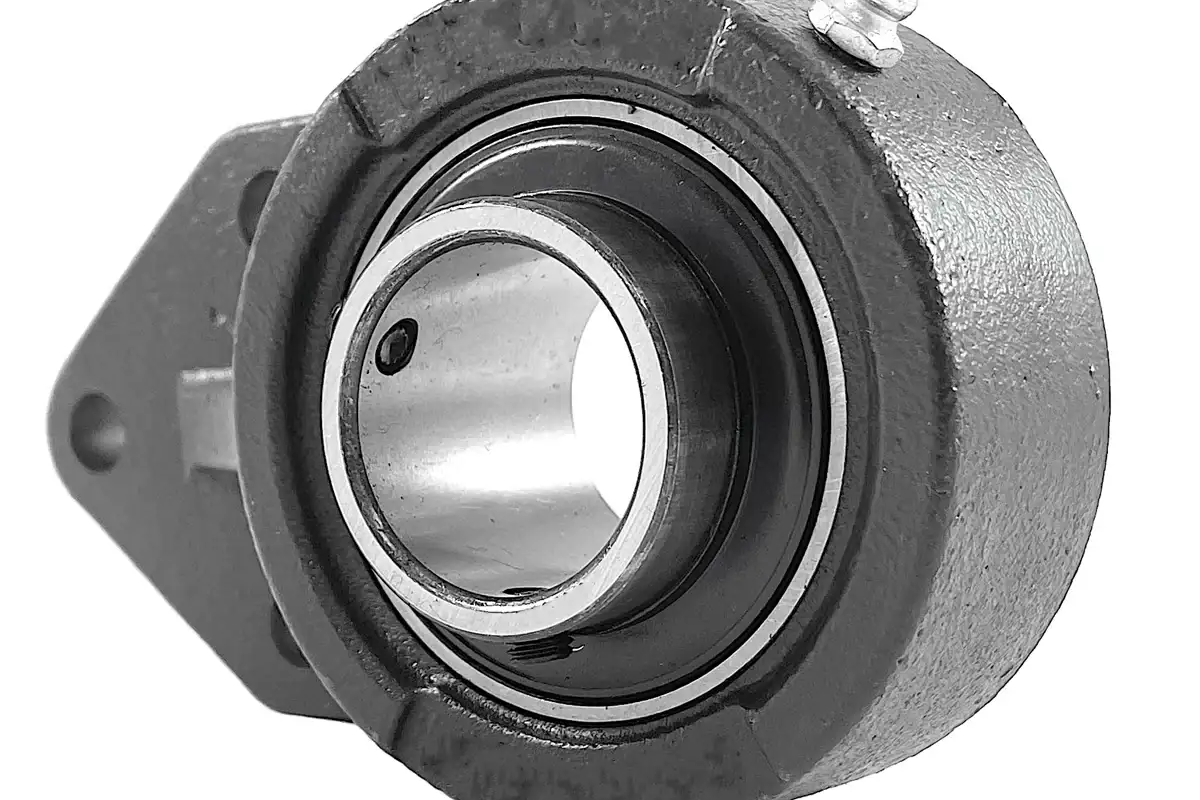

UCFBS205-14 Bearing | 7/8" 3-Bolt Flange Bearing

UCFBS205-14 bearing is a 7/8" bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 7/8" shaft. UCFBS205-14 flange bearings are designed with an inch-based housing and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFBS205-14 bearing with a 7/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFBS205-14 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFBS205-14 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFBS205-14 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFBS205-14 bearings, and we will be happy to assist you!

UCFBS205-14 Bearing Dimensions

• Part #: UCFBS 205-14
• Shaft Diameter (d): 7/8"
• Dimension (A): 4.76"
• Dimension (H): 1.81"
• Dimension (E): 1.626"
• Dimension (J): 1.122"
• Dimension (I): 0.66"
• Dimension (G): 0.37"
• Dimension (L): 1.12"
• Dimension (S): 0.39"
• Dimension (B): 2.76"
• Dimension (F): 2.50"
• Dimension (Z): 1.44"
• Dimension (Bi): 1.3425"
• Dimension (N): 0.5630"
• Dimension (M): 0.7795"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: UC 205-14
• Housing Number: FBS 205
• Weight (LBS): 1.8
