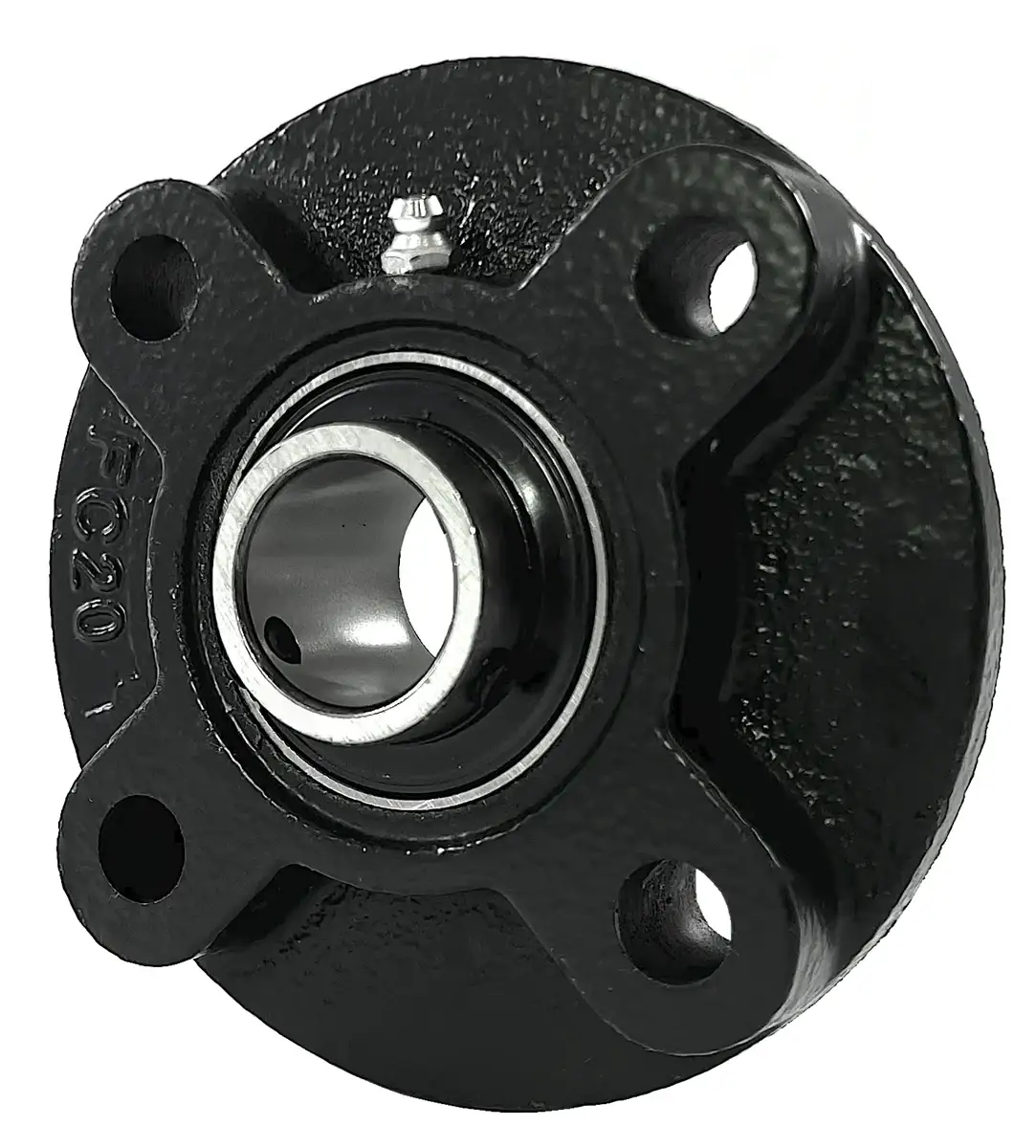

UCFCS207-20 Bearing | 1-1/4" 4-Bolt Flange Bearing

UCFCS207-20 bearing is a 1-1/4" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 1-1/4" shaft and has an inch based housing. UCFCS207-20 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCS207-20 bearing with a 1-1/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCS207-20 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCS207-20 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCS207-20 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCS207-20 bearings, and we will be happy to assist you!

UCFCS207-20 Bearing Dimensions

• Part #: UCFCS207-20
• Shaft Diameter (d): 1-1/4"
• Dimension (A): 5.00"
• Dimension (P): 4.125"
• Dimension (E): 2.94"
• Dimension (I): 0.31"
• Dimension (S): 0.47"
• Dimension (J): 0.38"
• Dimension (K): 0.38"
• Dimension (G): 0.88"
• Dimension (F): 3.375"
• Dimension (Z): 1.31"
• Dimension (Bi): 1.6890"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UC 207-20
• Housing Number: FCS 207
• Weight (LBS): 3.5
