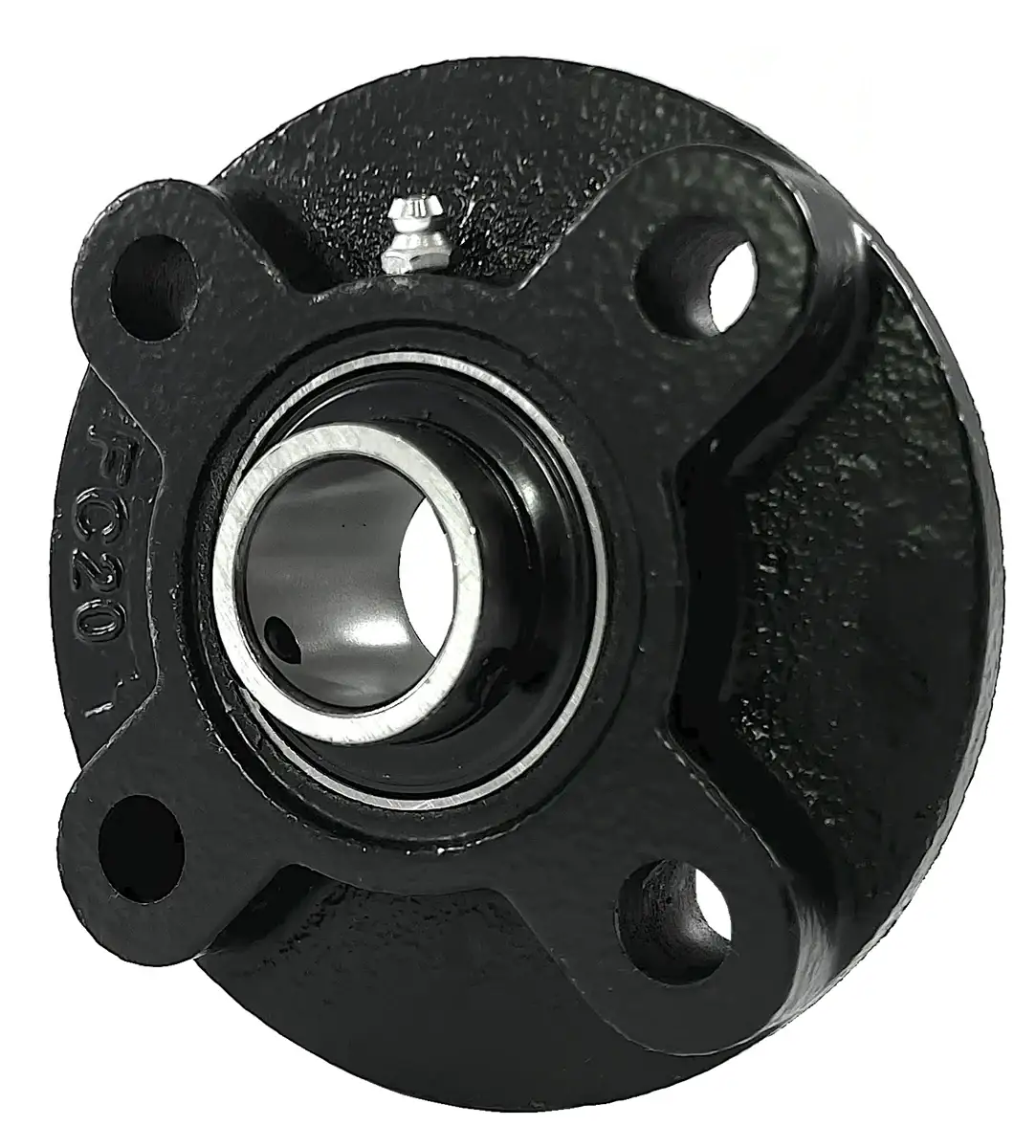

UCFCS213-40 Bearing | 2-1/2" 4-Bolt Flange Bearing

UCFCS213-40 bearing is a 2-1/2" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 2-1/2" shaft and has an inch based housing. UCFCS213-40 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCS213-40 bearing with a 2-1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCS213-40 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCS213-40 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCS213-40 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCS213-40 bearings, and we will be happy to assist you!

UCFCS213-40 Bearing Dimensions

• Part #: UCFCS213-40
• Shaft Diameter (d): 2-1/2"
• Dimension (A): 7.63"
• Dimension (P): 6.500"
• Dimension (E): 4.63"
• Dimension (I): 0.43"
• Dimension (S): 0.56"
• Dimension (J): 0.79"
• Dimension (K): 0.56"
• Dimension (G): 1.30"
• Dimension (F): 5.500"
• Dimension (Z): 2.00"
• Dimension (Bi): 2.5630"
• Dimension (N): 1.0000"
• Dimension (M): 1.5630"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 12,859
• Static Load Rating (LBS): 8,994
• Bearing Insert: UC 213-40
• Housing Number: FCS 213
• Weight (LBS): 11.9
