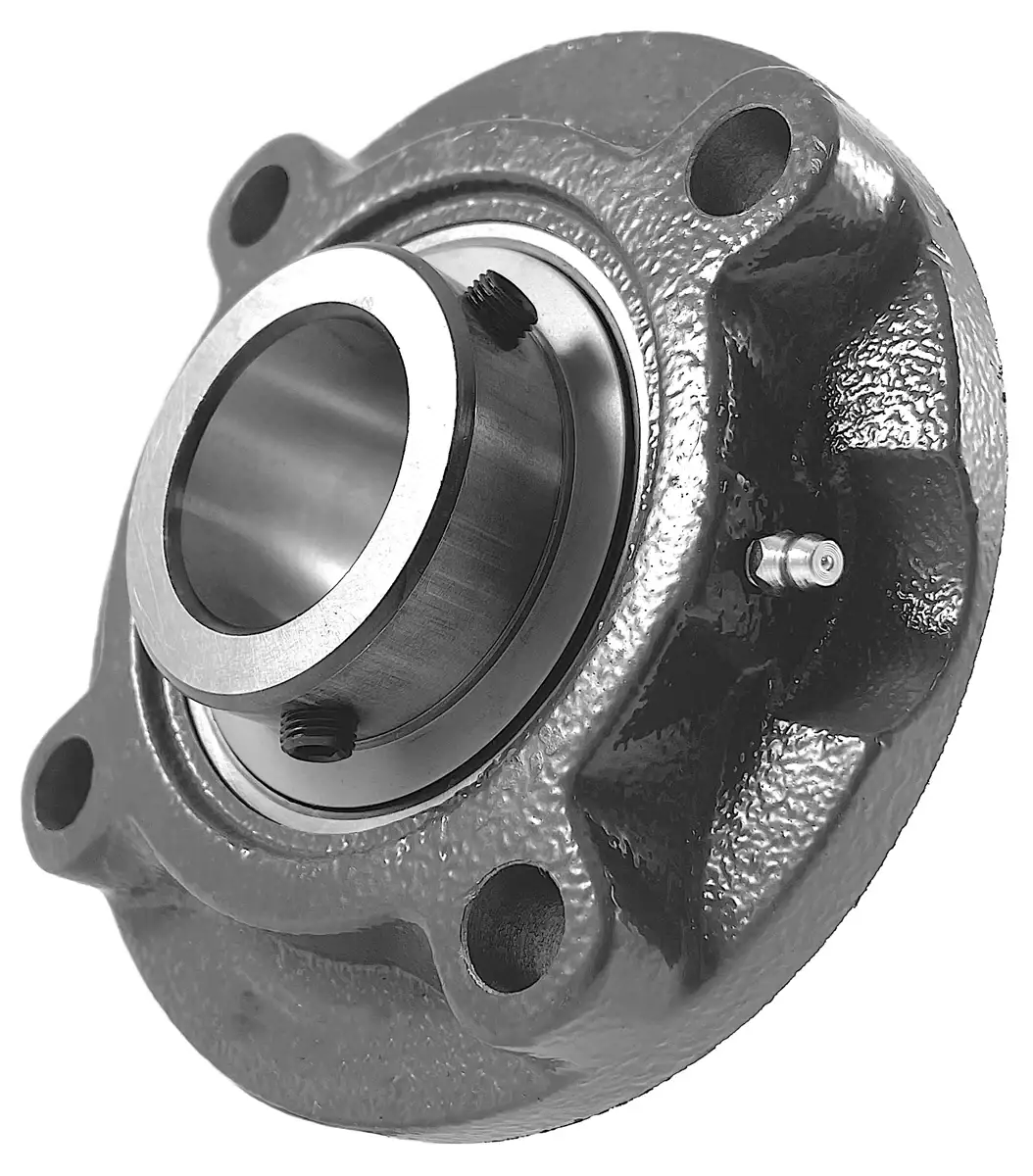

UCFCSX14-43 Bearing | 2-11/16" 4-Bolt Flange Bearing

UCFCSX14-43 bearing is a 2-11/16" bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 2-11/16" shaft and has an inch based housing. UCFCSX14-43 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCSX14-43 bearing with a 2-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCSX14-43 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCSX14-43 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCSX14-43 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCSX14-43 bearings, and we will be happy to assist you!

UCFCSX14-43 Bearing Dimensions

• Part #: UCFCSX14-43
• Shaft Diameter (d): 2-11/16"
• Dimension (A): 8.75"
• Dimension (P): 7.500"
• Dimension (E): 5.28"
• Dimension (I): 0.55"
• Dimension (S): 0.69"
• Dimension (J): 0.79"
• Dimension (K): 0.63"
• Dimension (G): 1.42"
• Dimension (F): 6.375"
• Dimension (Z): 2.30"
• Dimension (Bi): 3.0630"
• Dimension (N): 1.3110"
• Dimension (M): 1.7520"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 14,974
• Static Load Rating (LBS): 10,757
• Bearing Insert: UCX 14-43
• Housing Number: FCS 215
• Weight (LBS): 15.4
