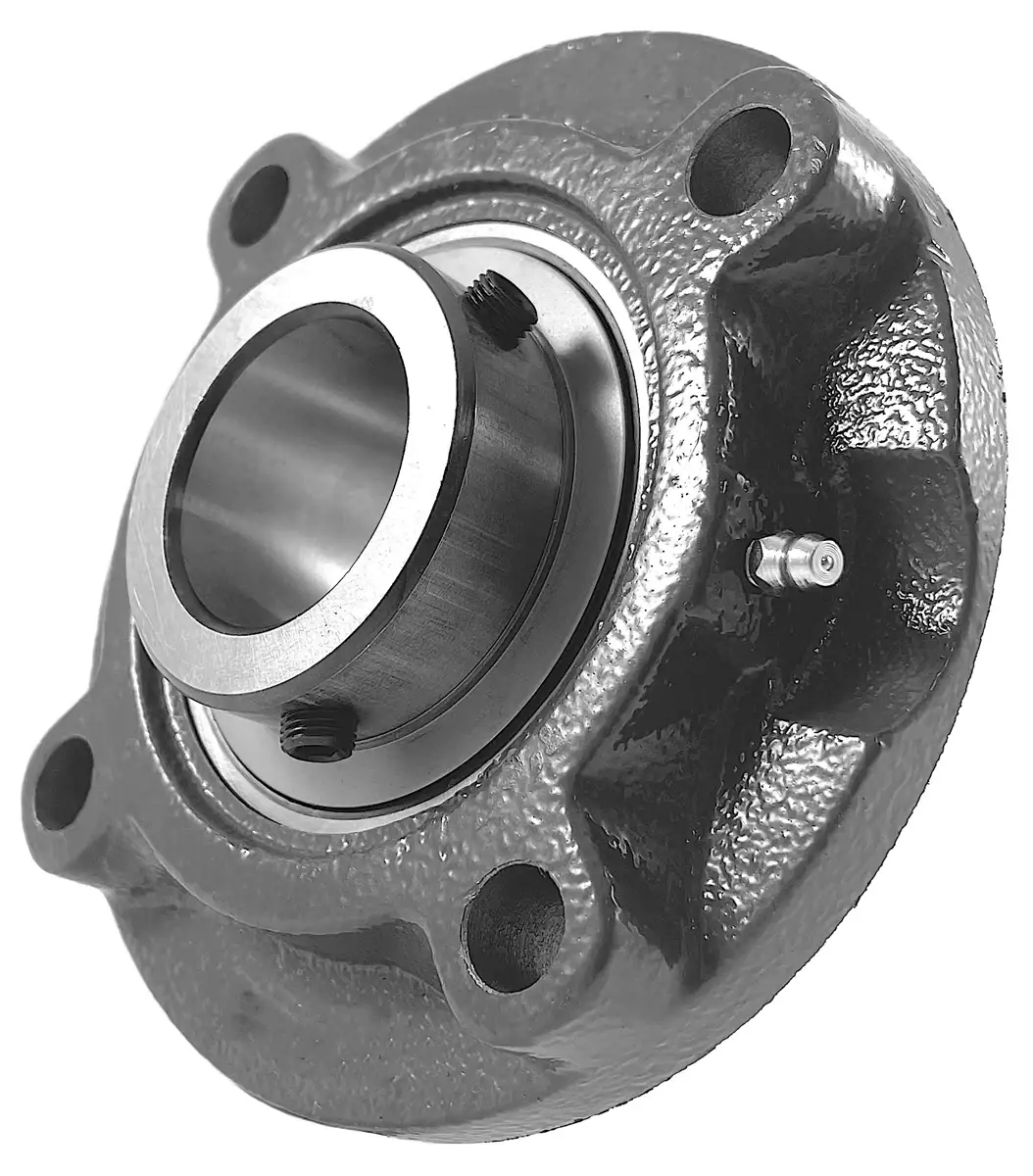

UCFCSX20 Bearing | 100mm 4-Bolt Flange Bearing

UCFCSX20 bearing is a 100mm bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 100mm shaft and has an inch based housing. UCFCSX20 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCSX20 bearing with a 100mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCSX20 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCSX20 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCSX20 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCSX20 bearings, and we will be happy to assist you!

UCFCSX20 Bearing Dimensions

• Part #: UCFCSX20
• Shaft Diameter (d): 100mm
• Dimension (A): 276.0mm
• Dimension (P): 238.0mm
• Dimension (E): 168.0mm
• Dimension (I): 22.0mm
• Dimension (S): 23.0mm
• Dimension (J): 28.0mm
• Dimension (K): 22.0mm
• Dimension (G): 66.0mm
• Dimension (F): 206.4mm
• Dimension (Z): 82.3mm
• Dimension (Bi): 117.5mm
• Dimension (N): 49.2mm
• Dimension (M): 60.3mm
• Bolt Used: M20
• Dynamic Load Rating (kN): 130.51
• Static Load Rating (kN): 102.94
• Bearing Insert: UCX 20
• Housing Number: FCSX 20
• Weight (kg): 18.5
