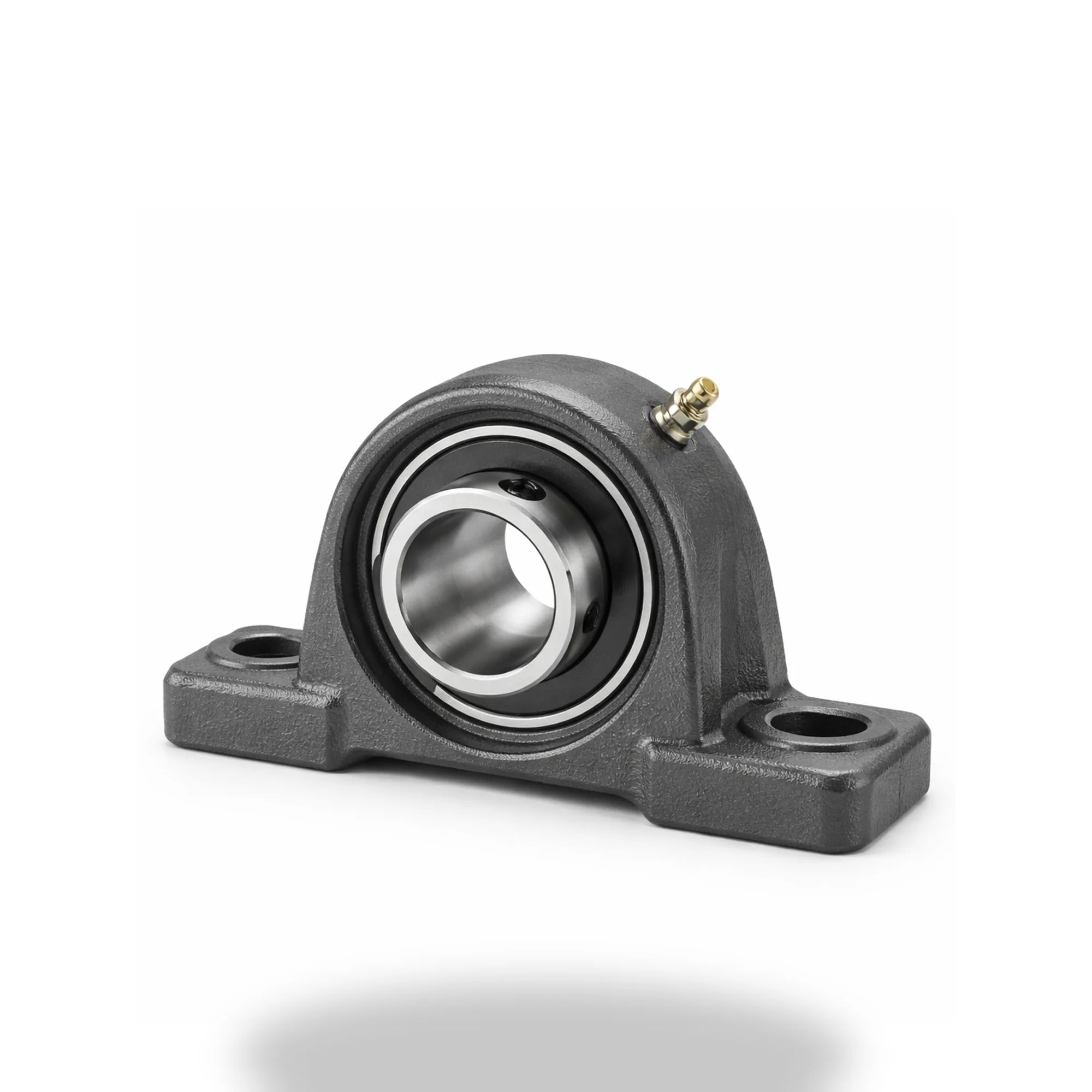

UCPX14 Bearing | 70mm 2-Bolt Pillow Block Bearing

UCPX14 bearing is a two-bolt medium-duty pillow block bearing with a 70mm bore. It utilizes set-screws for locking onto a 70mm shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our UCPX14 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCPX14 pillow block bearings are utilized in a wide range of applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this UCPX14 bearing is directly interchangeable with other brands. For further information or to get a quote on our UCPX14 bearings contact our customer support team and we will be happy to assist you!

UCPX14 Bearing Dimensions

• Part #: UCPX 14
• Shaft Diameter (d): 70mm
• Dimension (H): 88.9mm
• Dimension (A): 330.0mm
• Dimension (E): 229.0mm
• Dimension (B): 89.0mm
• Dimension (S2): 51.0mm
• Dimension (S1): 27.0mm
• Dimension (G): 35.0mm
• Dimension (W): 172.0mm
• Dimension (Bi): 77.8mm
• Dimension (N): 33.3mm
• Dimension (M): 44.5mm
• Bolt Used: M22
• Dynamic Load Rating (LBS): 66.61
• Static Load Rating (LBS): 47.85

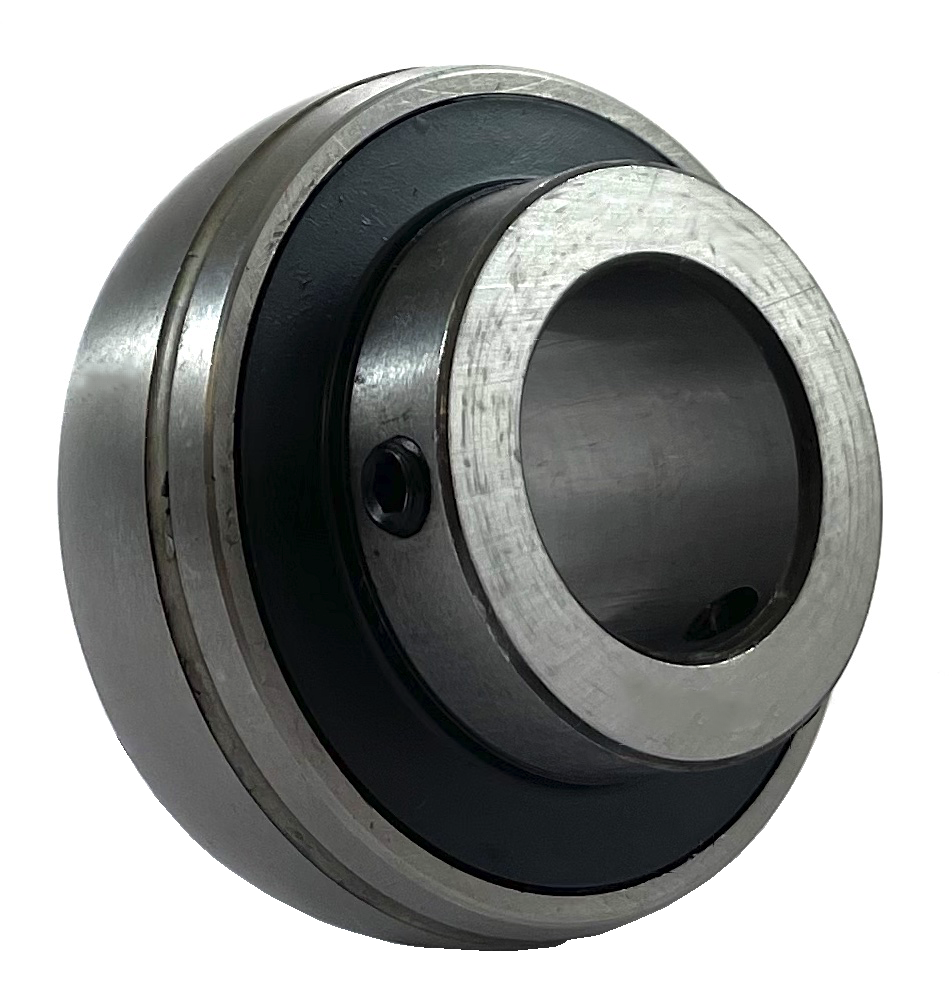

• Bearing Insert: UCX 14
• Housing Number: PX 14
• Weight (LBS): 9.5
