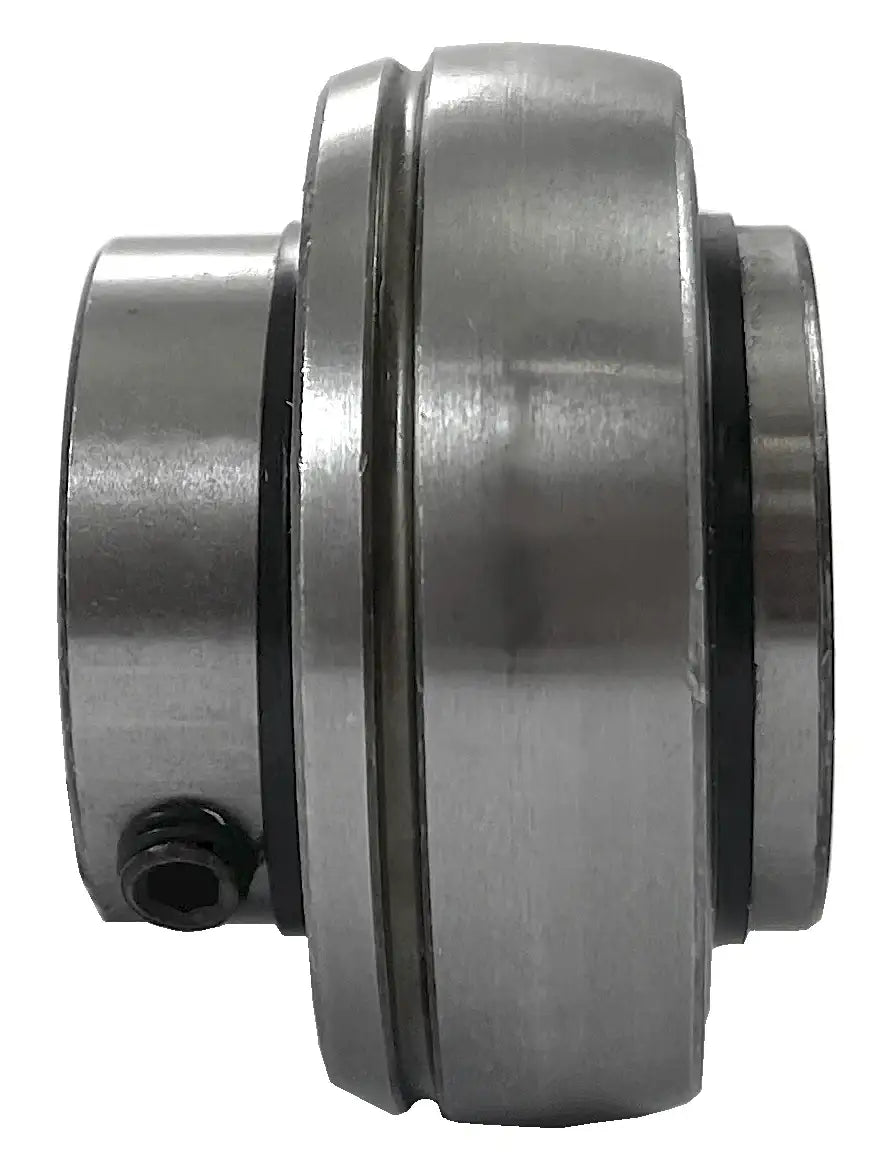

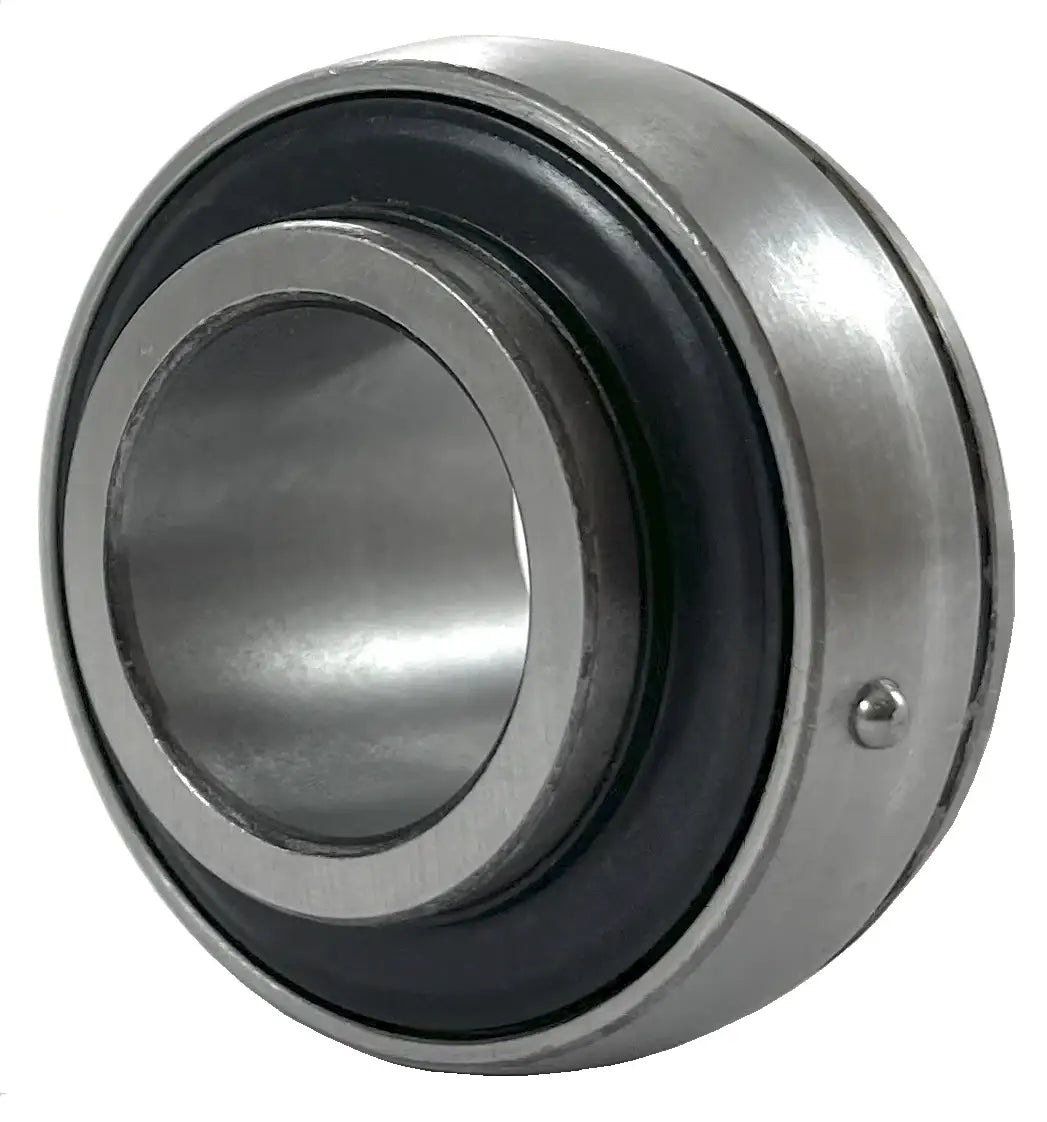

UCW201 Insert Bearing | 12mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$32.99
SKU: 2278-UCW-201-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UCW201 Insert Bearing | 12mm Insert Bearing Features
UCW201 Insert Bearing | 12mm Insert Bearing Specifications
UCW201 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilises set screws for securing a 12mm shaft. Our UCW201 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UCW201 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UCW201 bearings, contact our customer service and, we will be happy to assist you!
UCW201 Bearing Dimensions
- Part #: UCW 201
- Shaft Diameter (d): 12mm
- Setscrew Used: M5x0.8
- Dimension (D): 40.0mm
- Dimension (Bi): 27.4mm
- Dimension (Be): 14.0mm
- Dimension (N): 11.5mm
- Dimension (M): 15.9mm
- Dimension (G): 4.12mm
- Dimension (T): 4.1mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.1
- Part #: UCW 201
- Shaft Diameter (d): 12mm
- Setscrew Used: M5x0.8
- Dimension (D): 40.0mm
- Dimension (Bi): 27.4mm
- Dimension (Be): 14.0mm
- Dimension (N): 11.5mm
- Dimension (M): 15.9mm
- Dimension (G): 4.12mm
- Dimension (T): 4.1mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.1
