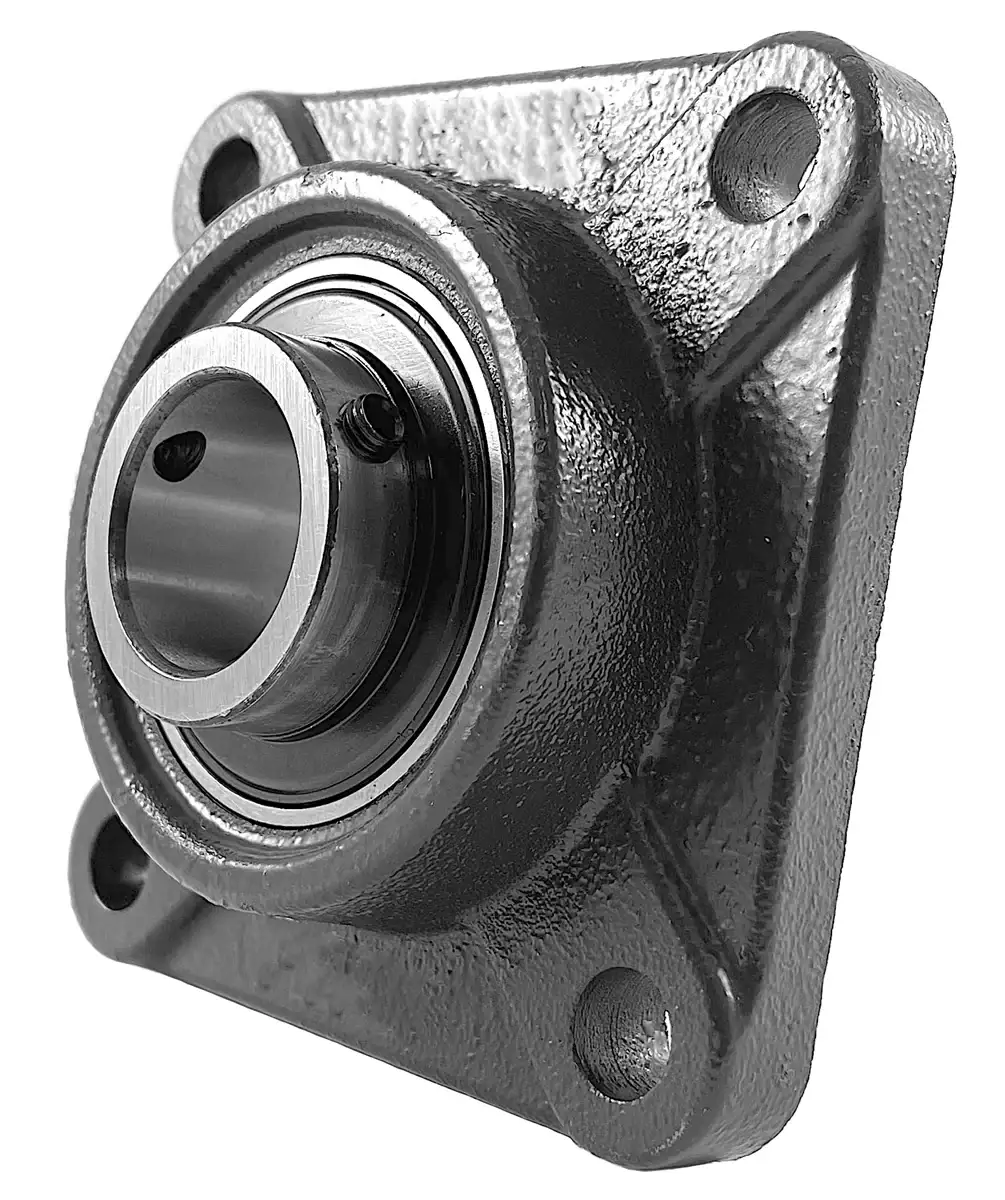

UCWF202-10 Bearing | 5/8" 4-Bolt Flange Bearing

UCWF202-10 bearing is a 5/8" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 5/8" shaft. UCWF202-10 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCWF202-10 bearing with a 5/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCWF202-10 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCWF202-10 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCWF202-10 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCWF202-10 bearings, and we will be happy to assist you!

UCWF202-10 Bearing Dimensions

• Part #: UCWF 202-10
• Shaft Diameter (d): 5/8"
• Dimension (A): 3.00"
• Dimension (E): 2.13"
• Dimension (I): 0.59"
• Dimension (G): 0.44"
• Dimension (L): 1.00"
• Dimension (S): 0.44"
• Dimension (Z): 1.22"
• Dimension (Bi): 1.0787"
• Dimension (N): 0.3937"
• Dimension (M): 0.6260"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 2,147
• Static Load Rating (LBS): 1,075
• Bearing Insert: UCW 202-10
• Housing Number: WF 203
• Weight (LBS): 1.3
