UE204 Bearing | 20mm Insert Bearing Features
UE204 Bearing | 20mm Insert Bearing Specifications

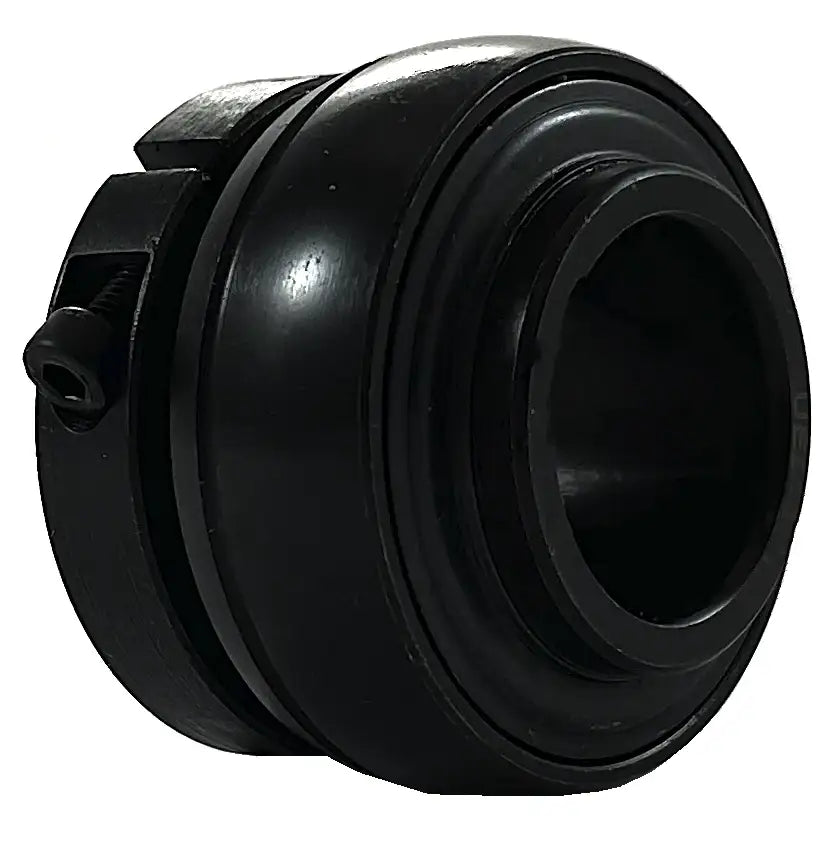

UE204 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 20mm shaft. Our UE204 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE204 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE204 bearings, contact our customer service and, we will be happy to assist you!
UE204 Bearing Dimensions
- Part #: UE 204
- Shaft Diameter (d): 20mm
- Setscrew Used: M4 x 0.7
- Dimension (D): 47.0mm
- Dimension (Bi): 33.0mm
- Dimension (Be): 17.0mm
- Dimension (N): 12.7mm
- Dimension (M): 18.3mm
- Dimension (W): 40.8mm
- Dimension (K): 9.5mm
- Dimension (T): 4.3mm
- Dynamic Load Rating (kN): 12.82
- Static Load Rating (kN): 6.65
- Weight (kN): 0.2
- Part #: UE 204
- Shaft Diameter (d): 20mm
- Setscrew Used: M4 x 0.7
- Dimension (D): 47.0mm
- Dimension (Bi): 33.0mm
- Dimension (Be): 17.0mm
- Dimension (N): 12.7mm
- Dimension (M): 18.3mm
- Dimension (W): 40.8mm
- Dimension (K): 9.5mm
- Dimension (T): 4.3mm
- Dynamic Load Rating (kN): 12.82
- Static Load Rating (kN): 6.65
- Weight (kN): 0.2
