Power Transmission > Bearings > Mounted Bearings > Insert Bearings

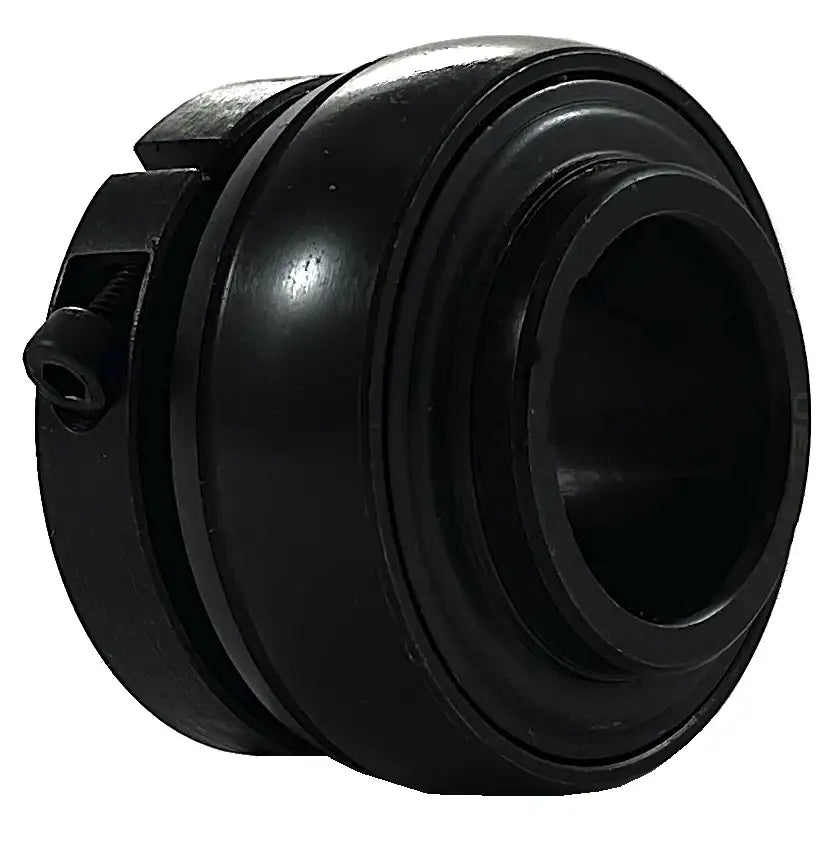

UE205-15 Bearing | 15/16" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UE-205-15-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UE205-15 Bearing | 15/16" Insert Bearing Features
UE205-15 Bearing | 15/16" Insert Bearing Specifications
UE205-15 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 15/16" shaft. Our UE205-15 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE205-15 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE205-15 bearings, contact our customer service and, we will be happy to assist you!
UE205-15 Bearing Dimensions
- Part #: UE 205-15
- Shaft Diameter (d): 15/16"
- Setscrew Used: 1/4-28
- Dimension (D): 2.0472"
- Dimension (Bi): 1.3937"
- Dimension (Be): 0.6693"
- Dimension (N): 0.5630"
- Dimension (M): 0.7795"
- Dimension (W): 1.929"
- Dimension (K): 0.374"
- Dimension (T): 0.1575"
- Dynamic Load Rating (LBS): 3,155
- Static Load Rating (LBS): 1,810
- Weight (LBS): 0.5
- Part #: UE 205-15
- Shaft Diameter (d): 15/16"
- Setscrew Used: 1/4-28
- Dimension (D): 2.0472"
- Dimension (Bi): 1.3937"
- Dimension (Be): 0.6693"
- Dimension (N): 0.5630"
- Dimension (M): 0.7795"
- Dimension (W): 1.929"
- Dimension (K): 0.374"
- Dimension (T): 0.1575"
- Dynamic Load Rating (LBS): 3,155
- Static Load Rating (LBS): 1,810
- Weight (LBS): 0.5
