UE205 Bearing | 25mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UE-205-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UE205 Bearing | 25mm Insert Bearing Features
UE205 Bearing | 25mm Insert Bearing Specifications

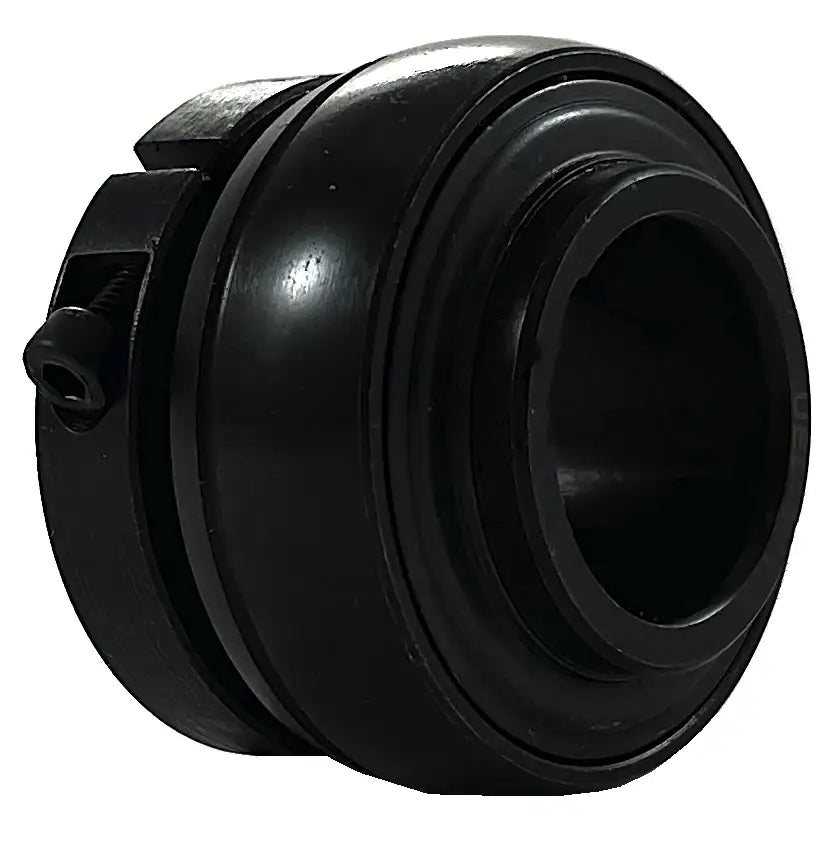

UE205 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 25mm shaft. Our UE205 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE205 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE205 bearings, contact our customer service and, we will be happy to assist you!
UE205 Bearing Dimensions
- Part #: UE 205
- Shaft Diameter (d): 25mm
- Setscrew Used: M4 x 0.7
- Dimension (D): 52.0mm
- Dimension (Bi): 35.4mm
- Dimension (Be): 17.0mm
- Dimension (N): 14.3mm
- Dimension (M): 19.8mm
- Dimension (W): 49.0mm
- Dimension (K): 9.5mm
- Dimension (T): 4.0mm
- Dynamic Load Rating (kN): 14.04
- Static Load Rating (kN): 8.05
- Weight (kN): 0.2
- Part #: UE 205
- Shaft Diameter (d): 25mm
- Setscrew Used: M4 x 0.7
- Dimension (D): 52.0mm
- Dimension (Bi): 35.4mm
- Dimension (Be): 17.0mm
- Dimension (N): 14.3mm
- Dimension (M): 19.8mm
- Dimension (W): 49.0mm
- Dimension (K): 9.5mm
- Dimension (T): 4.0mm
- Dynamic Load Rating (kN): 14.04
- Static Load Rating (kN): 8.05
- Weight (kN): 0.2
